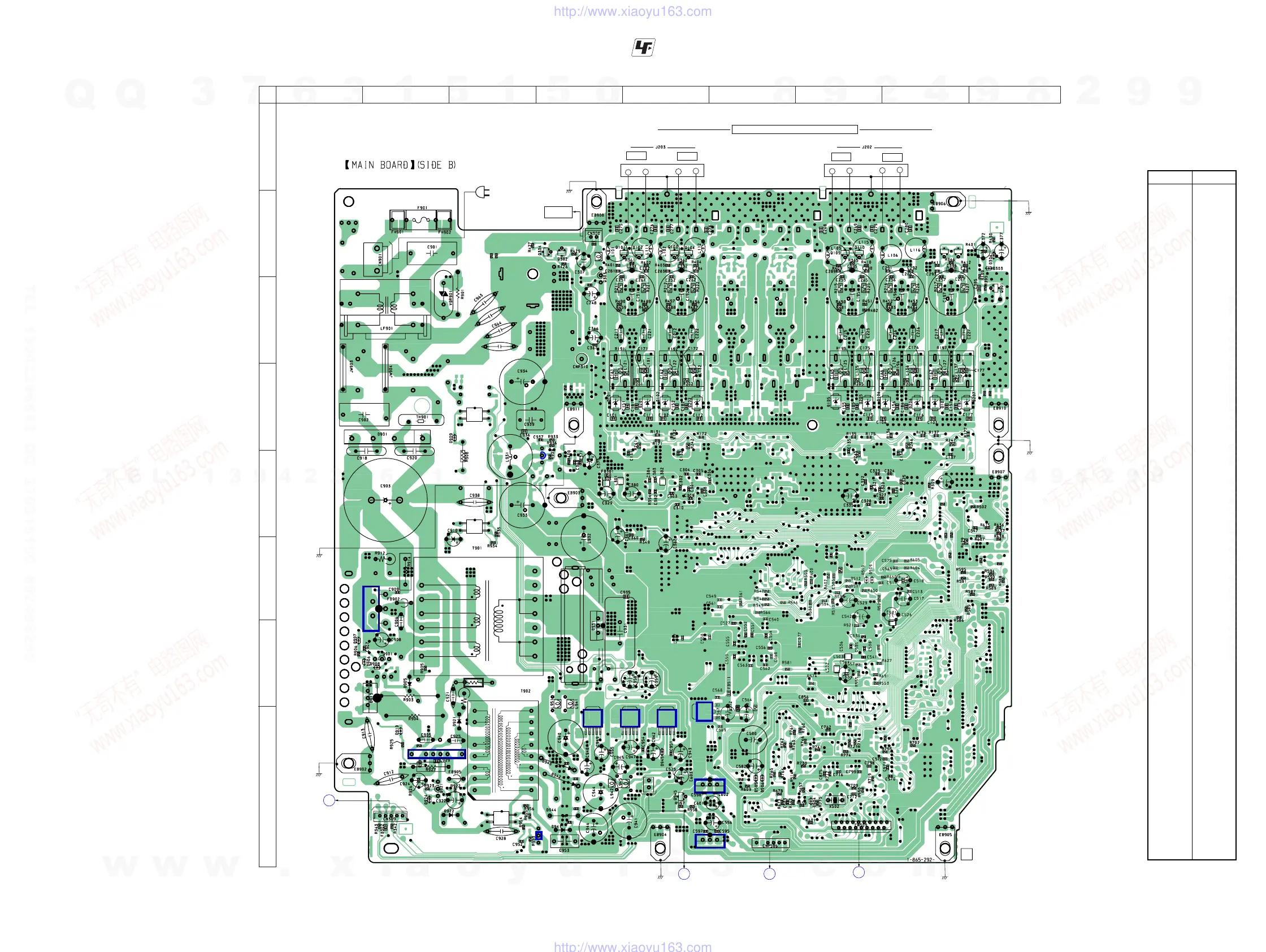

6-14. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) –
• See page 21 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D101 D-4
D102 D-5
D105 D-7
D106 D-7
D107 D-8
D201 D-5
D202 D-5
D205 D-7
D206 D-8
D207 D-9
D303 B-9
D304 B-9
D504 H-7
D505 H-6
D506 H-6
D509 F-7
D510 F-7
D901 D-2
D905 G-2
D906 G-2
D907 G-1
D908 G-2
D909 D-2
D910 H-2
D913 G-2
D921 H-3
D922 H-2
D924 H-2
D926 H-2
D931 G-4
D941 H-4
D942 H-4
D943 H-4
D944 H-4
D945 H-5
IC508 G-5
IC515 H-5
IC516 H-5
IC901 F-1
IC921 H-3
IC931 E-4
IC941 G-5
IC942 G-5
IC943 G-4
IC951 H-4
PC901 E-3
PC902 H-3
PC903 D-3
Q101 B-4
Q102 B-5
Q103 B-5
Q104 B-5
Q109 B-7
Q110 B-7
Q111 B-8
Q112 B-8
Q301 C-9
Q302 B-4
Q303 B-4
Q304 B-4
Q901 G-2
Q921 H-2
Q945 H-5
:Uses unleaded solder.
