HCD-DZ770W
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
E3 : 240V AC area in E model
KR : Korean model
SP : Singapore model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

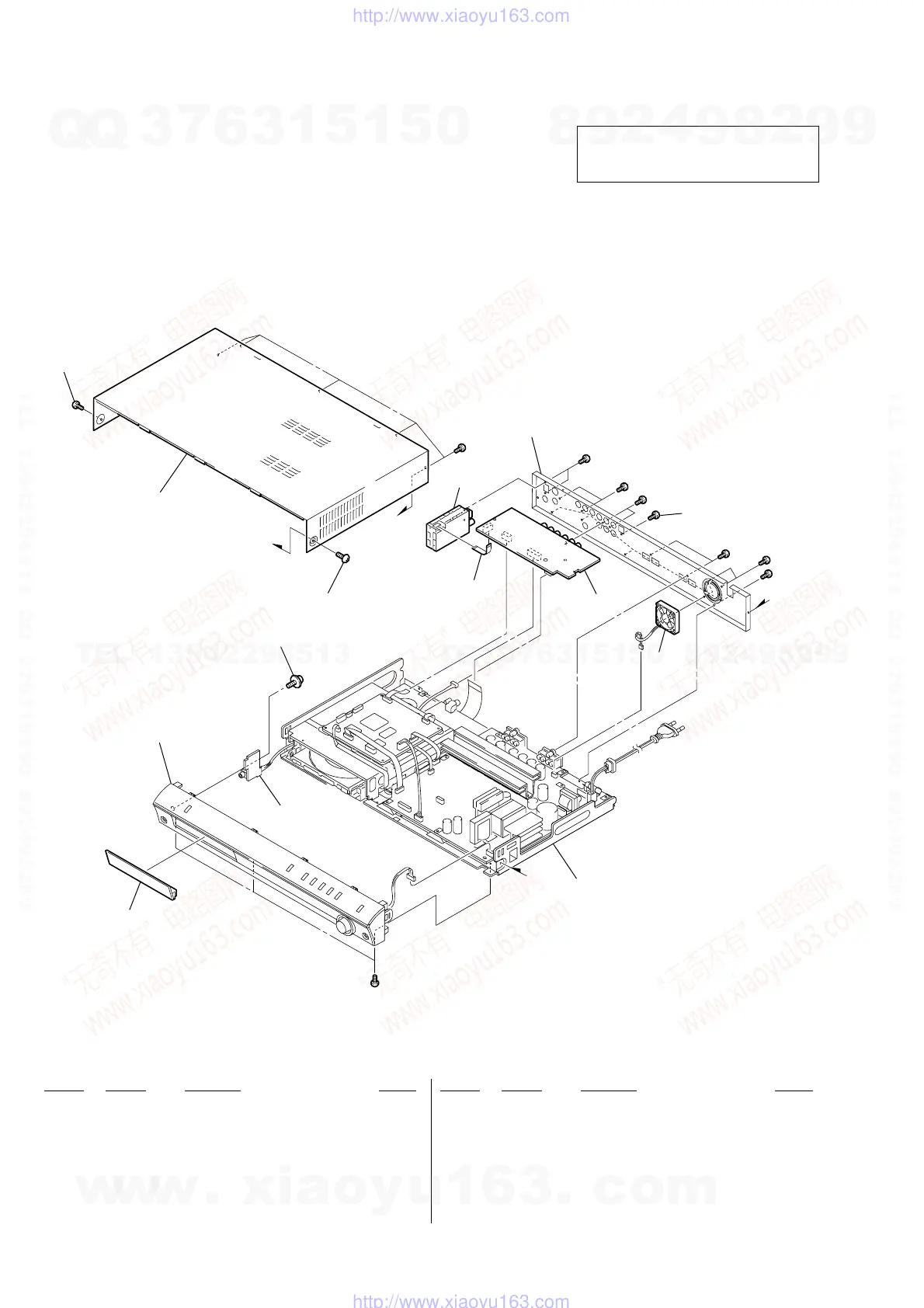

7-1. OVERALL SECTION
1 X-2025-254-1 DVD LID ASSY (KR)
2 2-546-005-01 CASE
3 3-363-099-51 SCREW (CASE 3 TP2)
4 A-1074-641-A TUNER UNIT (DTP-005) (EXCEPT KR)
4 A-1074-643-A TUNER UNIT (DTP-005) (KR)
5 1-787-331-11 FAN, D.C.
6 A-1116-260-A I/O BOARD, COMPLETE (EXCEPT KR)
6 A-1124-464-A I/O BOARD, COMPLETE (KR)
7 1-828-952-11 WIRE (FLAT TYPE) (9 CORE)
8 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
9 3-087-053-01 +BVTP2.6 (3CR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
b
a
b
a
