Sony HCD-DZ830W - DVD Mechanism Deck (CDM85-DVBU102); Tray

25
HCD-DZ830W/DZ850KW

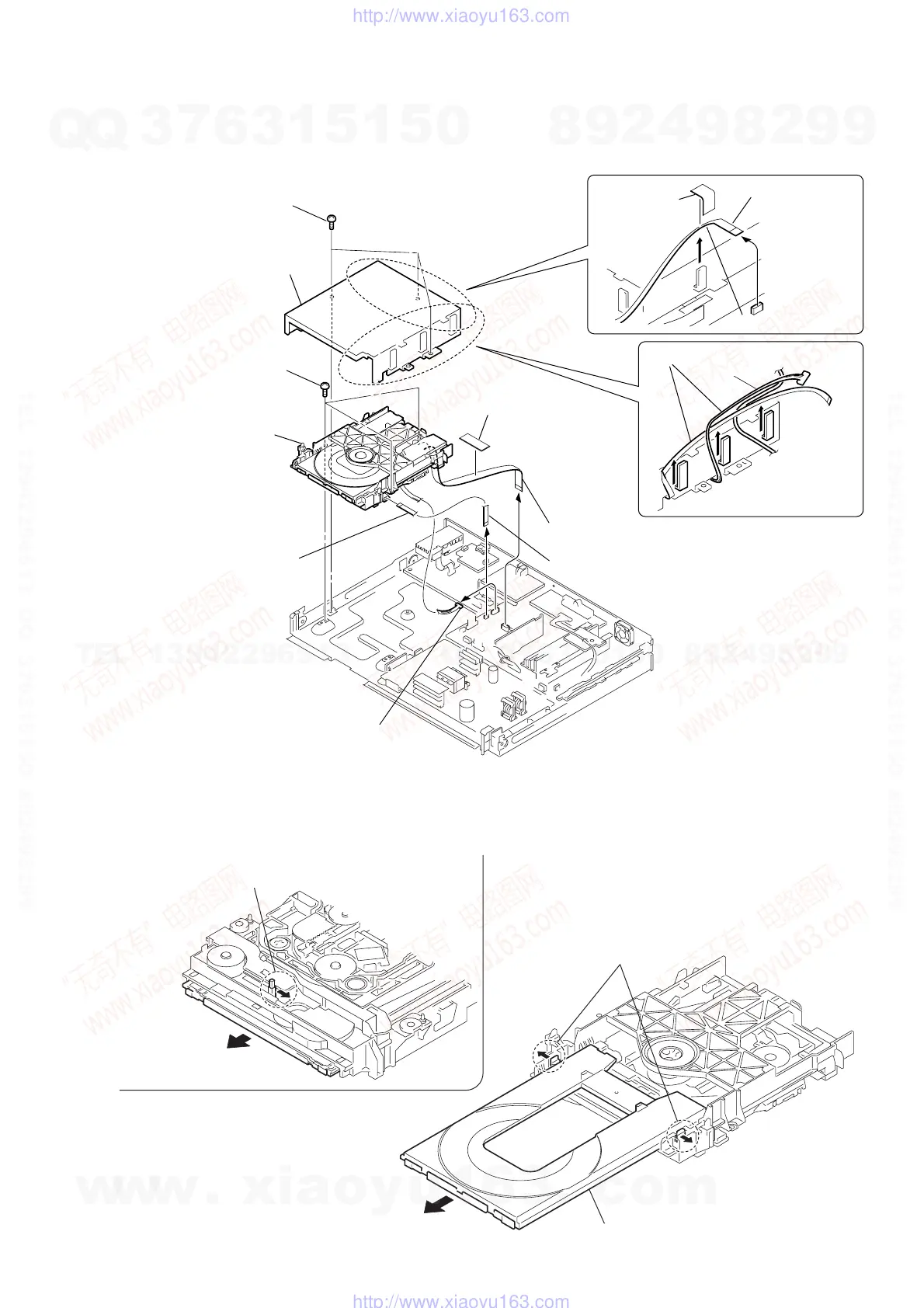

3-14. DVD MECHANISM DECK (CDM85-DVBU102)
• Abbreviation
SP : Singapore model
q; cover (MD)
9 three screws (+BV 3 × 6)
qa three screws (+BV 3 × 6)
7 connector 6p (CN1201)
8 Remove the wire and harnesses.
3 Remove the wire.
qd DVD mechanism deck
(CDM85-DVBU102)
5 wire (flat type) 24core
(CN1101)
6 wire (flat type) 5core
(CN1202)
qs wire (flat type) 5core
2 unweaved
cloth
4 unweaved
cloth
1 wire (flat type)
5core (CN307)
4
2
3
two claws
5 tray
1 Move the chuck cam
in the direction of the arrow.
bottom side
3-15. TRAY
