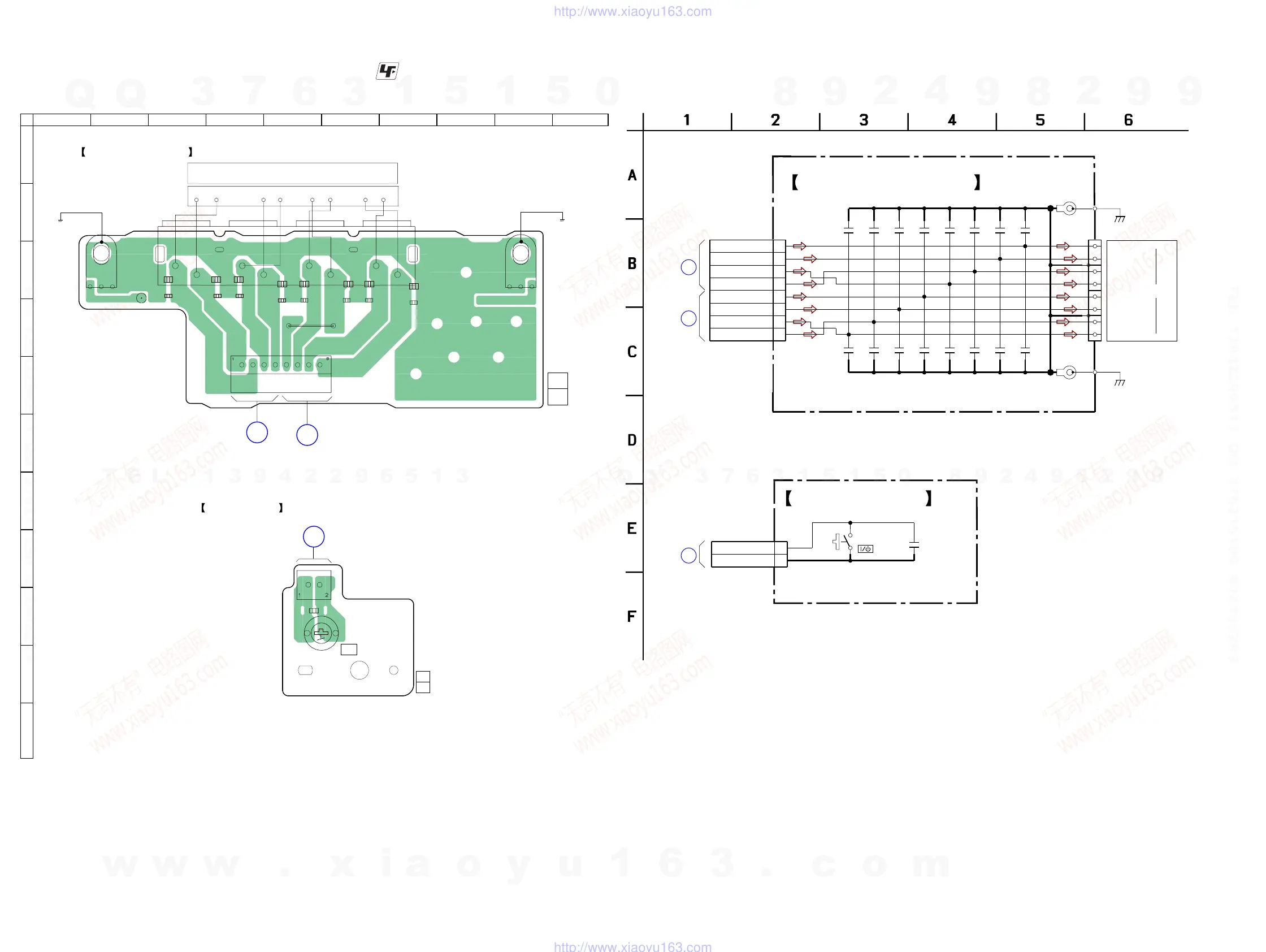

6-32. PRINTED WIRING BOARDS – SPEAKER, P-SW BOARD –
• See page 35 for Circuit Boards Location.
:Uses unleaded solder.
6-33. SCHEMATIC DIAGRAM – SPEAKER, P-SW BOARD –
CN804
S801
SPEAKER BOARD
1-872-109-
12
(12)
P-SW BOARD
1-872-107-
12
(12)
TB301
CN303
ET301
ET302
C301
C302
C303
C304
C305
C306
C307
C308
C309C310
C311
C312
C313
C314
JW301
C315
C316
C851
+
–
+
–
+
–
+
–
FRONT R FRONT L
SPEAKER
SUR R SUR L
H
MAIN BOARD
CN3100
(Page 41)
I
MAIN BOARD
CN3200
(Page 41)
45
(CHASSIS)
O
JACK BOARD
CN809
(Page 60)
I/1
(CHASSIS)
23456789101
A
B
C
D
E
F
G
H
I
J
K
H
MAIN
BOARD
(7/10)
CN3100
(Page 48)
I
MAIN
BOARD
(6/10)
CN3200
(Page 47)
O
JACK
BOARD
CN809
(Page 62)
E
ET301
E
ET302
0.01
C301
0.01
C302
0.01
C303
0.01
C304
0.01
C305
0.01
C306
0.01
C307
0.01
C308
C309
C310C311C312C313C314C315
0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001
C316
1
2
3
4
5
6
7
8
8P
CN303
FR+
FR-
FL-
FL+
SR+
SR-
SL-
SL+
TB301
1 FR+
2 FR-
3 FL+
4 FL-
5 SR+
6 SR-
7 SL+
8 SL-
9
10
TP301
TP302
S801
100p
C851
1
2
2P
CN804
GND
P-SW
SPEAKER BOARD
(CHASSIS)
(CHASSIS)
P-SW BOARD
FRONT R
FRONT L
SUR R
SPEAKER
SUR L
