HCD-DZ830W/DZ850KW
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-889-990-01 KNOB (VOL)
52 2-889-985-31 WINDOW, INDICATION (HM) (DZ850KW)
52 2-889-985-41 WINDOW, INDICATION (HM) (DZ830W)
53 2-889-988-01 BUTTON (CAP)
54 2-889-984-11 PANEL, FRONT (DZ850KW)
54 2-889-984-21 PANEL, FRONT (DZ830W)
55 2-889-992-01 FILTER, COLOR
56 2-889-989-01 BUTTON (BASE) (EXCEPT KR, MX, TW)
56 2-889-989-11 BUTTON (BASE) (KR, MX, TW)
57 3-087-053-11 +BVTP2.6 (3CR)
58 A-1231-241-A JACK BOARD, COMPLETE (DZ830W)
58 A-1231-263-A JACK BOARD, COMPLETE (DZ850KW)
59 1-828-325-11 WIRE (FLAT TYPE) (13 CORE)
60 A-1222-498-A FL BOARD, COMPLETE
61 1-828-374-51 WIRE (FLAT TYPE) (21 CORE)
62 3-531-576-01 RIVET
63 2-889-986-01 ORNAMENT

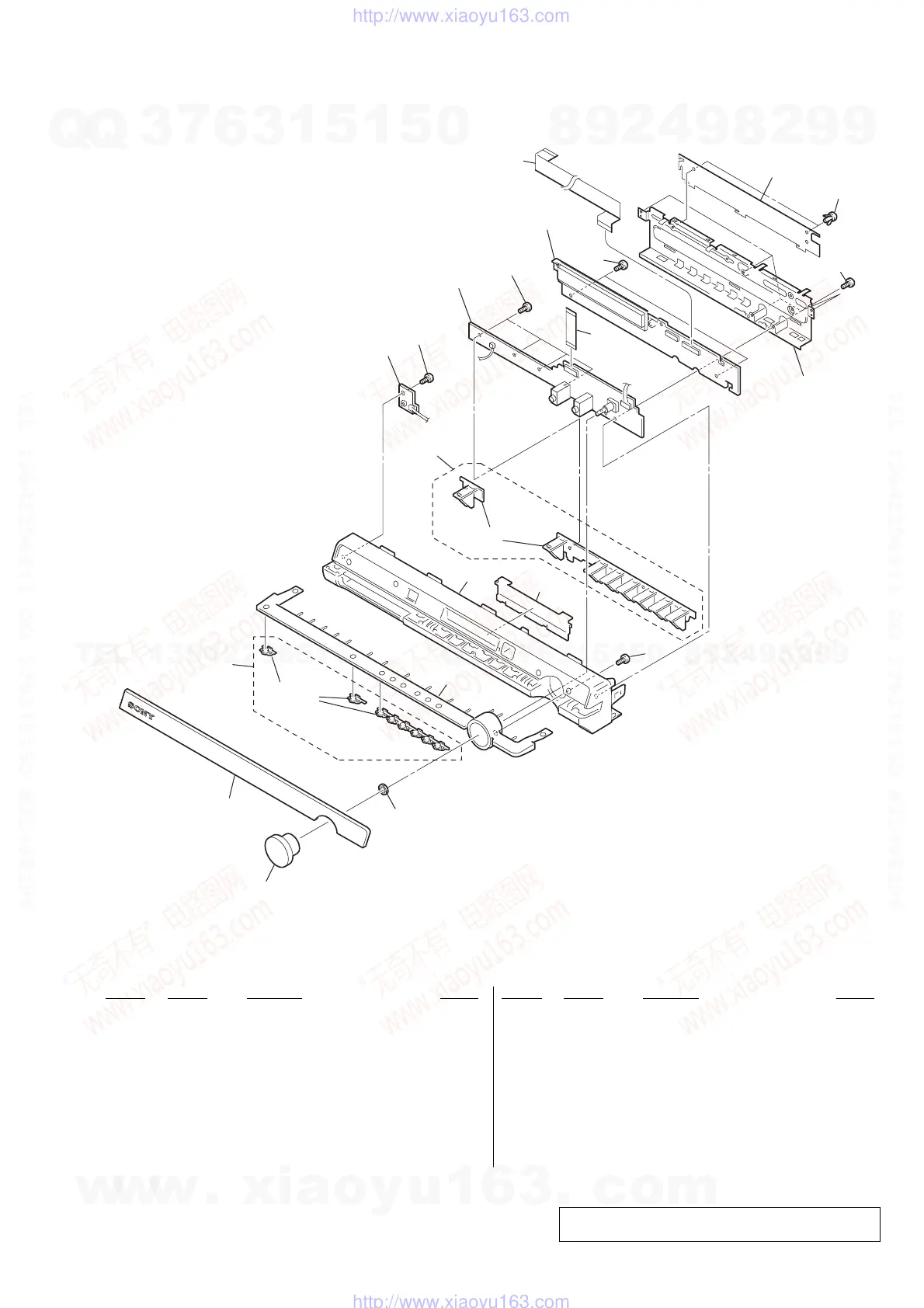

7-2. FRONT PANEL SECTION
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
57
57
60
58
56
52
55
57
54
51
not
supplied
not
supplied
including
S800
not
supplied
57
57
59
61
not
supplied
62
63
53
not
supplied
