Sony HCD-EC79 - Main Board Removal; Front Panel Block Disassembly

HCD-EC69/EC79/EC99
10

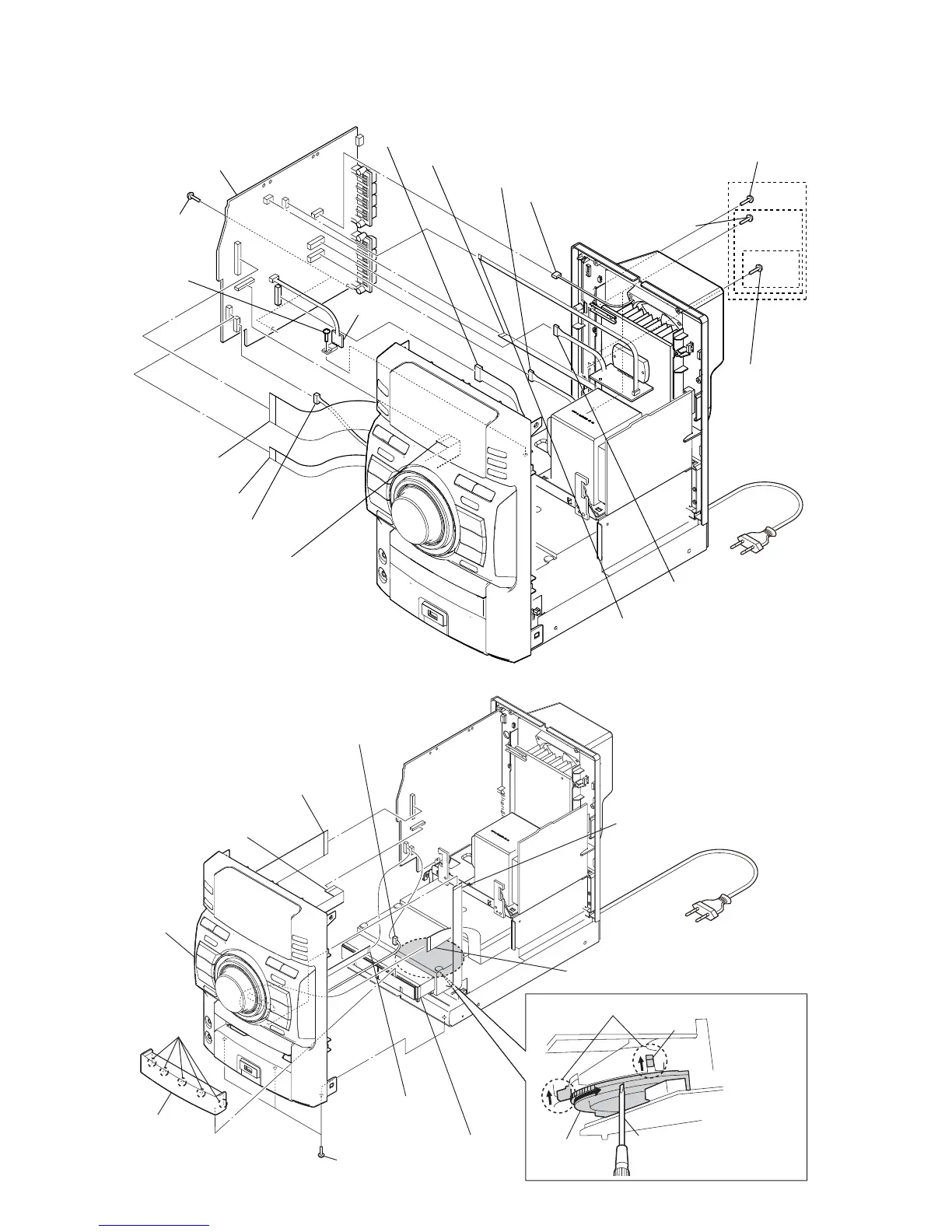

3-4. MAIN BOARD
3-5. FRONT PANEL BLOCK
7
flexible flat cable
(9 core) (CN605)
5
flexible flat cable (29 core)
(CN610)
6
flexible flat cable (21 core)
(CN608)
qs
front panel
block
9
flexible flat cable (13 core)
(CN302)
8
flexible flat cable (29 core)
(CN306)
qa
three screws
(BVTP3
u
8)
2
Pull the tray by hand.
q;
connector (CN613)
4
door (CD)
3
five claws
1
Turn a gear by a driver
till a lever rises up
to the position of the figure.
lever
state of opening the CD tray
gear
9
fan motor connector (CN601)
7
connector (EC79/EC99: CN632)
8
connector
(EC69/EC99: CN633)
4
flexible flat cable (5 core) (CN603)
qf
MAIN board
(with REG board)
qd
two screws
(BVTP3
u
6)
qs
screw
(BVTP3
u
10)
1
flexible flat cable (27 core)
(CN607)
2
flexible flat cable (9 core)
(CN605)
3
flexible flat cable (21 core)
(CN608)
6
connector (EC69/EC79: CN604, EC99: CN654)
q;
connector
(CN613)
REG board
5
flexible flat cable (7 core)
(EC99: CN643)
qa
two screws
(BVTP3
u
10)
(EC69)
qa
four screws
(BVTP3
u
10) (EC79)
qa
five screws
(BVTP3
u
10) (EC99)
(EC99)
(EC79)
(EC69)
