Sony HCD-EC79 - Back Panel Block Removal; CD Mechanism Block Disassembly

HCD-EC69/EC79/EC99
11

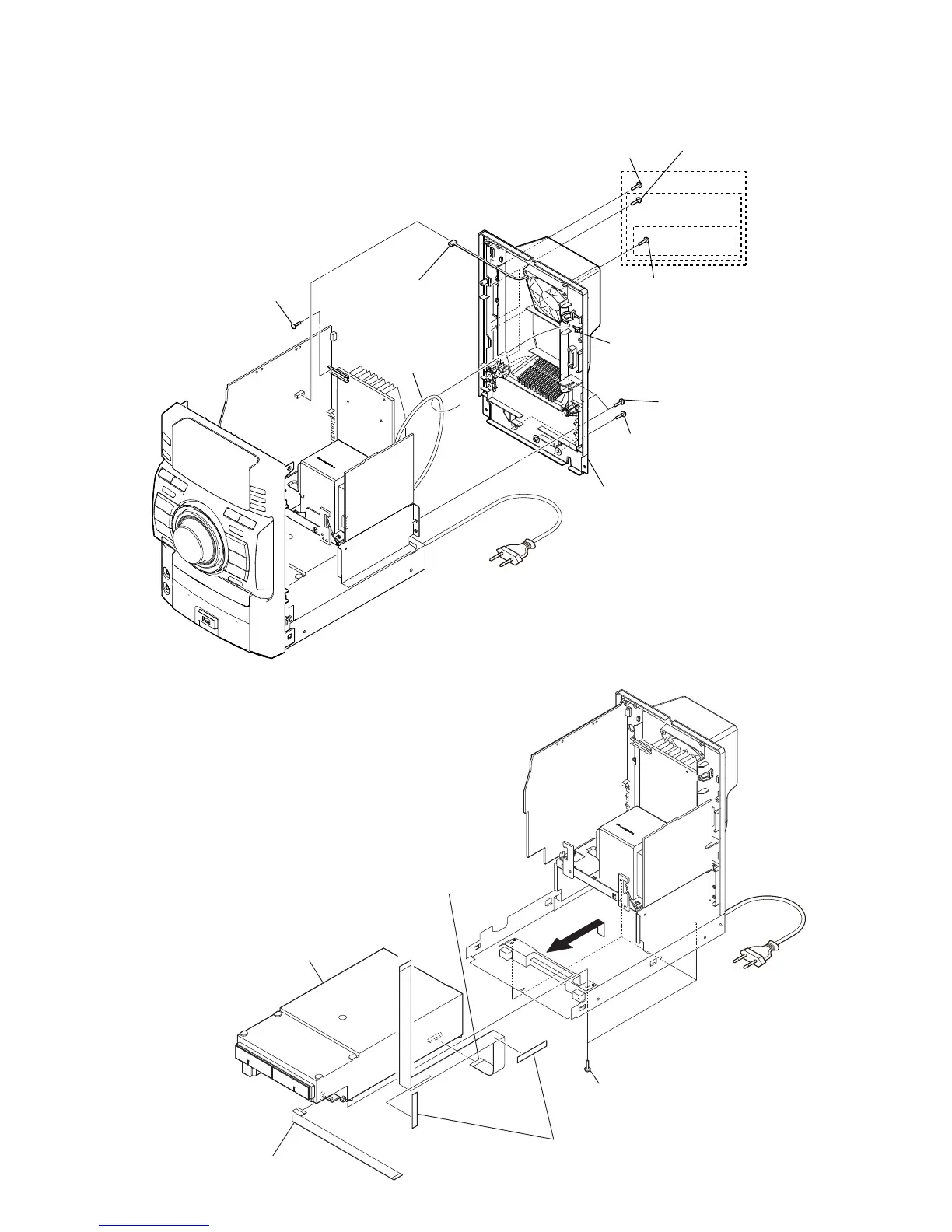

3-6. BACK PANEL BLOCK
5
four screws
(BVTP3
u
10)
6
two screws
(BVTP3
u
10)
3
screw
(BVTP3
u
10)
1
fan motor connector
(CN601)
7
back panel block
power cord
2
Cut the clamp.
Note: Please do not forget fixation by clamping
when you install the power cord.
(EC99)
(EC79)
(EC69)
4
two screws
(BVTP3
u
10)
(EC69)
4
four screws
(BVTP3
u
10) (EC79)
4
five screws
(BVTP3
u
10) (EC99)
3-7. CD MECHANISM BLOCK

four screws
(BVTP3
×
10)

two tapes

flexible flat cable (21 core)
(CN201)

flexible flat cable (13 core)

CD mechanism block

Note: When installing the CD mechanism section,
install two tapes for prevention of noise.
