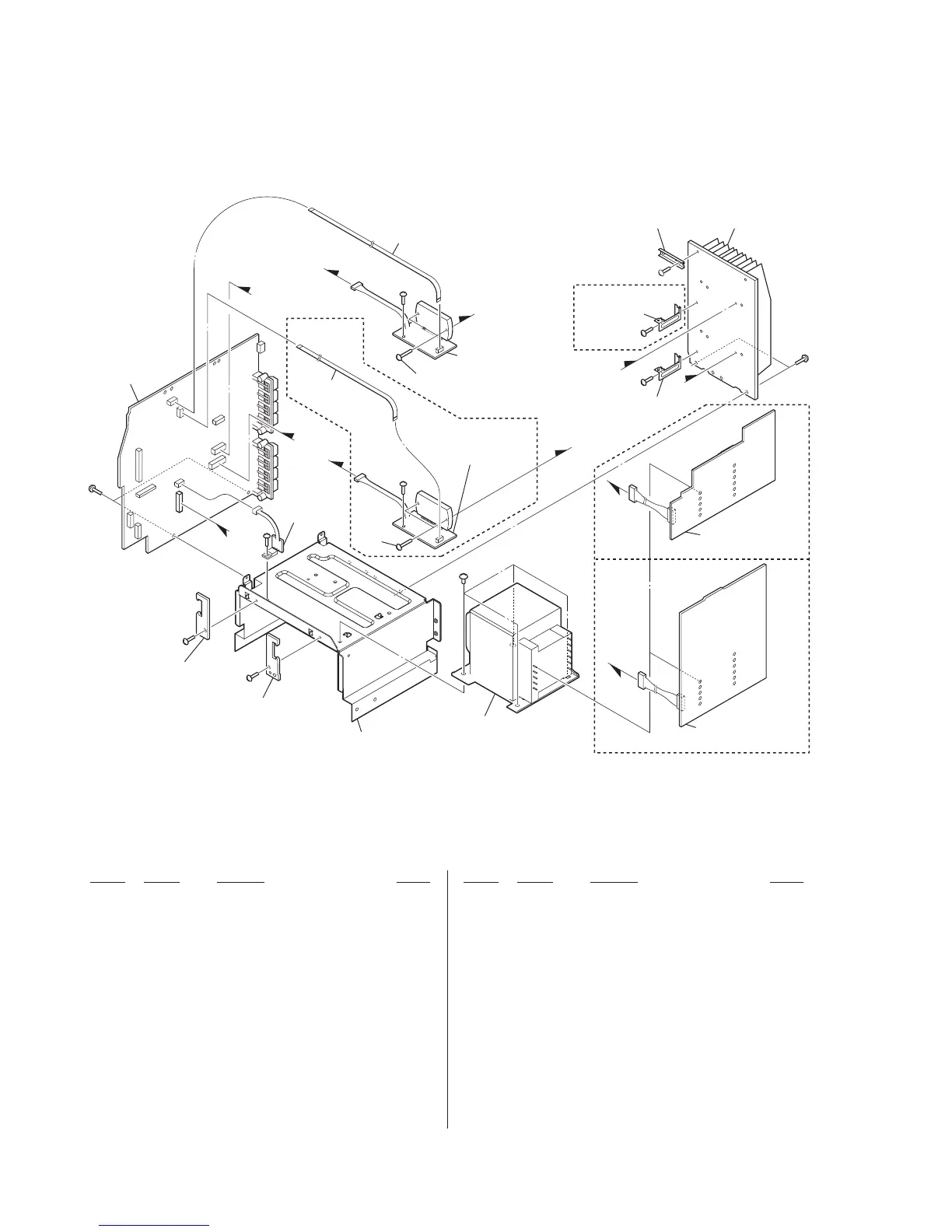

Sony HCD-EC79 - Main Section Exploded View

48
HCD-EC69/EC79/EC99
7-4. MAIN SECTION
151 A-1599-413-A MAIN BOARD, COMPLETE (EC99: AEP, RU)
151 A-1599-449-A MAIN BOARD, COMPLETE (EC79: AEP)
151 A-1599-465-A MAIN BOARD, COMPLETE (EC69: AEP, RU)
151 A-1702-676-A MAIN BOARD, COMPLETE (EC69: E2, E51, AR)
151 A-1706-659-A MAIN BOARD, COMPLETE (EC99: E2, E51, AR)
151 A-1706-661-A MAIN BOARD, COMPLETE (EC79: E2, E51, AR)
151 A-1718-681-A MAIN BOARD, COMPLETE (EC99: MX)
151 A-1718-683-A MAIN BOARD, COMPLETE (EC79: MX)
151 A-1718-685-A MAIN BOARD, COMPLETE (EC69: MX)
152 1-835-335-21 CABLE, FLEXIBLE FLAT (7 CORE) (EC99)
153 1-831-744-21 CABLE, FLEXIBLE FLAT (5 CORE) (EC69/EC79)
153 1-836-765-21 CABLE, FLEXIBLE FLAT (5 CORE) (EC99)
154 3-905-609-31 SCREW (TRANSISTOR)
0 PT004 1-445-117-11 TRANSFORMER, POWER (EC69: AEP, RU)
0 PT004 1-445-338-11 TRANSFORMER, POWER (EC69: MX)
0 PT004 1-445-346-11 TRANSFORMER, POWER (EC69: AR)
0 PT005 1-445-567-11 TRANSFORMER, POWER (EC99: AEP, RU)
0 PT005 1-445-568-11 TRANSFORMER, POWER (EC79: AR)
0 PT005 1-445-570-11 TRANSFORMER, POWER (EC99: AR)
0 PT005 1-445-571-11 TRANSFORMER, POWER (EC79: MX)
0 PT005 1-445-575-11 TRANSFORMER, POWER (EC99: MX)
0 PT005 1-445-624-11 TRANSFORMER, POWER (EC79: AEP)
0 PT054 1-445-346-11 TRANSFORMER, POWER (EC69: E2, E51)
0 PT055 1-445-568-11 TRANSFORMER, POWER (EC79: E2, E51)
0 PT055 1-445-570-11 TRANSFORMER, POWER (EC99: E2, E51)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-880-09 SCREW +BVTT 4X6 (S)
#4 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
152
154
not supplied
#4
#1
#1
#1
#1
#1
#1
#1
#1
#1
(PT004/PT005: AEP, RU, MX, AR)
(PT054/PT055: E2, E51)
#3
not supplied
not supplied
not supplied
not supplied
not supplied
(PT-SWITCH board)
not supplied
(2CH-4CH AMP board)
not supplied
(HOLD board)
not supplied
(REG board)
not supplied
(HOLD (PT) board)
not supplied
(3CH AMP board)
not supplied
(PT-SINGLE board)
153
154
(EC99)
(EC99)
(AEP, RU,
MX, AR)
(E2, E51)
A
D
E
E
B
B
C
C
C
E
:EC69/EC79
D
:EC99
A
:EC69/EC99
B
:EC79
Ver. 1.2
