Sony HCD-EC79 - Front Panel Section Exploded View

46
HCD-EC69/EC79/EC99

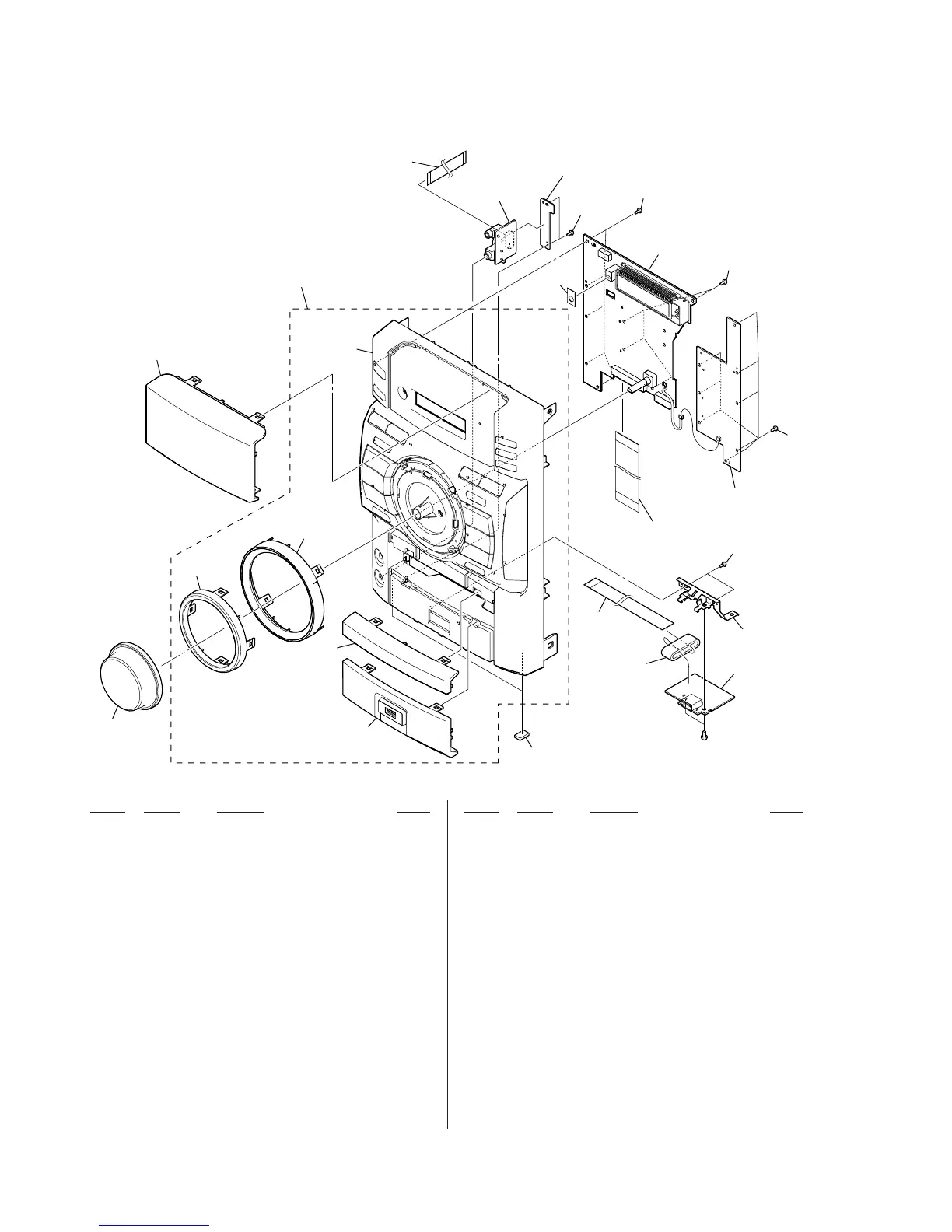

7-2. FRONT PANEL SECTION
51 4-120-663-01 KNOB (VOL)
52 4-120-660-01 PLATE, ORNAMENT (LO)
53 4-120-659-01 PLATE, ORNAMENT (UP)
54 4-120-658-01 RING (VOL) (EC79/EC99)
54 4-120-658-21 RING (VOL) (EC69)
55 4-120-657-01 RING, ORNAMENT
56 4-124-519-01 WINDOW (EC99)
56 4-124-519-21 WINDOW (EC79)
56 4-124-519-41 WINDOW (EC69)
57 A-1616-652-A PANEL ASSY, FRONT (EC99: EXCEPT MX)
57 A-1616-654-A PANEL ASSY, FRONT (EC79: EXCEPT MX)
57 A-1616-656-A PANEL ASSY, FRONT (EC69: E2, E51, AR)
57 A-1705-456-A PANEL ASSY, FRONT (EC69: AEP, RU)
57 A-1730-498-A PANEL ASSY, FRONT (EC99: MX)
57 A-1730-499-A PANEL ASSY, FRONT (EC79: MX)
57 A-1730-500-A PANEL ASSY, FRONT (EC69: MX)
58 1-833-054-21 CABLE, FLEXIBLE FLAT (9 CORE)
59 3-087-053-01 +BVTP2.6 (3CR)
60 A-1599-417-A PANEL BOARD, COMPLETE (EC99: AEP)
60 A-1559-436-A PANEL BOARD, COMPLETE (EC99: RU)
60 A-1599-439-A PANEL BOARD, COMPLETE (EC99: E51, MX, AR)
60 A-1599-446-A PANEL BOARD, COMPLETE (EC99: E2)
60 A-1599-451-A PANEL BOARD, COMPLETE (EC79: AEP)
60 A-1599-458-A PANEL BOARD, COMPLETE (EC79: E51, MX, AR)
60 A-1599-462-A PANEL BOARD, COMPLETE (EC79: E2)
60 A-1599-467-A PANEL BOARD, COMPLETE (EC69: AEP)
60 A-1599-471-A PANEL BOARD, COMPLETE (EC69: RU)
60 A-1599-474-A PANEL BOARD, COMPLETE (EC69: E51, MX, AR)
60 A-1599-478-A PANEL BOARD, COMPLETE (EC69: E2)
61 3-297-298-01 SHEET (RM)
62 1-832-917-21 CABLE, FLEXIBLE FLAT (29 CORE)
63 A-1599-426-A USB BOARD, COMPLETE
64 1-457-413-11 CORE, FERRITE
65 1-836-764-21 CABLE, FLEXIBLE FLAT (13 CORE)
66 4-225-252-01 CUSHION (FOOT)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
