Sony HCD-EC79 - Chassis Section Exploded View

47
HCD-EC69/EC79/EC99

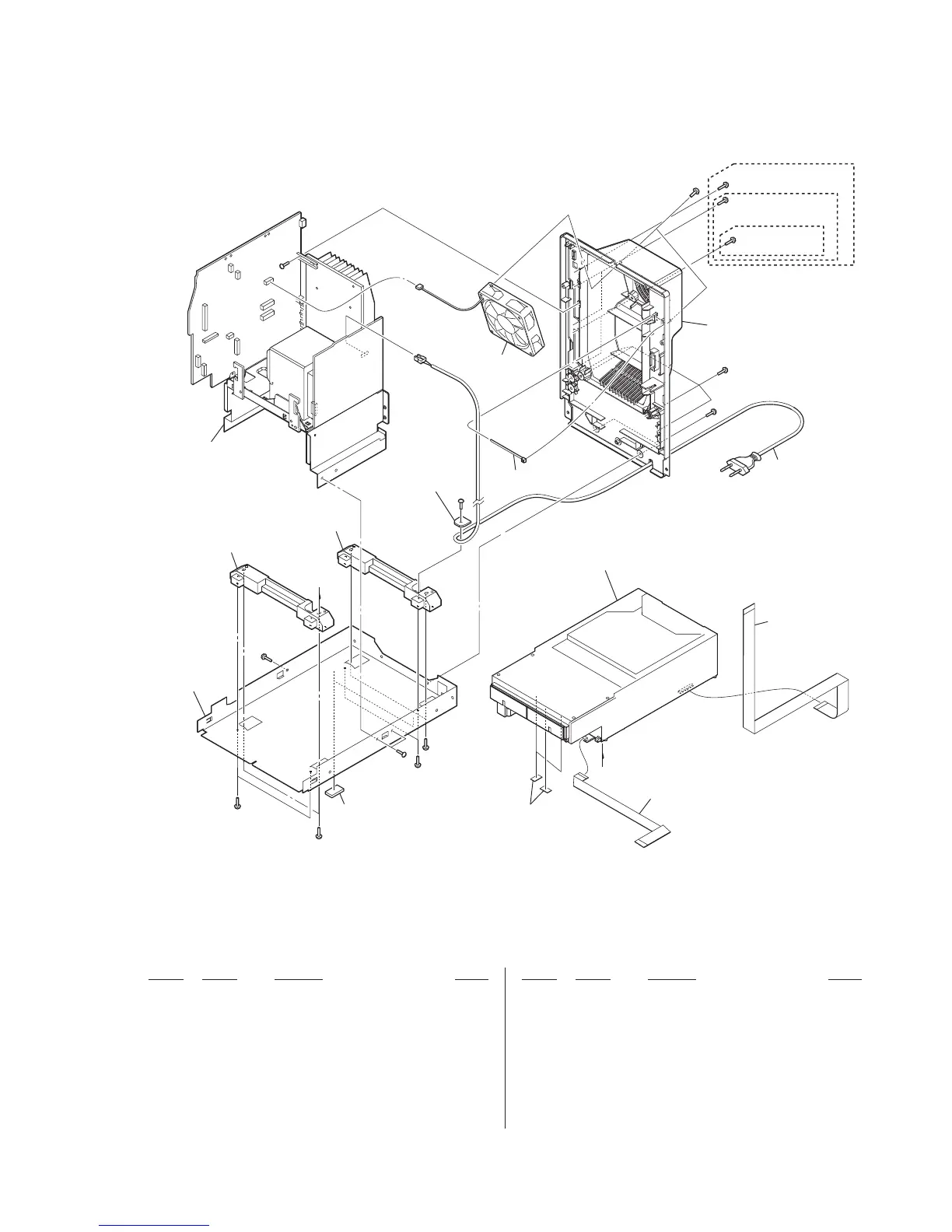

7-3. CHASSIS SECTION
101 1-832-838-21 CABLE, FLEXIBLE FLAT (13 CORE)
102 4-225-252-01 CUSHION (FOOT)
103 3-701-748-00 CLAMP (EXCEPT EC69: RU)
103 4-147-421-01 HOLDER, WIRE (EC69: RU)
104 4-124-828-02 PANEL, BACK (EC99: AEP, RU, MX, AR)
104 4-124-828-12 PANEL, BACK (EC99: E2, E51)
104 4-124-828-22 PANEL, BACK (EC79: E2, E51)
104 4-124-828-32 PANEL, BACK (EC69: E2, E51)
104 4-124-828-42 PANEL, BACK (EC79: AEP, MX, AR)
104 4-124-828-52 PANEL, BACK (EC69: AEP, RU, MX, AR)
0 105 1-829-387-11 CORD, POWER (AR)
0 105 1-834-965-22 CORD, POWER (MX)
0 105 1-834-966-41 POWER-SUPPLY CORD (AEP, RU, E2, E51)
106 1-834-181-21 CABLE, FLEXIBLE FLAT (21 CORE)
M601 1-787-319-12 FAN, DC (EC69)
M601 1-787-344-11 FAN, DC (EC79/EC99)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
102
105
106
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
main section
not supplied
CD mechanism section
(CDM88A-K6BD90-WOD)
not supplied
(AC HOLD board)
M601
not supplied
not supplied
not supplied
104
103
(EC99)
(EC79)
(EC69)
Ver. 1.2
