Sony HCD-EC79 - CD Mechanism Section Exploded View

49
HCD-EC69/EC79/EC99

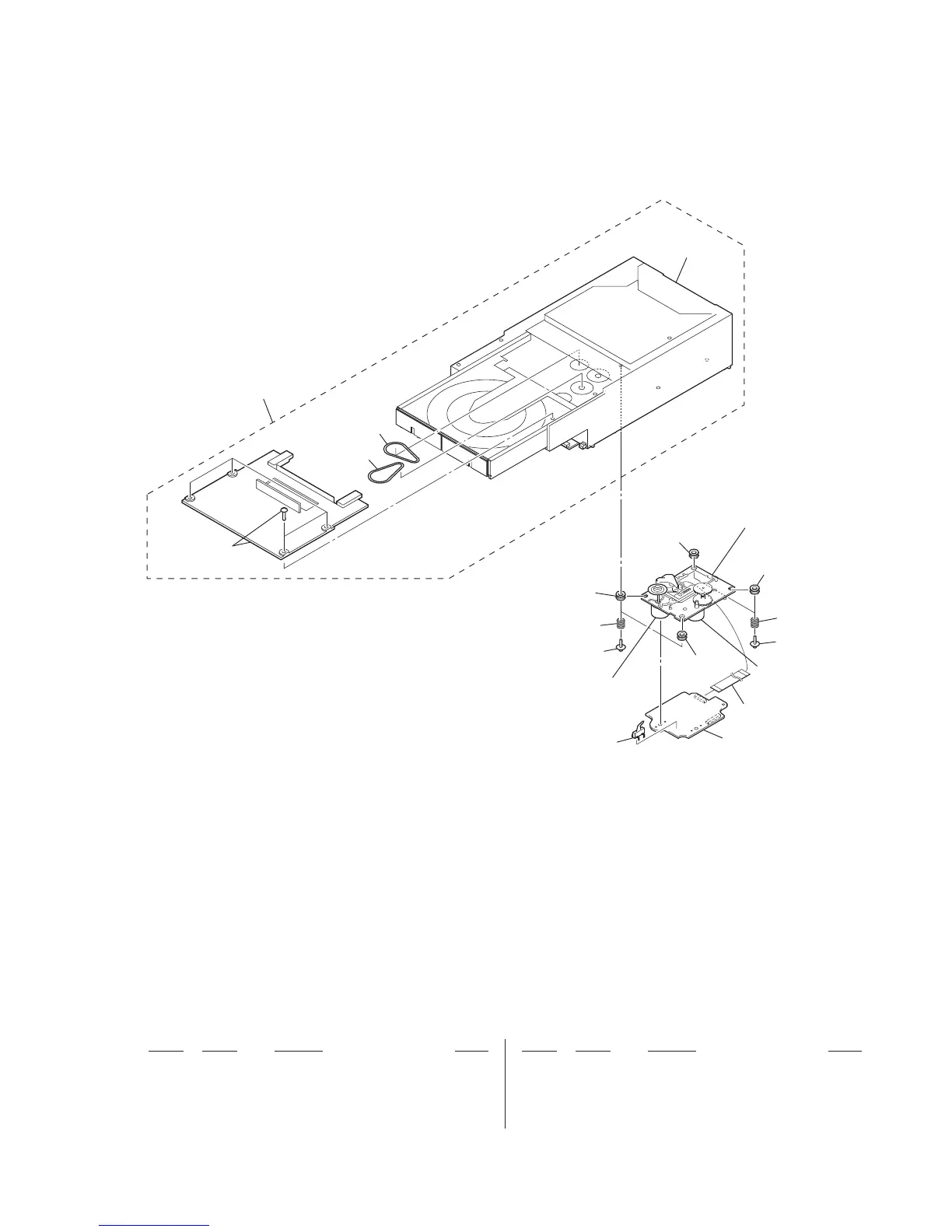

7-5. CD MECHANISM SECTION
(CDM88A-K6BD90-WOD)
206
(including sled motor (M402),
spindle motor (M401))
207
208
S201
203
203
204
204
204
204
202
202
205
205
201
not supplied
not supplied
included in
206
(sled motor (M402))
included in
206
(spindle motor (M401))
201 1-797-193-62 MECHANICAL, CD (DLM3A)
202 2-632-062-11
BELT (DLM3A)
203 4-227-045-31 SPRING (INSULATOR), COIL
204 4-227-549-31 INSULATOR
205 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
0 206 A-4735-357-A BASE ASSY, OP (KSM-213D)
207 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
208 A-1217-914-A CD BOARD, COMPLETE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
