45
HCD-EC69/EC79/EC99
SECTION 7
EXPLODED VIEWS
1 4-120-680-01 DOOR (CD)
2 3-363-099-32 SCREW (CASE 3 TP2)
3 2-890-831-11 PANEL (L), SIDE
4 2-890-829-11 PANEL (TOP)
5 2-890-830-11 PANEL (R), SIDE (EC69)
5 2-890-830-31 PANEL (R), SIDE (EC79/EC99)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-872-01 SCREW +BVTT 3X8 (S)
#5 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

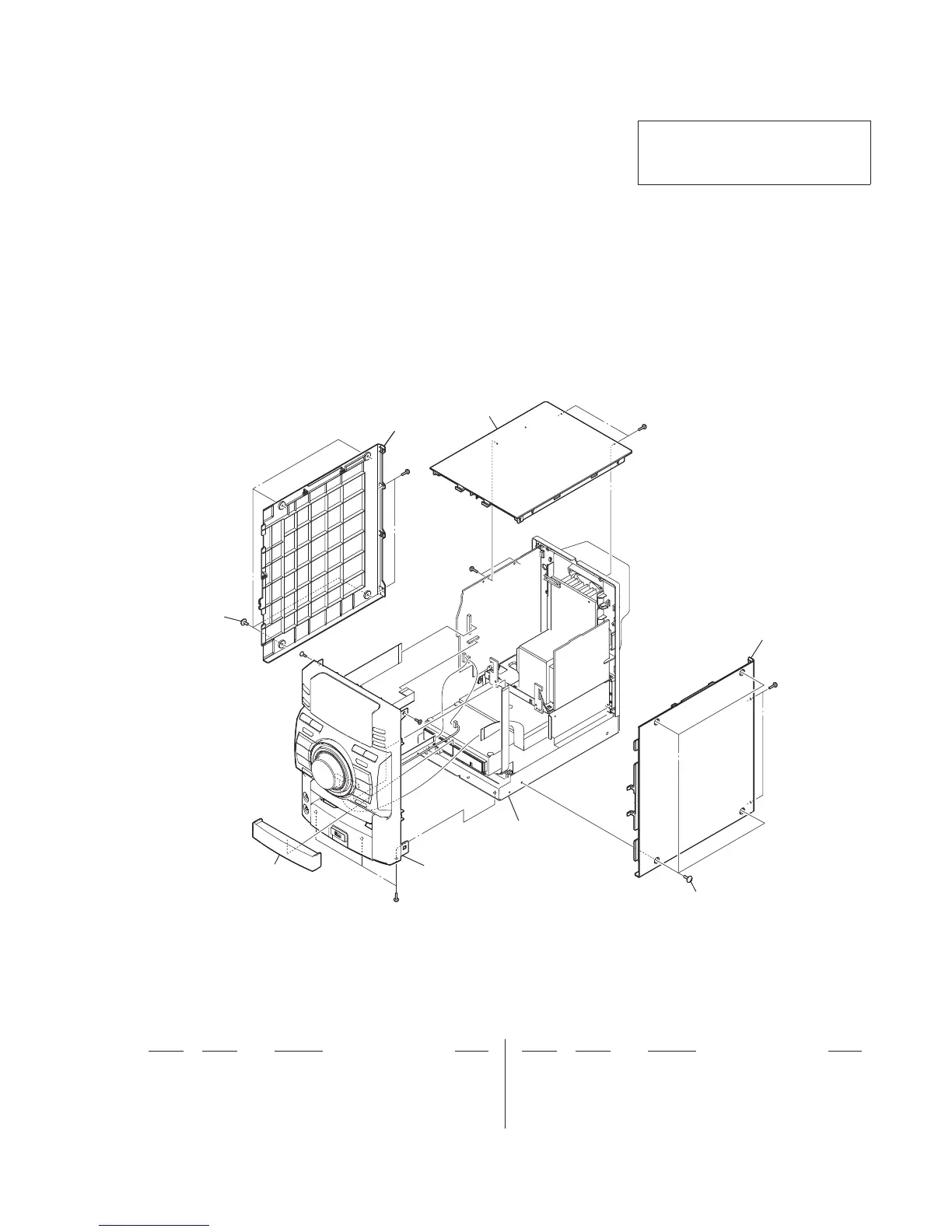

7-1. PANEL SECTION
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
1
2
5
2
3
#2
#1
#1
#1
#1
#5
#5
chassis section
front panel section
4
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Ver. 1.1
