HCD-EC69/EC79/EC99
5
MAIN board
(Left side view)
MAIN board
C626 (EC69/EC79: AEP/EC99: AEP, RU)
C678 (EC79: E2, E51, MX, AR/
E99: E2, E51, MX, AR)
C622 (E69/E79: AEP/EC99: AEP, RU)
C677 (EC79: E2, E51, MX, AR/
E99: E2, E51, MX, AR)

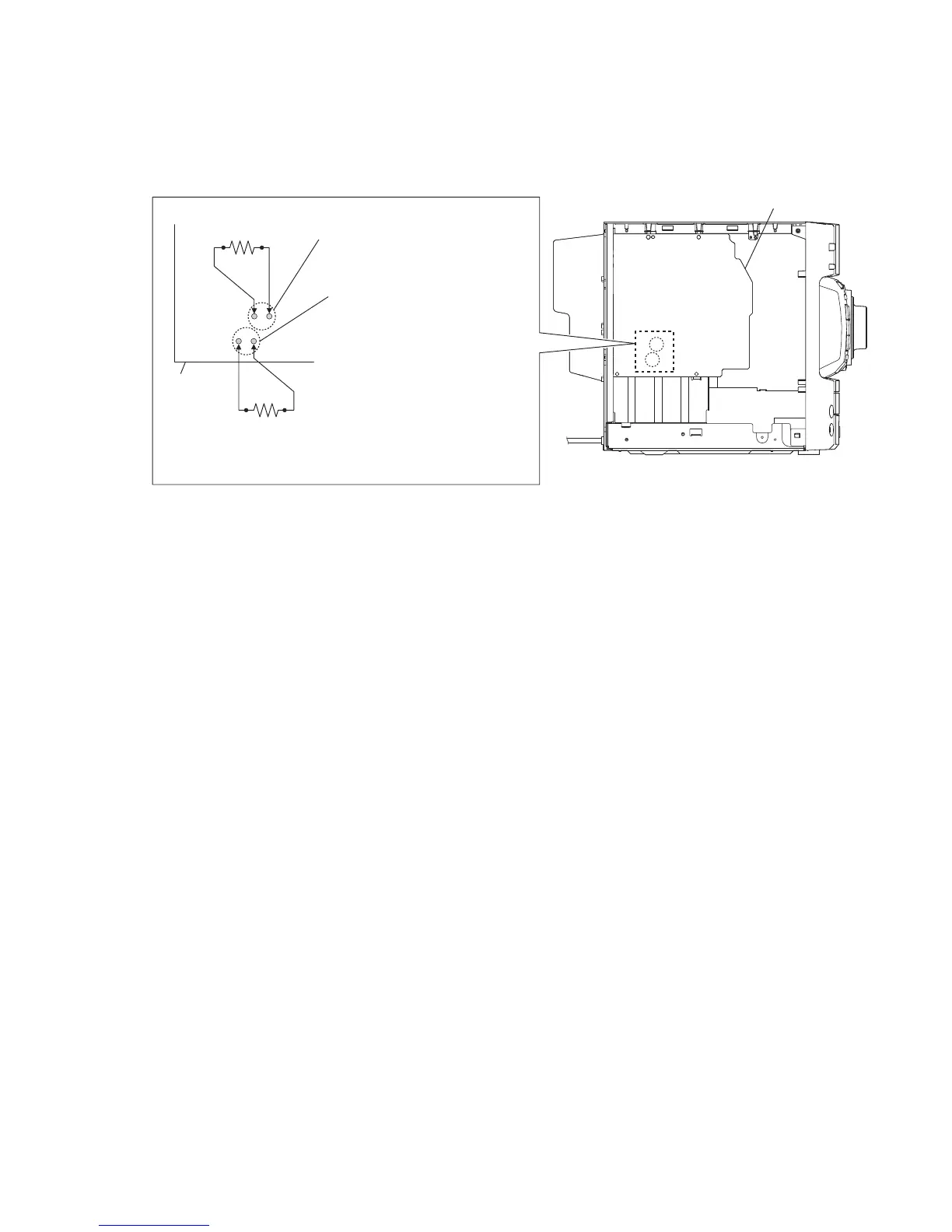

In checking the MAIN board, make a capacitor discharge of C622, C626,
C677 and C678 for electric shock prevention.
800 :/2 W
800 :/2 W
Note: Please take out the side panel (L) from a set refer to DISASSEMBLY (page 9).
CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
