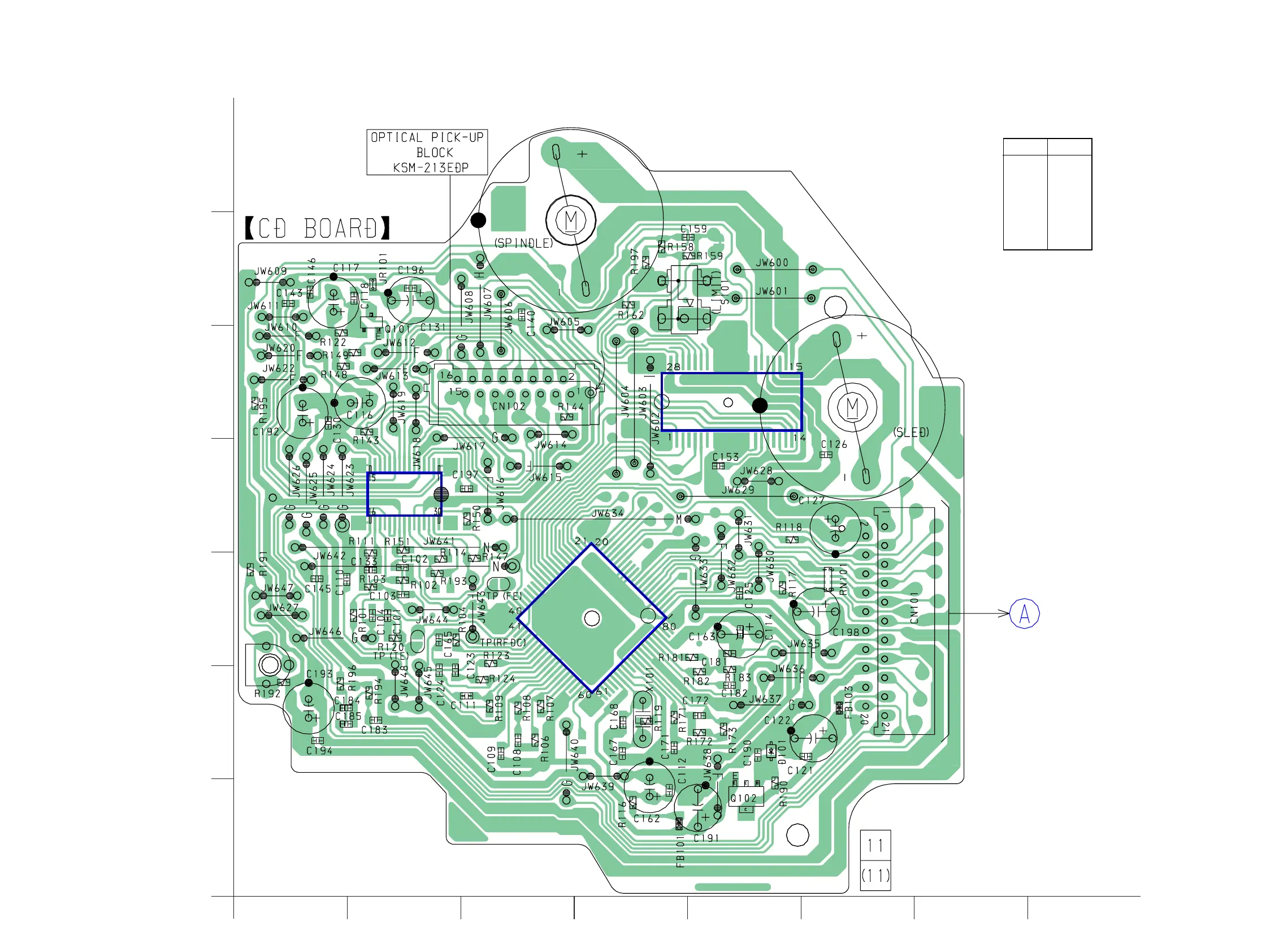

6-3. Printed Wiring Boards – CD Section –
Ref. No. Location
D101 F-5
IC101 E-4
IC102 C-5
IC103 D-2
Q101 C-2
Q102 G-5
• Semiconductor
Location
• See page 15 for Circuit Boards Location.
IC102
IC101
IC103
TP (VC)
TP (RFAC)
TP (DVC)
TO
CONTROL BOARD
CN803
(Page 23)
1-680-849-
M102
