Sony HCD-EP414 - Rear Cabinet Disassembly; CD Cabinet & Front Panel Disassembly

8
HCD-EP414

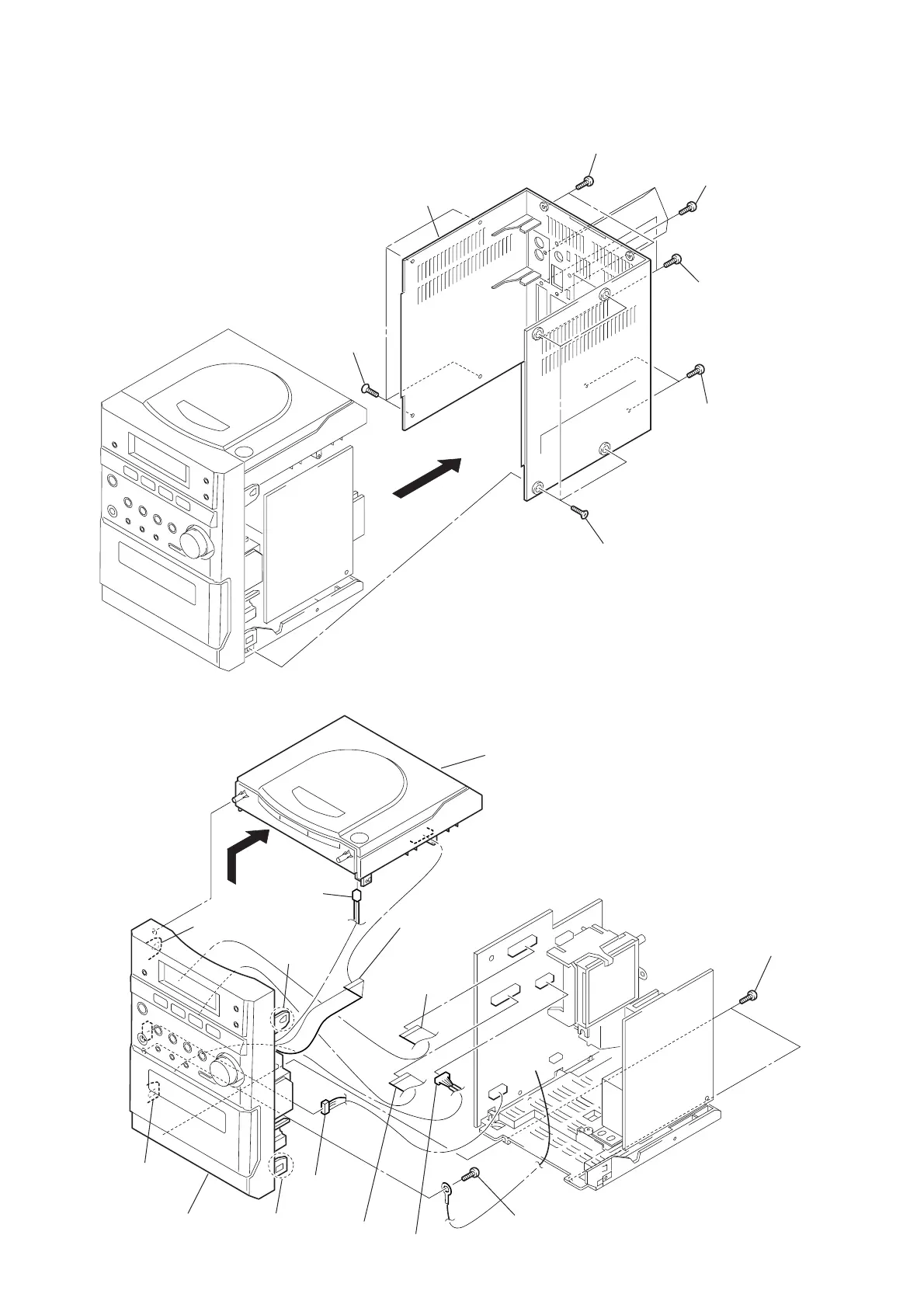

3-2. CD Cabinet Section, Front Panel Section
8 connector
(CN301)
q; screw
(+BVTP 3 × 10)
qa two screws
(+BVTP 3 × 10
)
1 connector
(S800)
9 connector
(CN307)
qf front panel section
5 CD cabinet section
4 claw
3 claw
qs claw
qd claw
2 w ire (flat type)
21p (CN101)
6 w ire (flat type)
20p (CN303)
7 w ire (flat type)
15p (CN302)
3-1. Rear Cabinet
1 two screws
(+BVTP 3
× 10)
3 two screws
(+BVTP 3
× 10)
4 two screws
(+BVTP 3
× 10
)
2 four screws
(+BVTP 3
× 10)
5 four screws
(+K 3
× 5)
6 four screws
(+K 3
× 5)
7 rear cabinet
Note: Follow the disassembly procedure in the numerical order given.
