Sony HCD-EP414 - Base Unit Disassembly; Control & Back Light Board Disassembly

9
HCD-EP414

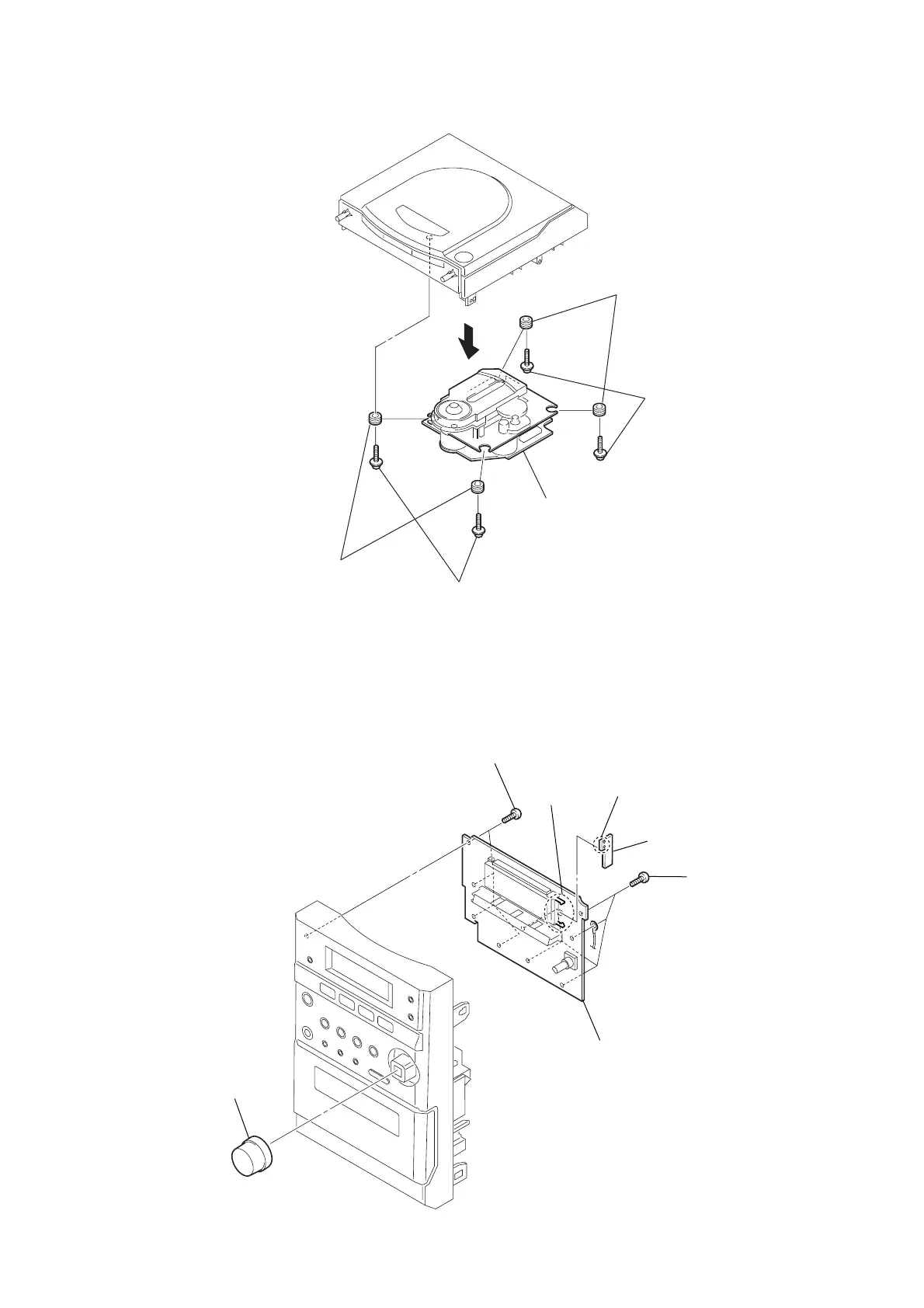

3-3. Base Unit (BU-K7BD44B)
3-4. CONTROL Board, BACK LIGHT Board
1 two screws
(+PWH 2.6
× 10)
4 two vibration proof rubbers (GRN)
5 base unit
(BU-K7BD44B)
3 two vibration proof rubbers (PNK
)
2 two screws
(+PWH 2.6 × 10)
1 knob volume
4 CONTROL board
7 BACK LIGHT board
2 four screws
(+BVTP 3
× 10)
3 five screws
(+BVTP 3
× 10
)
5 Remove two solderings.
6 two claws
jomi
