SECTION 7
EXPLODED VIEWS
30
HCD-EP414
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
E2 : 120V AC Area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
1 A-4732-658-A MAIN BOARD, COMPLETE (AEP)
1 A-4732-667-A MAIN BOARD, COMPLETE (EXCEPT AEP)
6 1-688-191-11 REGULATOR BOARD
7 4-245-014-11 CABINET REAR (AEP,AUS,MX)
7 4-245-014-51 CABINET REAR (E2,E51)
08 1-769-744-52 CORD, POWER (AEP,E51)
08 1-775-790-31 CORD, POWER (AUS)
08 1-827-226-11 CORD, POWER (E2,MX)
9 1-688-188-11 POWER BOARD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
11 1-693-619-11 TUNER (FM/AM) (AEP)
11 1-693-620-11 TUNER (FM/AM) (E51,AUS)
11 1-693-624-11 TUNER (FM/AM) (E2,MX)
12 3-701-748-00 CLAMP
13 4-246-784-01 FOOT RUBBER
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#6 7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
#7 7-685-246-14 SCREW +KTP 3X8 TYPE2 NON-SLIT

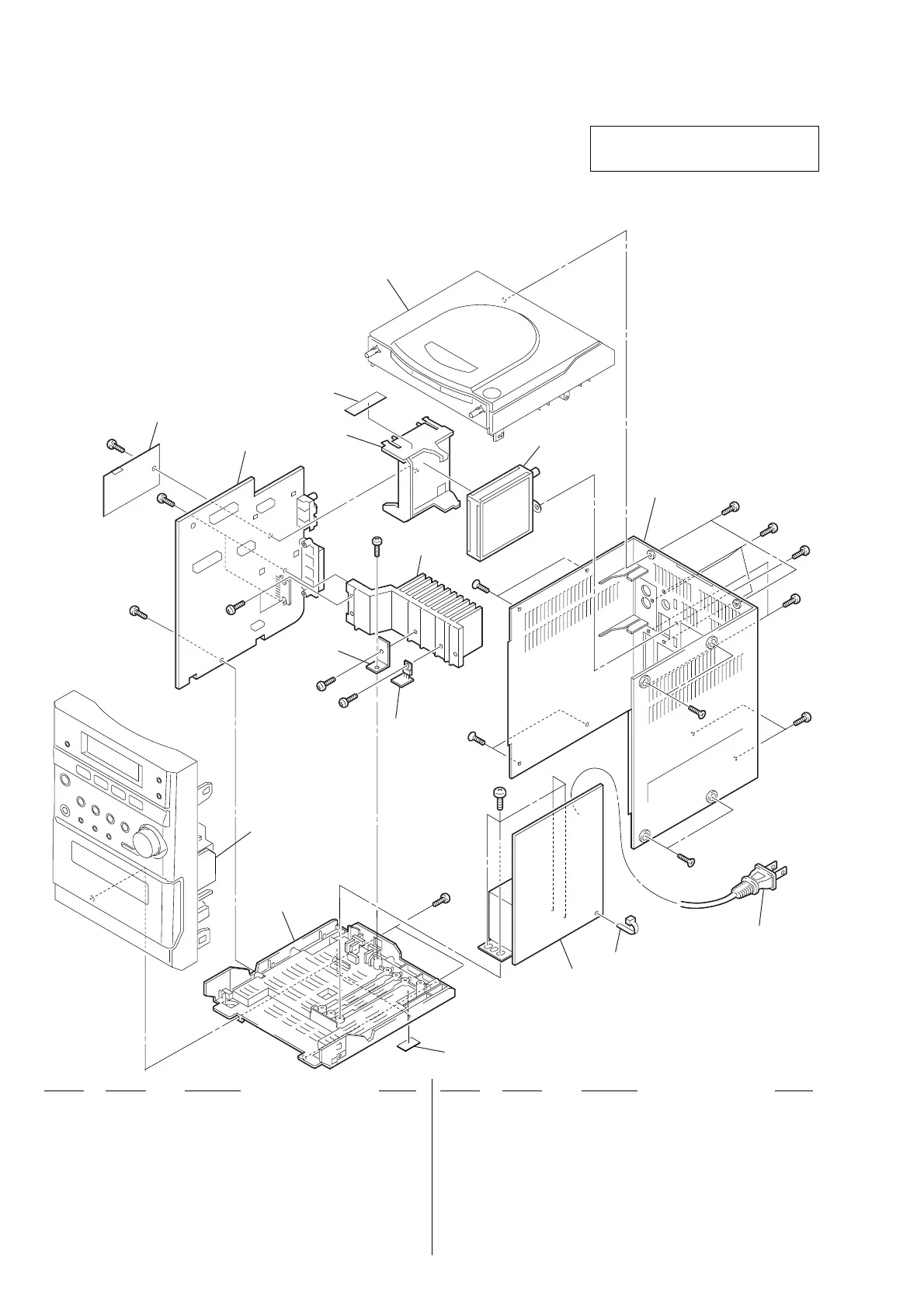

7-1. Cabinet Section
9
12
8
7
front panel section
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
1
6
11
CD cabinet section
13
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#7
#7
#7
#7
#1
#1
#1
#6
To Next Page
