Sony HCD-EP414 - Front Panel Section Exploded View

31
HCD-EP414
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-4737-142-A DOOR CASSETTE ASSY
52 4-245-034-01 SPRING CASSETTE
54 4-245-018-01 HOLDER CASSETTE
55 4-245-032-01 KNOB VOLUME
56 4-245-022-01 DECORATION FUNCTION
57 4-245-013-21 CABINET FRONT
58 4-245-029-01 BUTTON (DISPLAY)
59 4-245-027-01 KNOB (FUNCTION)
60 4-245-028-01 BUTTON (BASS/TRE)
61 4-245-026-01 KNOB (POWER)
62 A-4748-214-A CONTROL BOARD, COMPLETE (E2,E51,MX)
62 A-4748-614-A CONTROL BOARD, COMPLETE (AEP,AUS)
63 4-231-841-01 SPRING (HEART CAM-B)
64 4-224-104-41 DAMPER
65 1-796-351-51 MECHANISM, SIGNAL CASSETTE
(CMAL1Z240A)
66 4-960-167-01 SCREW (3X8) (DIA.10), +WH
67 4-245-023-11 WINDOW LCD (AEP)
67 4-245-023-21 WINDOW LCD (EXCEPT AEP)
68 4-231-825-01 CAM (B), HEART
69 1-688-190-11 BACK LIGHT BOARD
70 4-238-631-01 TAPE SPRING
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-862-09 SCREW +BVTT 2.6X6 (S)
#8 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT

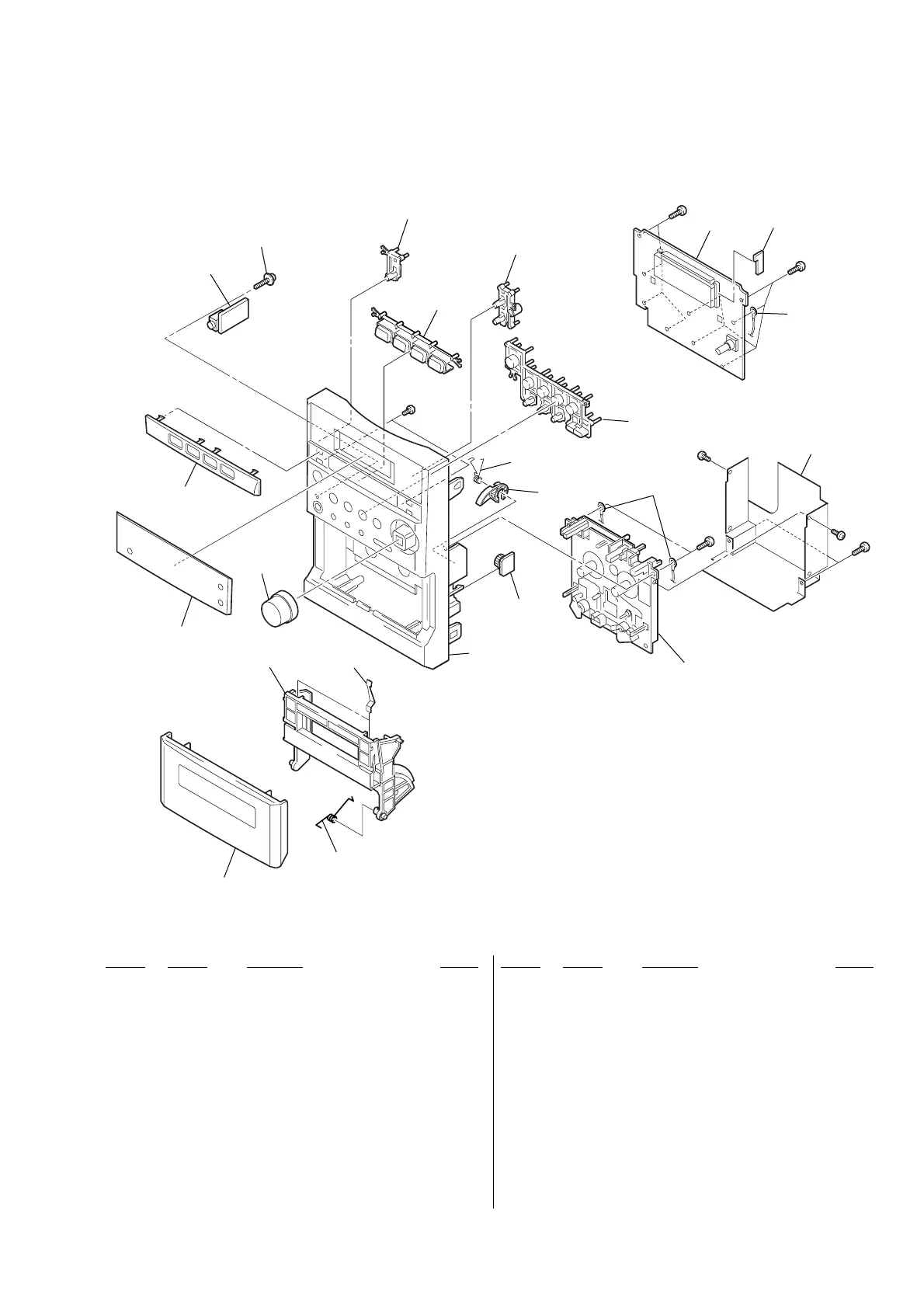

7-2. Front Panel Section
51
52
54
55
56
67
58
66
59
61
60
62
69
63
68
57
64
65
#1
#1
#1
#1
#2
#8
#2
not
supplied
not
supplied
not
supplied
70
not supplied
jomi
