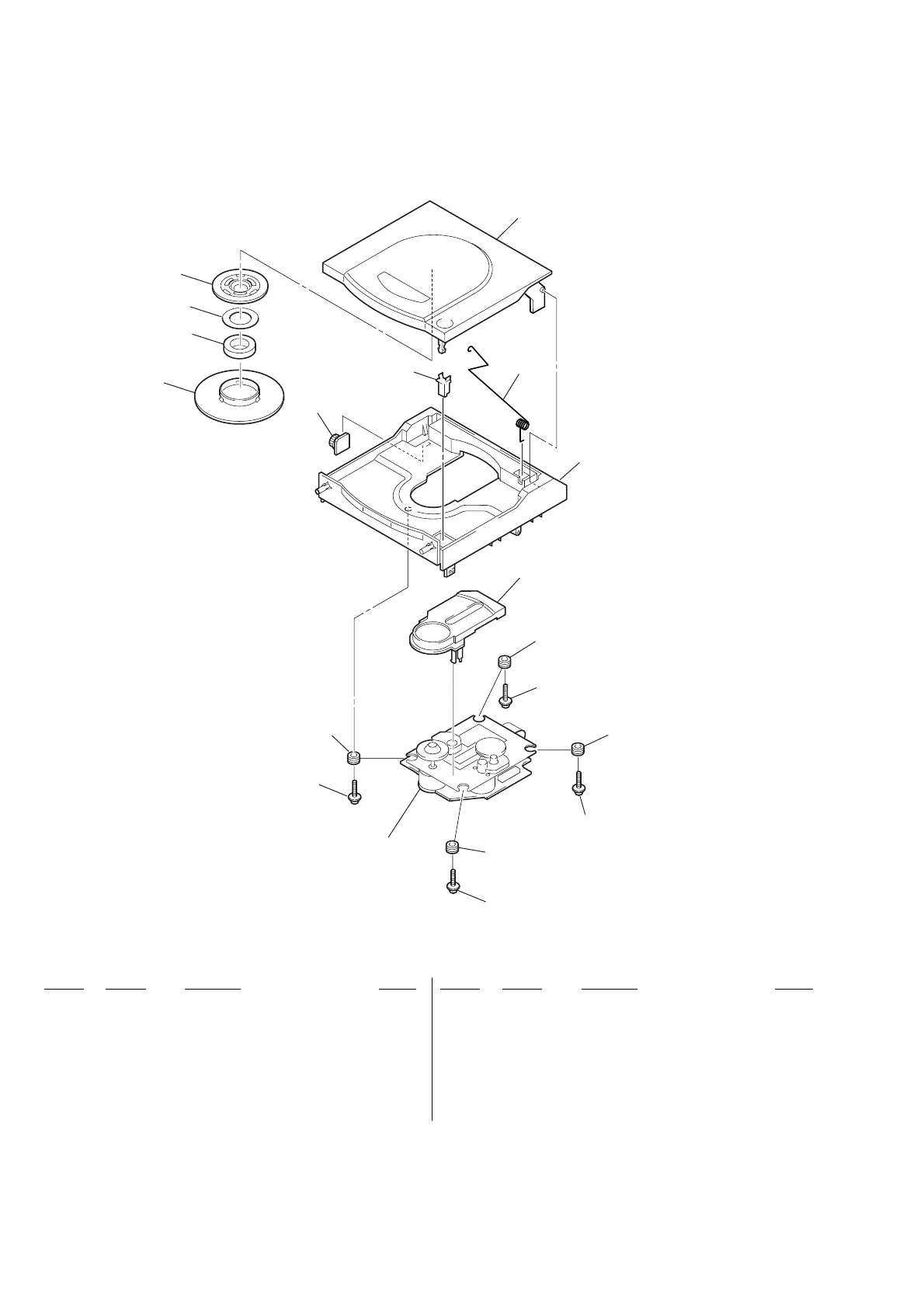

Sony HCD-EP414 - CD Cabinet Section Exploded View

32
HCD-EP414
101 X-4955-942-1 DOOR CD ASSY
102 4-248-711-01 SPRING CD
103 4-245-015-01 CABINET TOP
104 4-242-171-01 DAMPER 150 N
105 4-247-493-01 COVER, CD
107 3-931-379-21 RUBBER, VIBRATION PROOF
108 3-931-379-31 RUBBER, VIBRATION PROOF
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
7-3. CD Cabinet Section
111 4-246-193-01 HOLDER, CHUCK A
112 4-246-191-01 PLATE, MAGNET
113 4-249-238-01 MAGNET (18-30-5)
114 4-246-192-01 BASE, CHUCK N
115 3-921-725-11 SCREW (2.6X10), +PWH
S800 1-692-960-11 SWITCH, PUSH (1 KEY)
101
111
102
103
104
105
107
107
115
115
108
108
112
113
114
S800
base unit section
(BU-K7BD44B)
115
115
