6
HCD-FLX5D/FLX7D

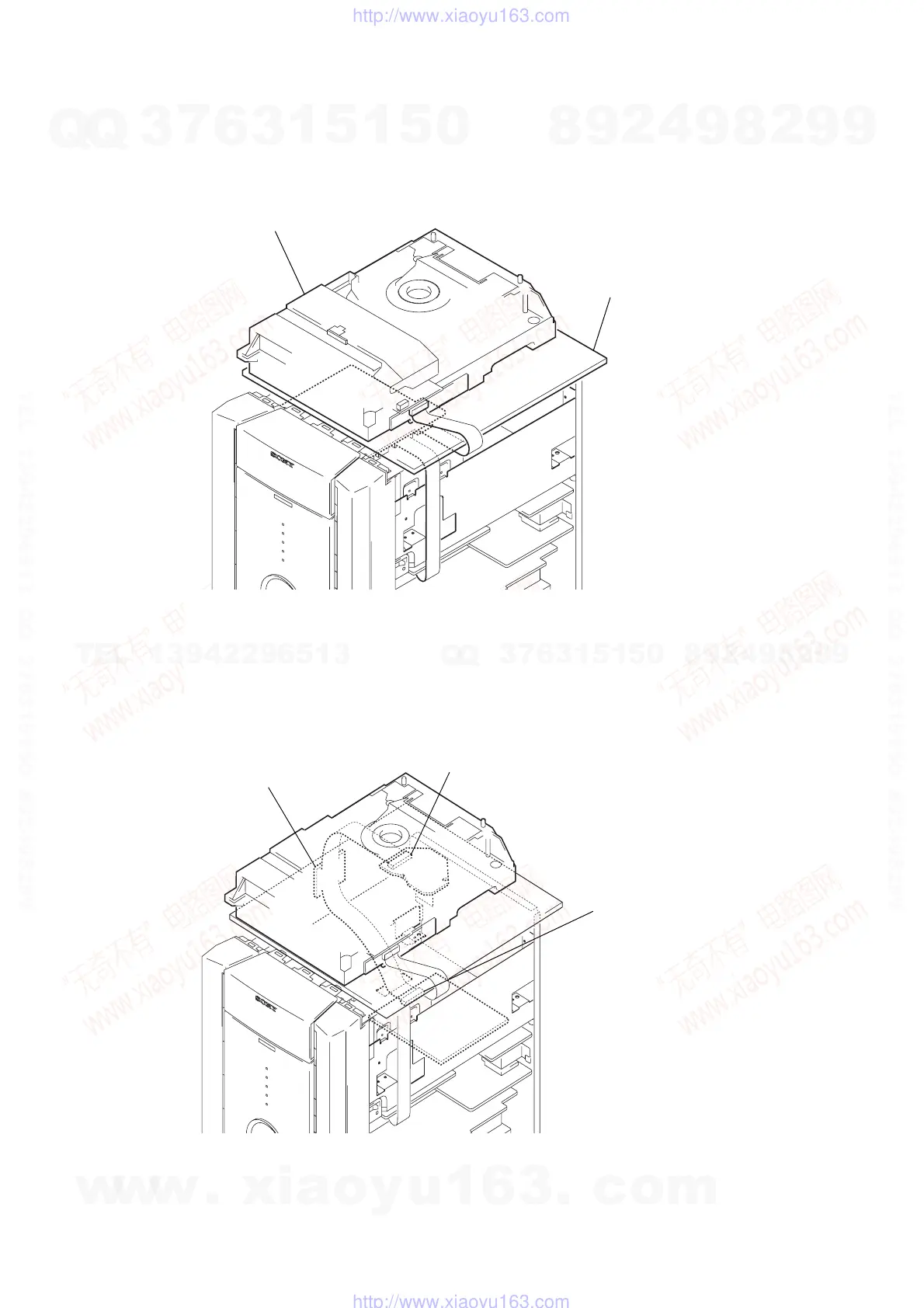

DVD MECHANISM DECK SERVICE POSITION
• In checking the DVD mechanism deck section (CDM53N-DVBU14), prepare extension jig (Part No. J-2501-103-A: 1.00 mm Pitch, 29
cores, Length 300 mm).
DVD mechanism deck
(CDM53N-DVBV14)
Any board to put.
MB board (CN501
RF board (CN002)
Connect extension jig (J-2501-103 A)
to the MB board (CN501) and
RF board (CN002).
