HCD-FLX5D/FLX7D

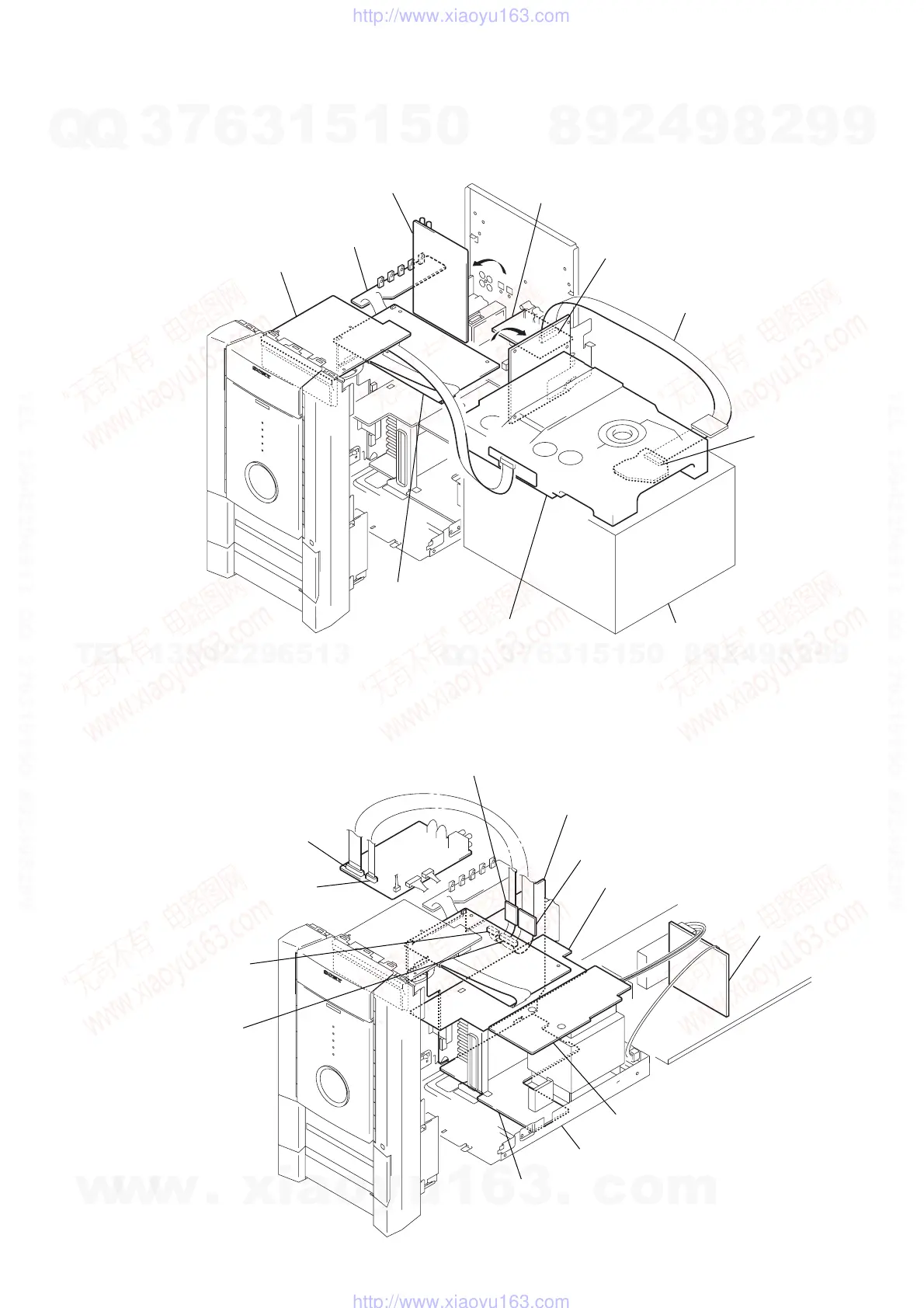

DSP/GC/MB/MC/REGULATOR AND VIDEO BOARDS SERVICE POSITION
• In checking the DSP/GC/MB/MC/REGULATOR and VIDEO boards, prepare extension jig (Part No. J-2501-103-A: 1.00 mm Pitch, 29
cores, Length 300 mm).
VIDEO board
MB board
(CN501)
Connect extension jig (J-2501-103-A)
to the MB board (CN501) and
RF board (CN002).
RF board
(CN002)
Any box to put.
DVD mechanism deck
MC board
GC board
REGULATOR board
DSP board
Connect extension jig (J-2501-242-A) to the
DSP board (CN601) and MC board (CN103).
SP RELAY board
Connect extension jig (J-2501-086-A) to the
DSP board (CN602) and MC board (CN104).
FRONT REAR AMP board
SVB TRANS board
TRANS board
chassis
CENTER SW AMP board
Note: When you check the reverse-side side of
CENTER SW AMP board, please move
from a chassis.
MC board
(CN104)
MC board
(CN103)
DSP board
(CN601)
DSP board
(CN602)
CENTER SW AMP/FRONT REAR AMP/SP RELAY/SUB TRANS AND TRANS BOARDS SERVICE
POSITION
• In checking the CENTER SW AMP/FRONT REAR AMP/SP RELAY/SUB TRANS and TRANS boards, prepare two extension jigs
(Part No. J-2501-242-A: 1.00 mm Pitch, 11 cores, Length 300 mm and Part No. J-2501-086-A: 1.00 mm Pitch, 19 cores, Length
300 mm).
