Sony HCD-GPZ6 - Lever (Disc Sensor);(Disc Stop); DRIVER Board

HCD-GPZ6/GPZ7
13

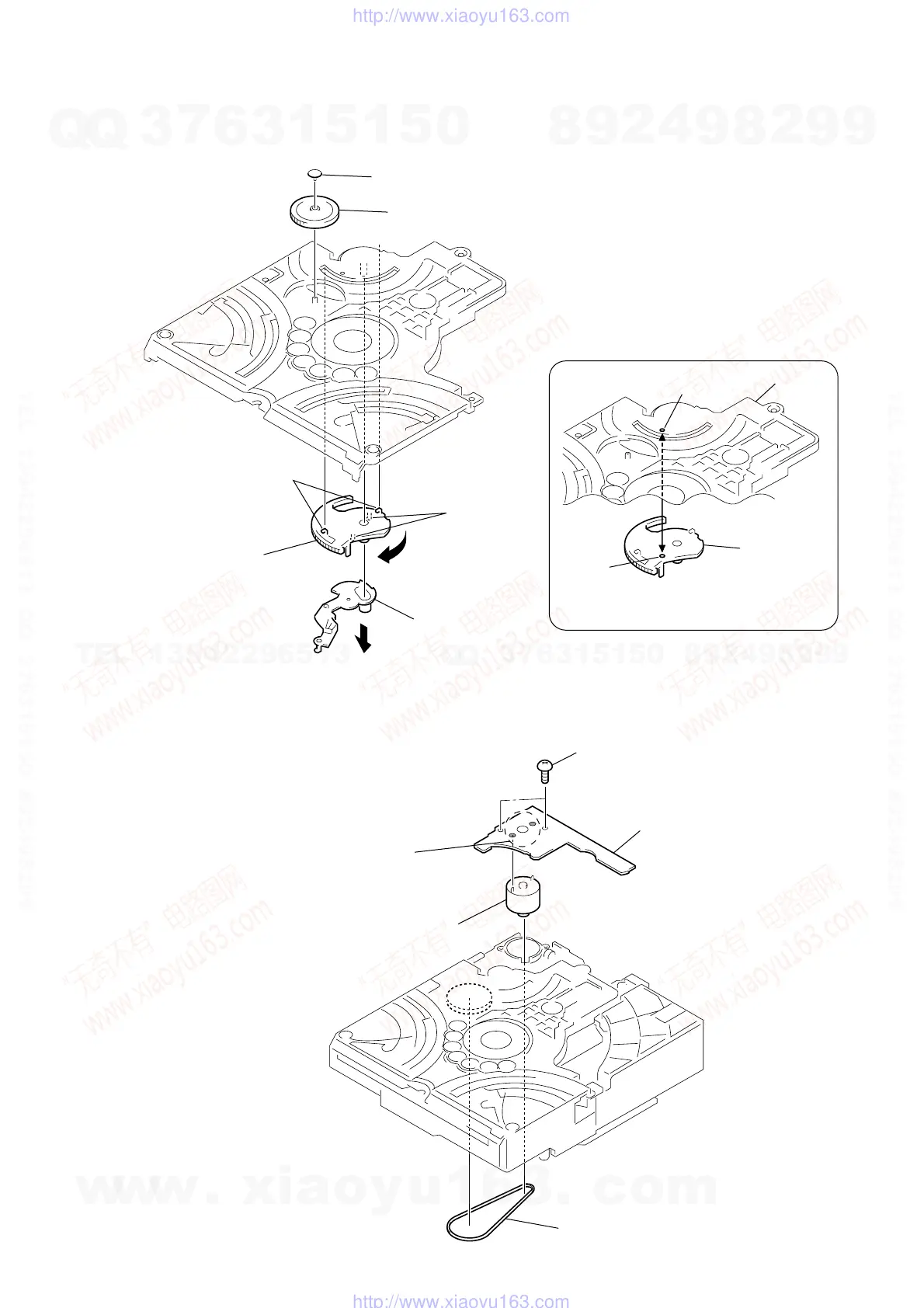

3-13. LEVER (DISC SENSOR)/(DISC STOP)
chassis (top)
hole
Install the lever (disc stop) so that the both holes
are aligned.
hole
1 gear (cap)
3 two claws
5 two hooks
6 lever (disc stop)
lever (disc stop)
4 lever (disc sensor)
PRECAUTION DURING DISC STOP LEVER INSTALLATION
2 gear (IDL-L)
3-14. DRIVER BOARD
3 Remove two solders.
2 two screws
(BVTT 2.6)
5 DRIVER boar
d
4 motor (pully) assy
(loading)
1 belt (MOT)
