57
HCD-GPZ6/GPZ7

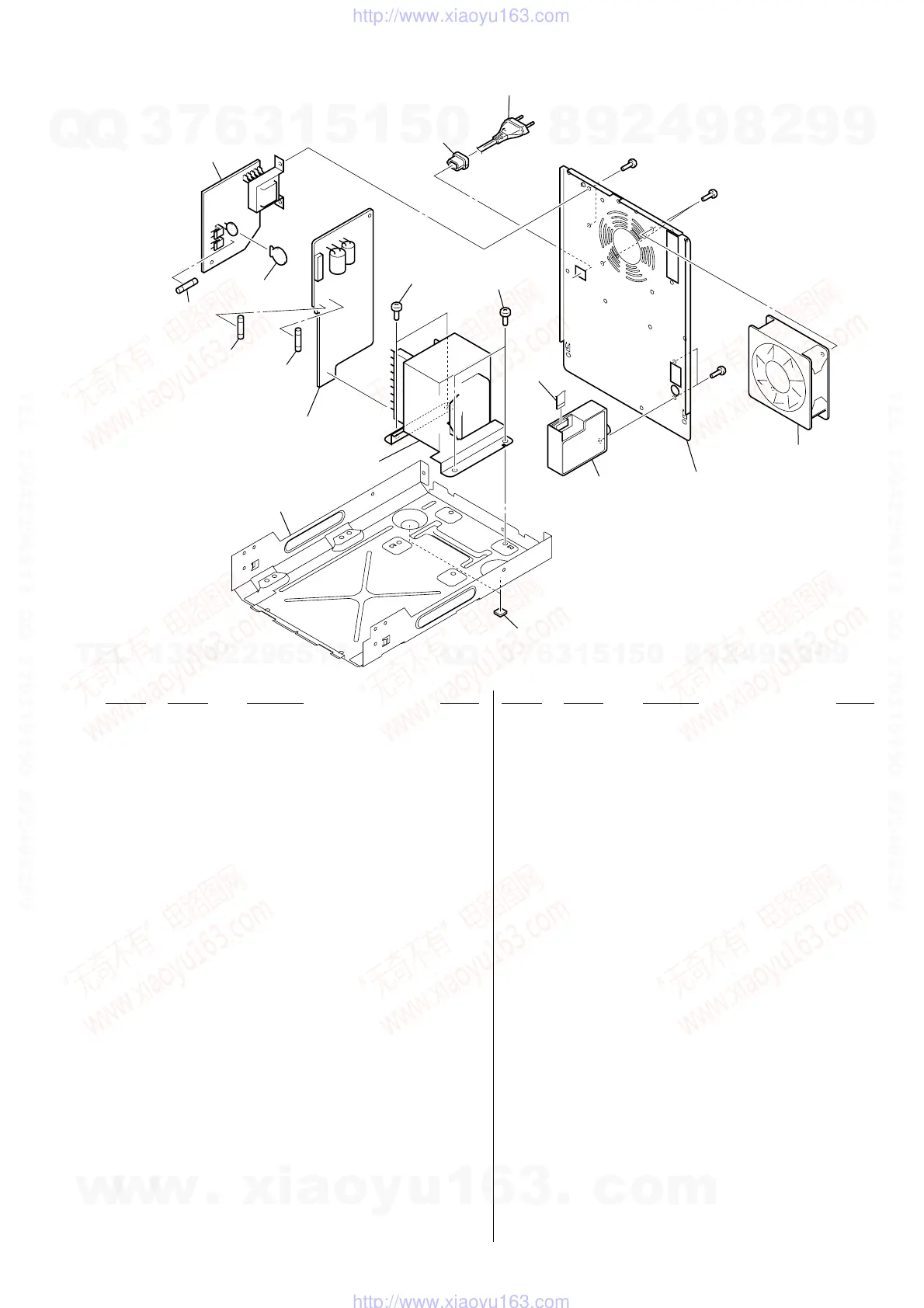

8-6. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 A-1106-399-A POWER BOARD, COMPLETE
(GPZ7: AEP, EE, RU)
251 A-1107-850-A POWER BOARD, COMPLETE (GPZ7: E, E51)
251 A-1109-867-A POWER BOARD, COMPLETE (GPZ7: AR)
251 A-1109-896-A POWER BOARD, COMPLETE (GPZ6: AR, KR)
251 A-1110-309-A POWER BOARD, COMPLETE (GPZ6: AUS)
251 A-1110-360-A POWER BOARD, COMPLETE (GPZ6: UK)
251 A-1121-365-A POWER BOARD, COMPLETE (GPZ7: MX)
251 A-1127-719-A POWER BOARD, COMPLETE (GPZ6: SP)
252 A-1106-401-A SUB PT BOARD, COMPLETE
(GPZ6: UK/GPZ7: AEP, EE, RU)
252 A-1107-852-A SUB PT BOARD, COMPLETE
(GPZ6: SP/GPZ7: E2, E51)
252 A-1109-885-A SUB PT BOARD, COMPLETE
(GPZ6: AR, KR, AUS/GPZ7: AR)
252 A-1121-367-A SUB PT BOARD, COMPLETE (GPZ7: MX)
253 3-703-244-00 BUSHING (2104), CORD (EXCEPT GPZ7: E, MX)
* 253 3-703-571-12 BUSHING (S) (4516), CORD (GPZ7: E, MX)
0 254 1-769-079-41 CORD, POWER (GPZ6: KR)
0 254 1-769-744-81 CORD, POWER (GPZ6: UK)
0 254 1-775-790-71 CORD, POWER (GPZ6: AUS)
0 254 1-827-226-31 CORD, POWER (GPZ7: E, MX)
0 254 1-829-387-11 CORD, POWER (GPZ6: AR)
0 254 1-830-188-11 CORD, POWER
(GPZ6: SP/GPZ7: AEP, EE, RU, E51)
255 4-900-386-01 SCREW
* 256 4-374-846-21 COVER, CAPACITOR, CAP TYPE
257 2-591-366-01 PANEL (REAR) (GPZ7: AEP, EE, RU)
257 2-591-366-21 PANEL (REAR) (GPZ7: AR)
257 2-591-366-31 PANEL (REAR) (GPZ6: UK)
257 2-591-366-41 PANEL (REAR) (GPZ6: AUS)
257 2-591-366-51 PANEL (REAR) (GPZ6: KR)
257 2-591-366-61 PANEL (REAR) (GPZ6: AR)
257 2-591-367-01 PANEL (REAR) (GPZ7: E)
257 2-591-367-11 PANEL (REAR) (GPZ7: E51)
257 2-591-367-31 PANEL (REAR) (GPZ6: SP)
257 2-591-367-41 PANEL (REAR) (GPZ7: MX)
258 4-247-752-01 FOOT, RUBBER
259 1-693-685-11 TUNER (FM/AM)
(GPZ6: SP, AR, AUS/GPZ7: E, E51, MX, AR)
259 1-693-686-11 TUNER (FM/AM) (GPZ6: UK/GPZ7: AEP, EE, RU)
259 1-693-687-11 TUNER (FM/AM) (GPZ6: KR)
0F901 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15A/250V)
(AR, SP, KR, AUS)
0F901 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (T4A/250V)
(UK/GPZ7)
0F902 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15A/250V)
(AR, SP, KR, AUS)
0F902 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (T4A/250V)
(UK/GPZ7)
0F903 1-533-467-12 FUSE, GLASS TUBE (DIA. 5) (T1.6A/250V) (SP)
0F903 1-533-469-12 FUSE, GLASS TUBE (DIA. 5) (T2.5A/ 250V)
(E, E51, MX)
M301 1-787-319-11 FAN, DC
0T901 1-443-197-11 TRANSFORMER, POWER (AEP, EE, RU)
0T901 1-443-269-11 TRANSFORMER, POWER (UK)
0T901 1-443-678-11 TRANSFORMER, POWER (AR, SP, KR, AUS)
0T901 1-443-680-11 TRANSFORMER, POWER (E, E51, AR, MX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
251
252
256
253
254
255
#1
#1
#1
257
259
258
not supplied
not
supplied
T901
F901
M301
F902
F903
255
Ver. 1.1
