Sony HCD-GPZ6 - Panel (Side L);(Side R); Top Block Section

HCD-GPZ6/GPZ7
7
Note: Follow the disassembly procedure in the numerical order given.

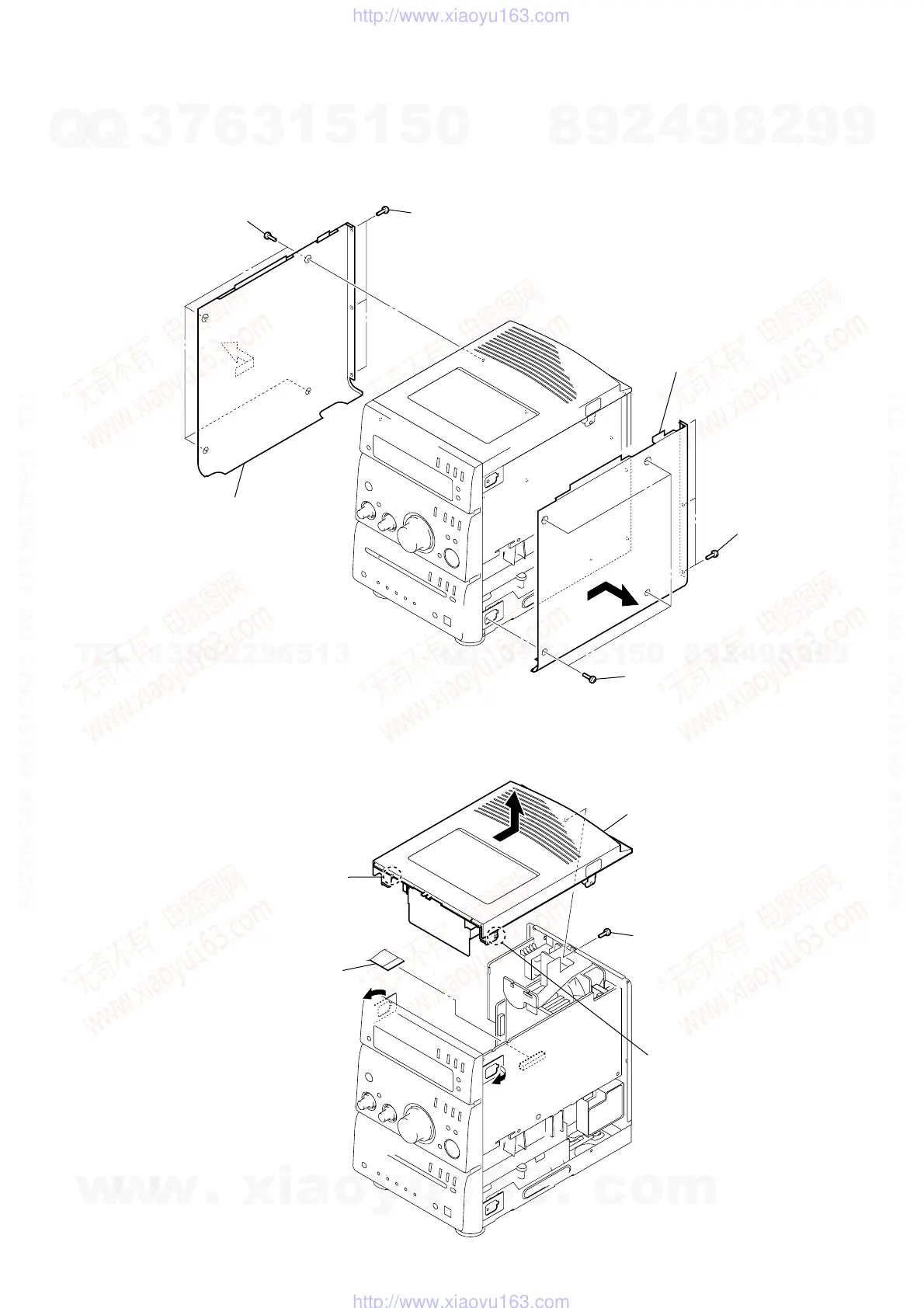

3-2. PANEL (SIDE L)/(SIDE R)
3-3. TOP BLOCK SECTION
2 four screws
(BVTP3
× 8)
1 three screws
(BVTP3
× 8)
4 three screws
(BVTP3
× 8)
5 four screws
(BVTP3
× 8)
6 panel (side R)
3 panel (side L)
5 top block section
3
1 screw
(BVTP3 × 8)
2 claw
2 claw
4 flexible board
(CN307)
