HCD-GPZ6/GPZ7
SECTION 8
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-254-151-01 SCREW (B2.6), (+) P TAPPING
2 2-587-388-01 PANEL (SIDE L)
3 A-1106-769-A AU-TC BOARD, COMPLETE
(GPZ6: UK, KR/GPZ7: AEP, EE, RU)
3 A-1107-860-A AU-TC BOARD, COMPLETE
(GPZ6: AR/GPZ7: E, E51, MX, AR)
3 A-1118-858-A AU-TC BOARD, COMPLETE (GPZ6: SP, AUS)

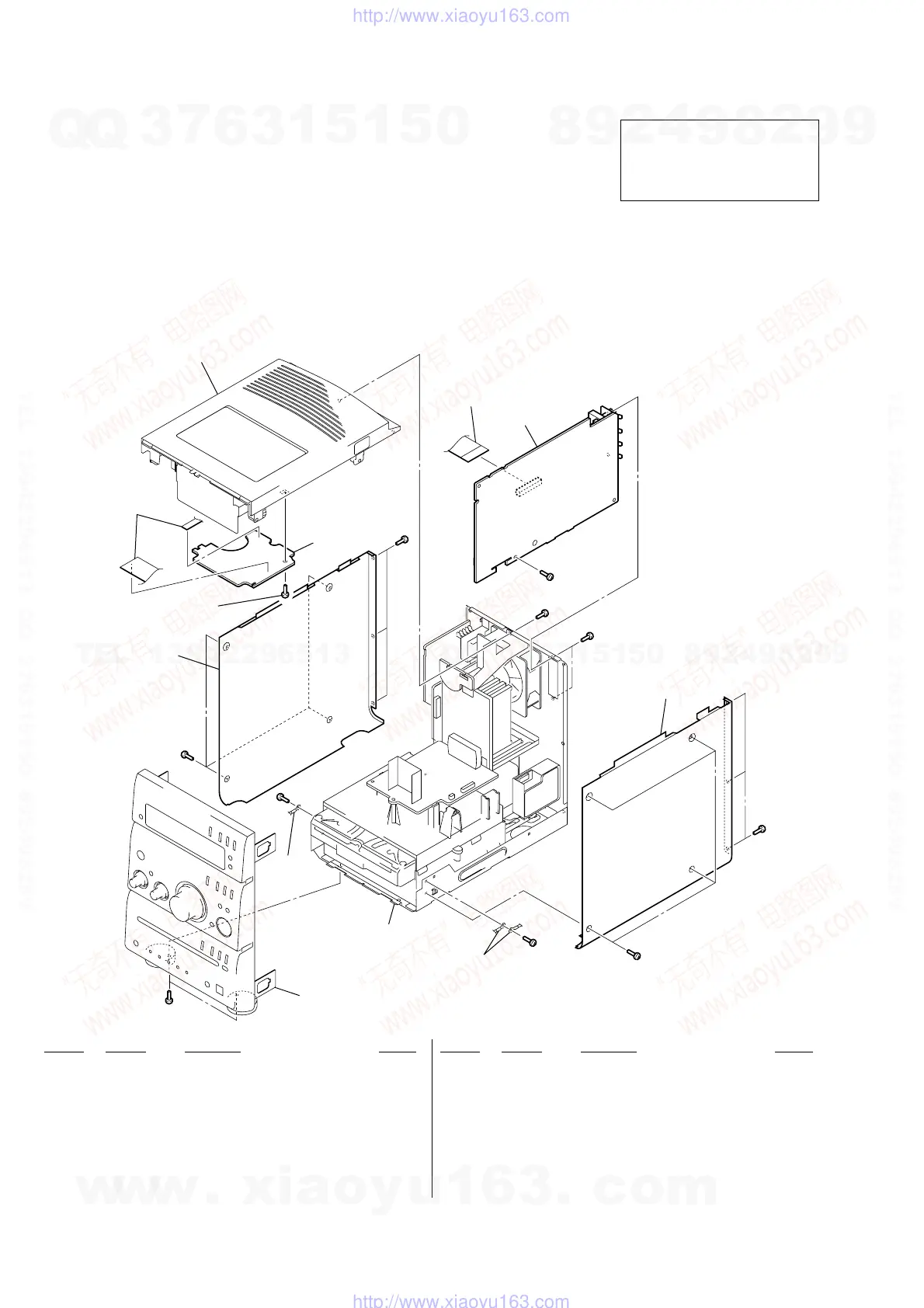

8-1. OVERALL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
2
1
3
4
5
panel board section
top block section
CD block section
not supplied
not
supplied
not supplied
not supplied
4 A-1106-748-A MAIN BOARD, COMPLETE
(GPZ6: UK/GPZ7: AEP, EE, RU)
4 A-1107-855-A MAIN BOARD, COMPLETE
(GPZ6: AR/GPZ7: E, E51, MX, AR)
4 A-1109-912-A MAIN BOARD, COMPLETE (GPZ6: SP, AUS)
4 A-1109-926-A MAIN BOARD, COMPLETE (GPZ6: KR)
5 2-587-389-01 PANEL (SIDE R)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
• Abbreviation
AR : Argentina model
AUS: Australian model
E51 : Chilean and Peruvian models
EE : East European model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
