Sony HCD-GPZ6 - Lever (DIR), Gear (IDL-B); Gear (IDL-C)

HCD-GPZ6/GPZ7
15

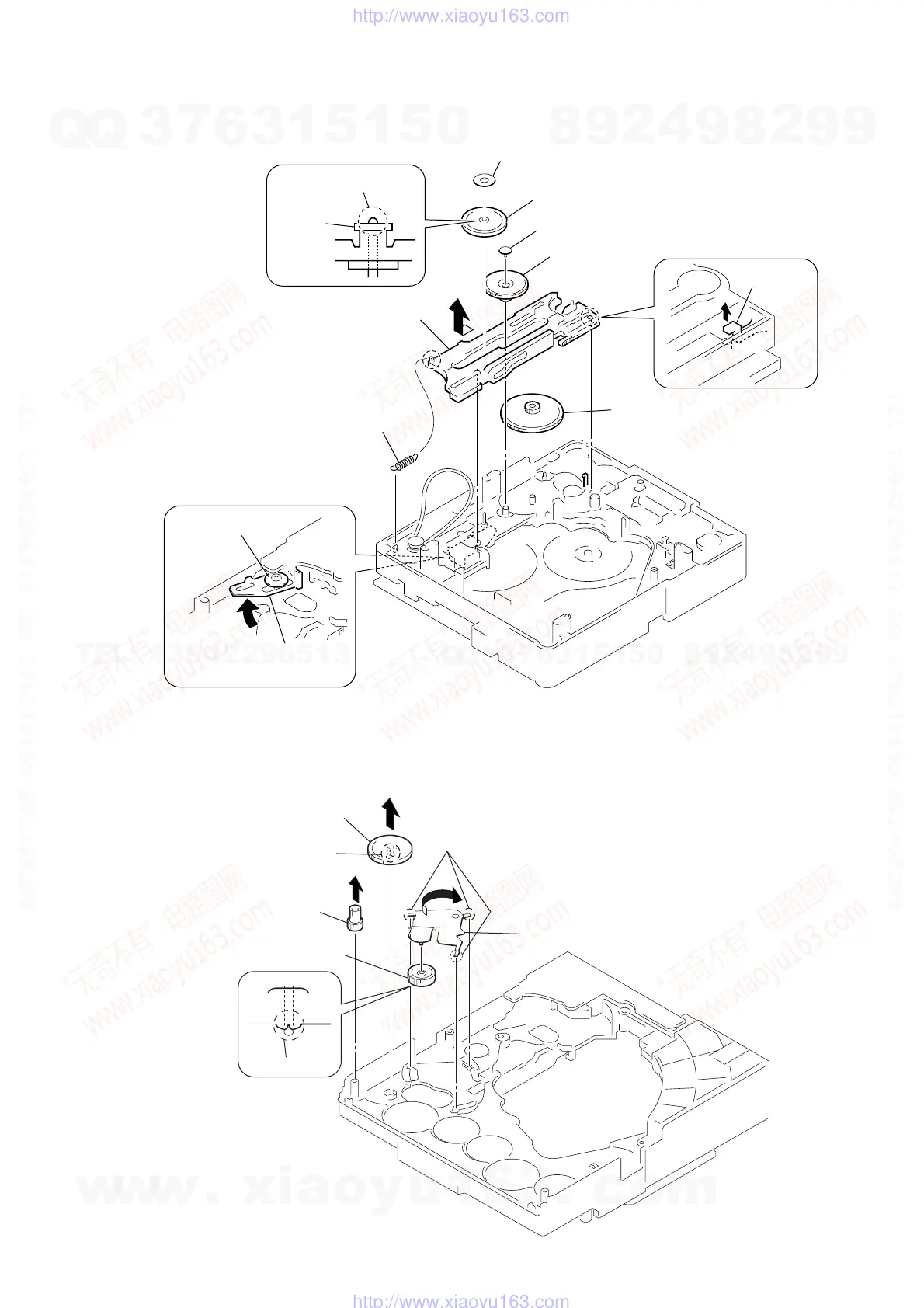

3-17. LEVER (DIR), GEAR (IDL-B)
4 pulley (gear)
3 nylon washer 1.7
2 claw
washer
0 lever (DIR)
6 gear (IDL-A)
qa gear (IDL-B)
1 tension coil spring
(DIR)
9 stopper
7 Loosen the screw.
8 Hold the release lever
and change the direction.
5 gear (cap)
6 claw
1 gear (IDL-F)
5 gear loading lever
2 two claws
4 three hooks
3 gear (IDL-D)
7 gear (IDL-C)
3-18. GEAR (IDL-C)
