Sony HCD-GPZ6 - Page 30

HCD-GPZ6/GPZ7
3030
HCD-GPZ6/GPZ7

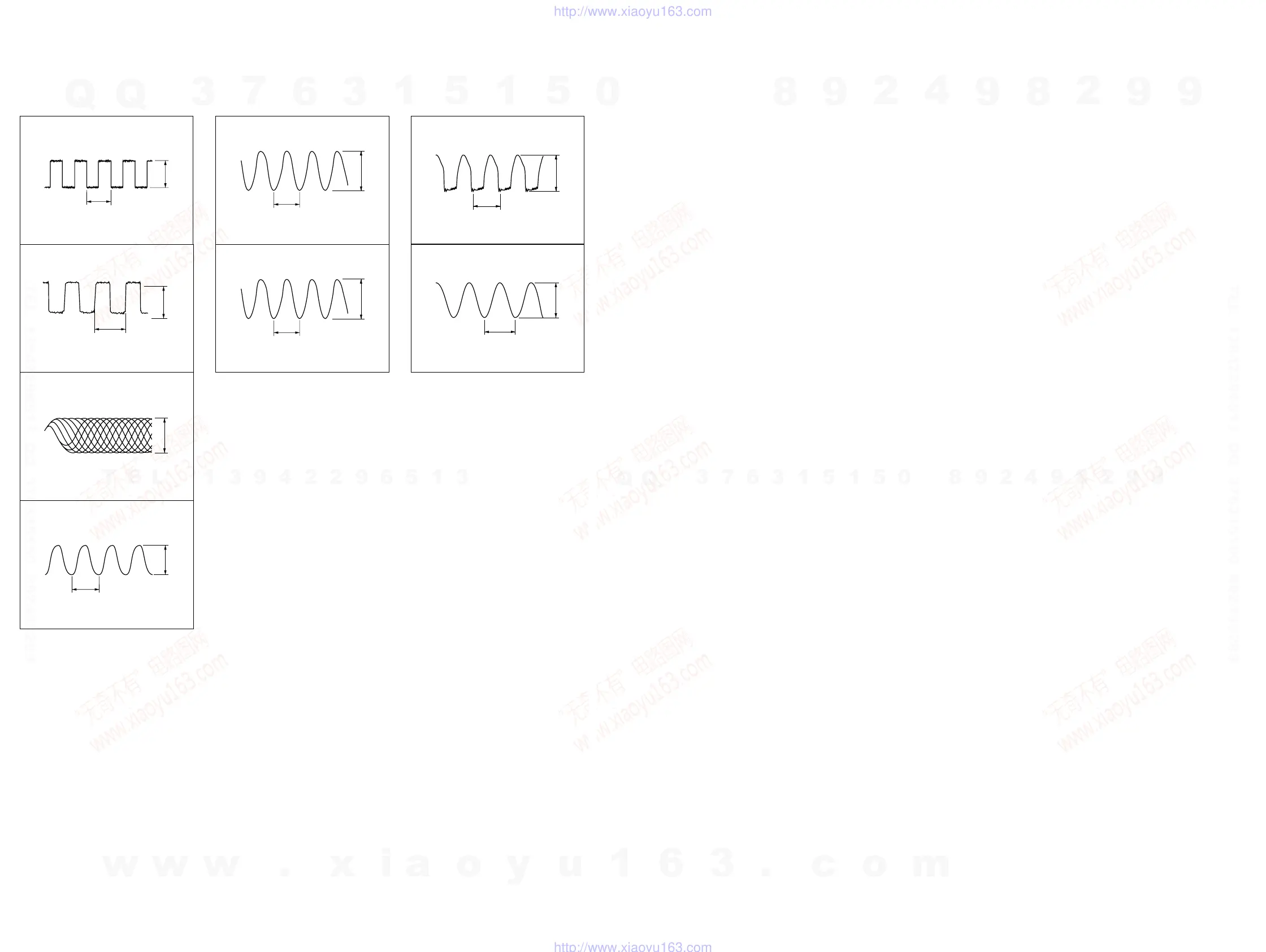

• Waveforms
– BD Board – – AU-TC Board – – MAIN Board –
3
IC201 u; (RFACO)
(CD PLAY mode)
200 mV/DIV, 500 ns/DIV
0.5 to 1.3 Vp-p
22.8 µ s
3.3 Vp-p
1
IC201 1 (LRCK)
(CD PLAY mode)
1 V/DIV, 10 µ s/DIV
2
IC201 5 (BCK)
(CD PLAY mode)
1 V/DIV, 200 ns/DIV
472 ns
3.3 Vp-p
4
IC201 <z/, (XTAO)
(CD PLAY mode)
1 V/DIV, 20 ns/DIV
59.4 ns
2.3 Vp-p
qa
T301 4
(TAPE REC mode)
50 V/DIV, 5 µ s/DIV
13.2 µ s
97.6 Vp-p
qs
Q321 (Collector)
(TAPE REC mode)
5 V/DIV, 5 µ s/DIV
13.2 µ s
11 Vp-p
ws
IC306 qd (XOUT)
500 mV/DIV, 20 ns/DIV
62.5 ns
1.2Vp-p
wa
IC306 qa (XCOUT)
1 V/DIV, 10 µ s/DIV
30.6 µ s
2.8 Vp-p
