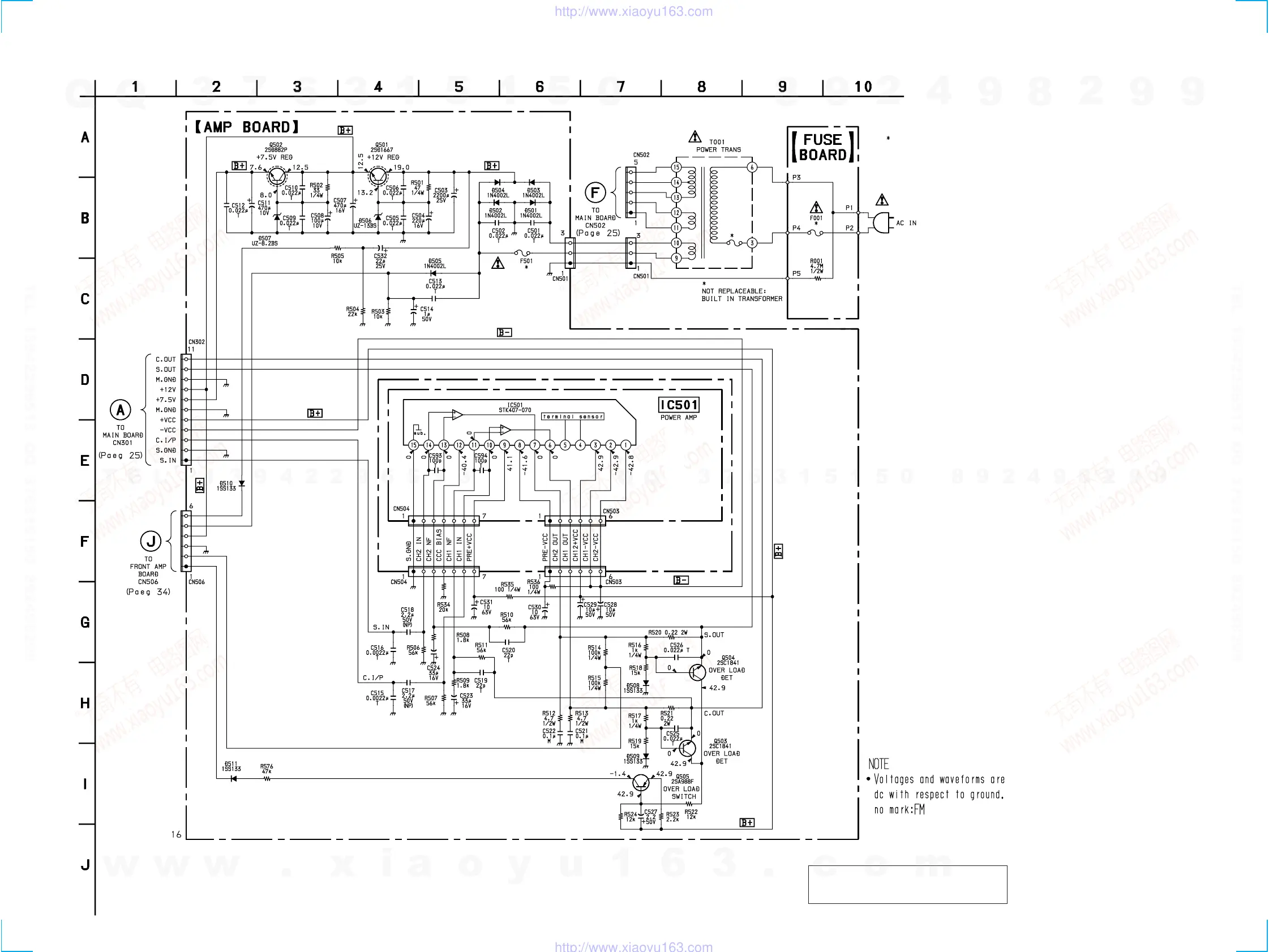

7-14. SCHEMATIC DIAGRAM CENTER/REAR AMP SECTION
• Refer to page 21 for Note on Schematic Diagrams.
F001 4.0A 125V : MX MODEL
T2.0AL 250V : EXCEPT MX MODEL
F501 2.5A 250V : MX MODEL
T2.0AL 250V : EXCEPT MX MODEL
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
