Sony hcd-grx40av - 2 General ······································································4; 3 Disassembly; CD Door; CD Mechanism Deck

6

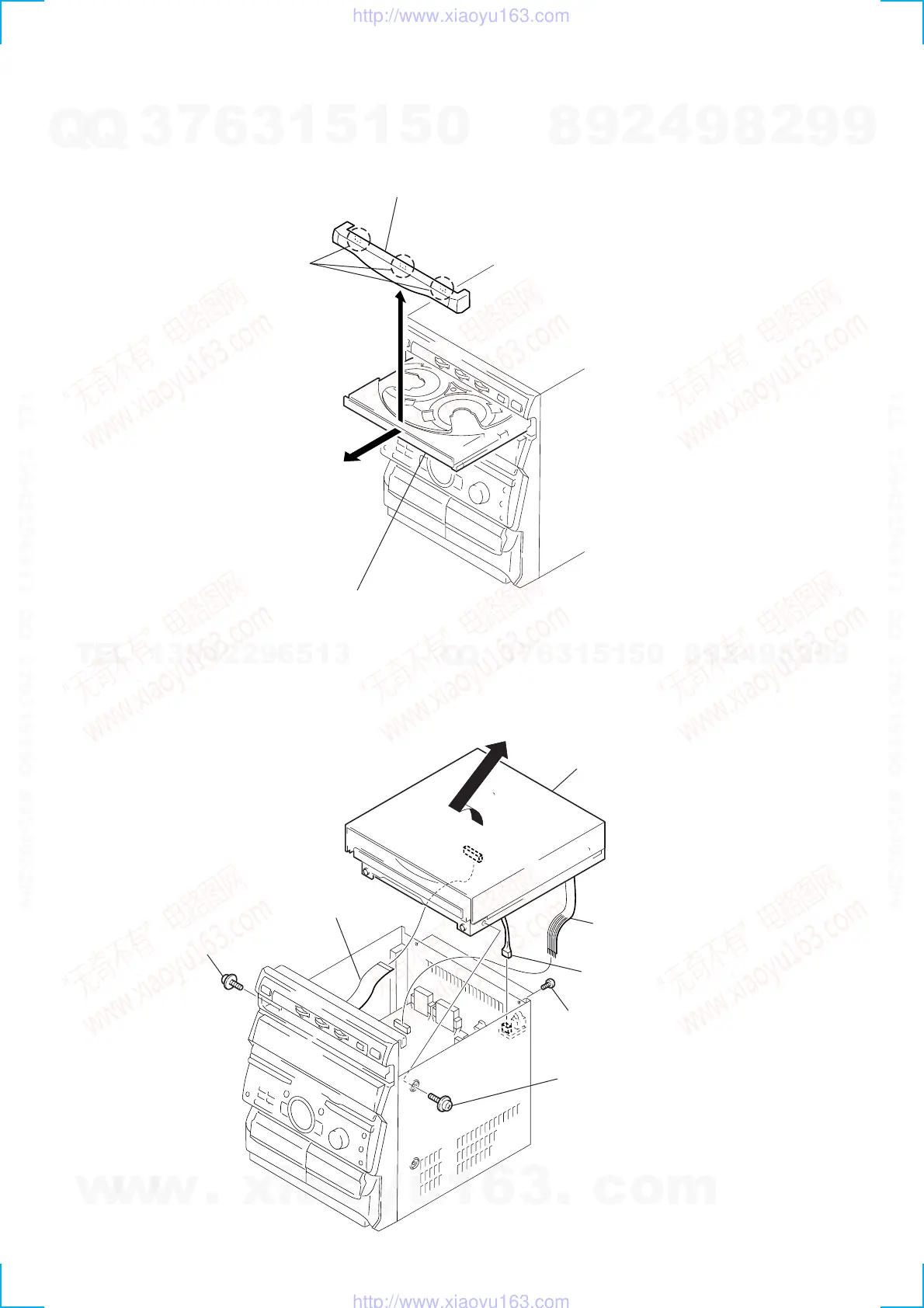

3-2. CD MECHANISM DECK
7 CD mechanism deck
4 Flat type wire (CN705)
2 Screw (PTPWH 3 × 10)
1 Screw (PTPWH 3 × 10)
3 Screws (BVTP 3 × 10)
6 Connector (CN703)
5 Harness (CN304
)
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. CD DOOR
1 Pull out the CD tray and remove the CD door
with releasing claws into the direction of arrow.
2 CD door
Three claws
