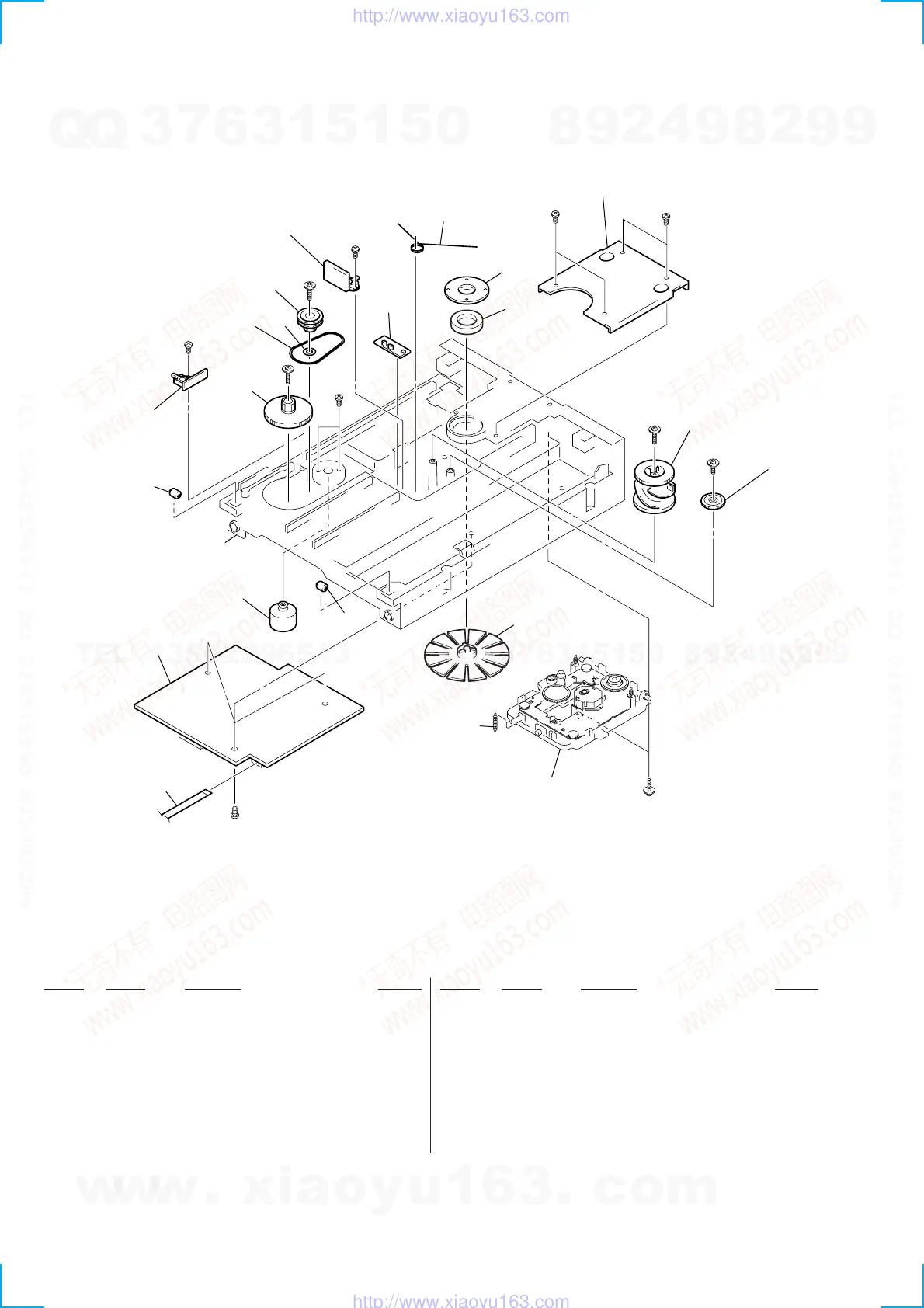

8-5. CD MECHANISM DECK SECTION-2
209
213
212
207
217
206
208
211
210
204
219
216
202
203
201
220
218
209
#17
#17
#17
#4
#4
#2
#2
not supplied
#2
#18
#18
Base unit block
#8
M104
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 1-769-856-11 WIRE (FLAT TYPE) (5 CORE)
202 4-221-897-01 CAM, UD
203 4-992-191-01 UD-GEAR
204 4-992-195-01 MAGNET
206 4-992-197-01 BELT, LOADING GEAR
207 4-992-198-01 PULLEY (B), GEAR
208 4-992-199-01 GEAR, SLIDE
209 4-992-200-01 ROLLER
210 4-992-192-01 SPRING, BRAKE CAM
211 4-992-193-01 LEVER, SW
212 1-674-791-11 SW(D) BOARD
213 1-674-790-11 SW(C) BOARD
215 4-992-201-01 WASHER, POLYETHYLENE
216 4-221-898-01 HOLDER, MAGNET
218 A-4426-391-A CDDECORD BOARD, COMPLETE
219 4-221-900-01 COVER, MAGNET
220 4-221-903-01 SPRING, MECHANICAL BASE
M104 X-4948-766-1 MOTOR ASSY (A) (TRAY)
