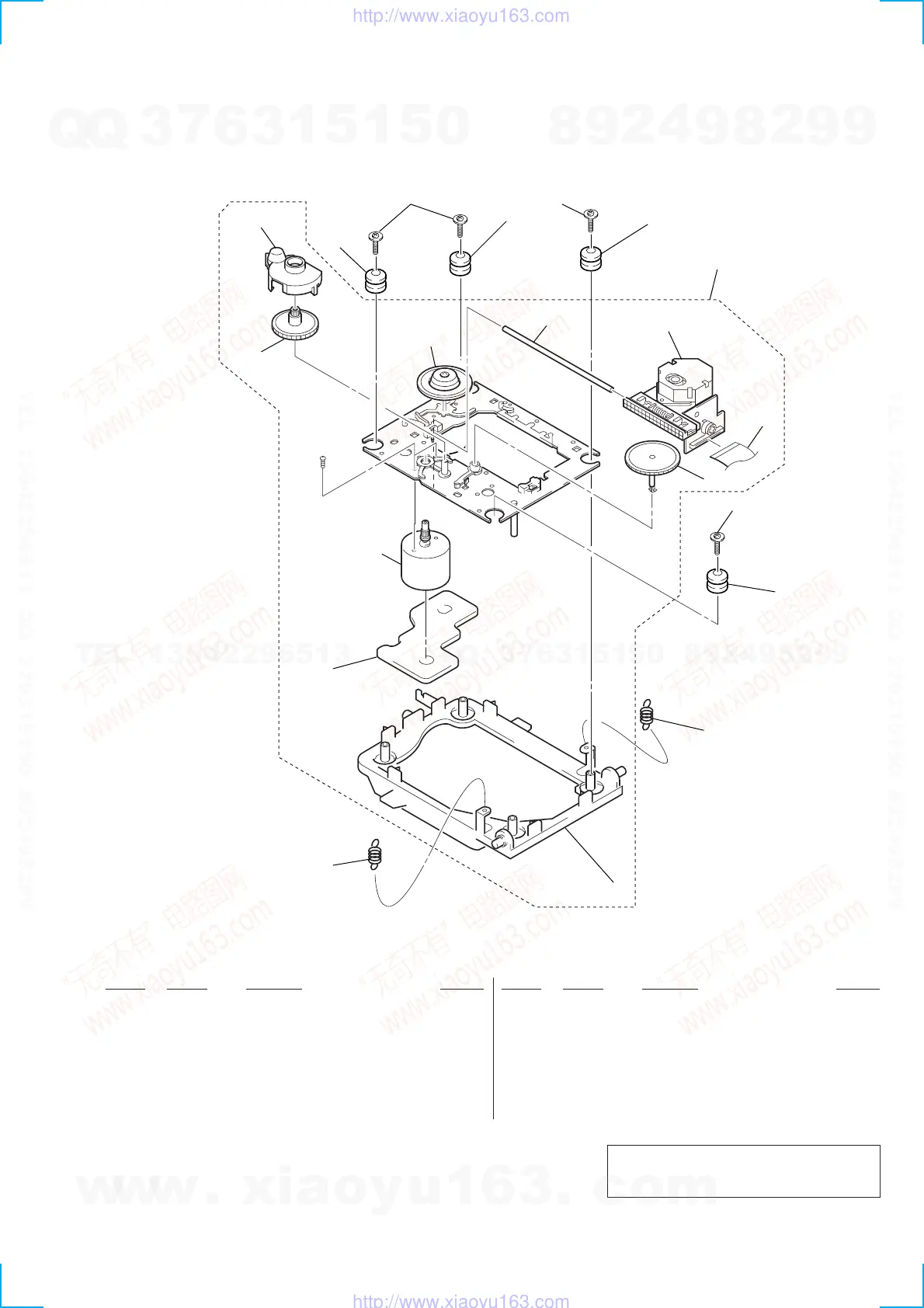

8-6. BASE UNIT SECTION (KSM-213ECM)
252
253
262
262
262
252
257
256
253
255
260
261
254
259
254
251
M102
#1
not supplied
not supplied
M101
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 4-992-164-01 BASE, KSM MECHANICAL
252 4-992-165-01 DAMPER (GREEN)
253 4-992-166-01 DAMPER (RED)
254 4-992-167-01 SPRING, MECHANICAL BASE
255 2-626-907-01 GEAR (A)(S)
256 2-626-908-01 SHAFT, SLED
257 2-627-003-02 GEAR (B)
259 1-639-678-12 MOTOR (6P)(S) BOARD
260 1-783-740-11 WIRE (FLAT TYPE)
! 261 8-820-054-03 OPTICAL PICK-UP KSM-213ECM/C2NP
262 3-319-501-51 CREW (+ PTPWH) (2.6 × 16)
M101 X-2625-877-1 MOTOR ASSY (SPINDLE)
M102 X-2625-769-1 MOTOR ASSY (SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
