Sony hcd-grx40av - Front Panel (B); Front Board, H;P Board

9

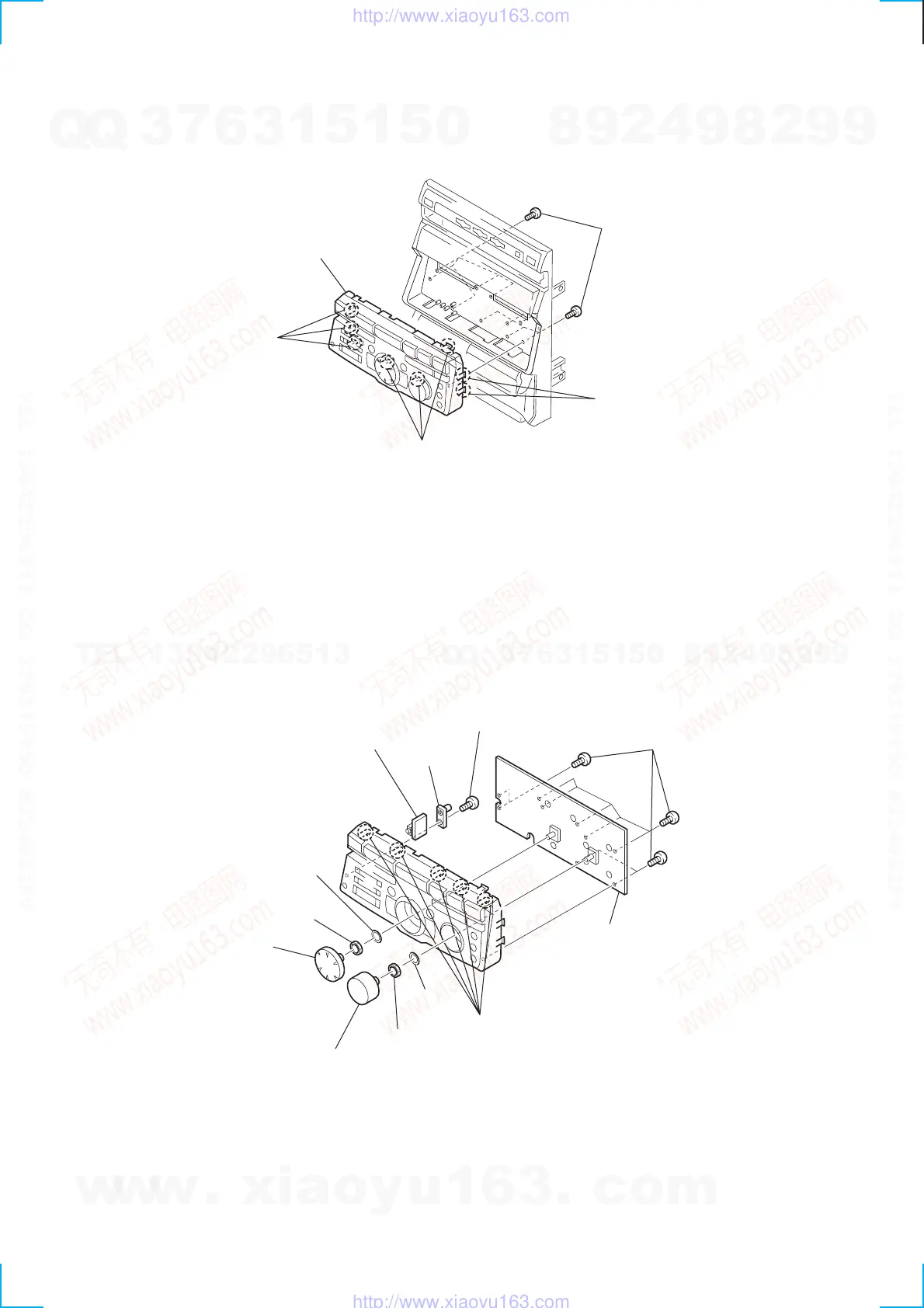

3-7. FRONT PANEL (B)
1 Screws (BVTP 3 × 10
)
2 Front panel (B)
Two claws
Three claws
Three claws
3-8. FRONT BOARD, H/P BOARD
7 Screw (BVTP 3 × 10)
5 Screws (BVTP 3 × 10)
6 Front board
2 Volume knob
1 Jog knob
9 H/P board
8 Holder
Washer
(VR602)
Five claws
Washer
(VR601)
4 Nut(VR602)
3 Nut
(VR601)
