Sony hcd-grx40av - Front Panel; Main Board

7

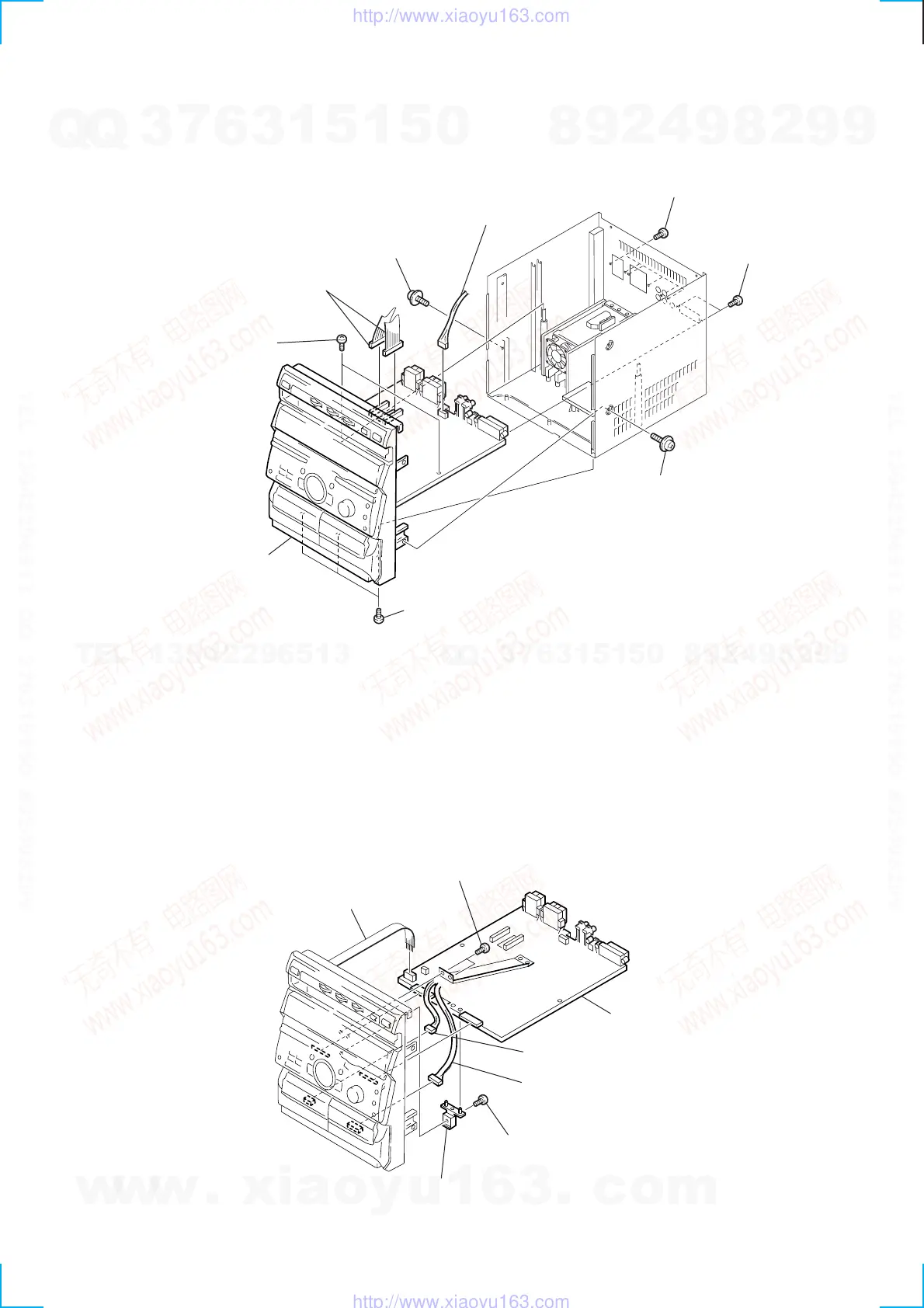

3-3. FRONT PANEL
2 Connector (CN502)
5 Screw
(PTPWH 3
× 10)
1 Connector (CN301)
(CN302)
6 Screws
(BVTP 3
× 10)
4 Screw (PTPWH 3 × 10)
3 Screws (BVTT 3 × 10)
9 Front panel
8 Screws (BVTP 3 × 10)
7 Screws (BVTP 3 × 14
)
3-4. MAIN BOARD
6 Screws (BVTP 3 × 10)
4 Screw (BVTP 3 × 8)
5 PWB stopper
1 Harness (CN303)
7 MAIN boar
d
2 Connector (CN201)
3 Connector (CN202)
