Sony hcd-grx40av - Schematic Diagram Front AMP Section

HCD-GRX40AV/RXD6AV
3434

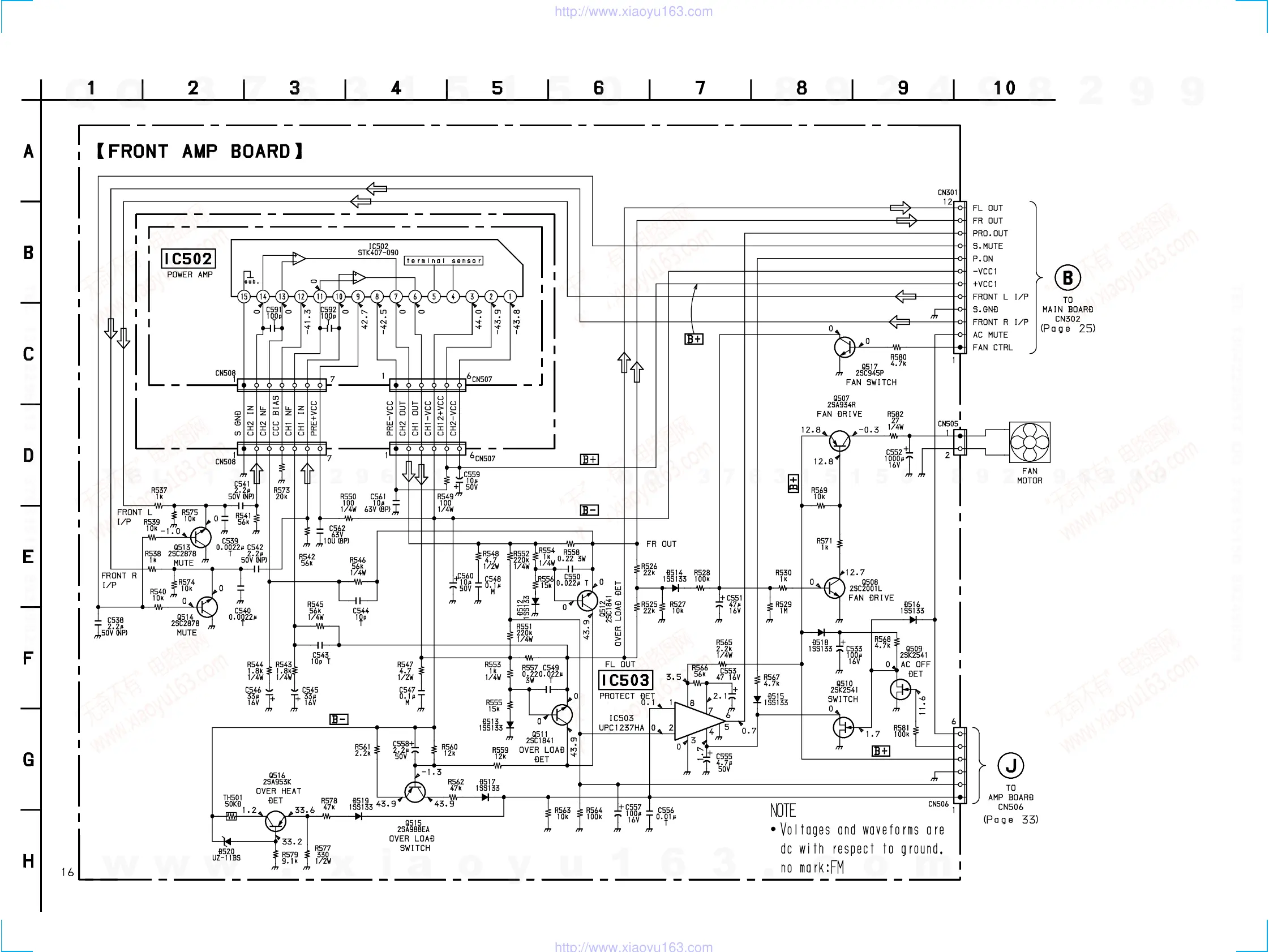

7-15. SCHEMATIC DIAGRAM FRONT AMP SECTION
• Refer to page 21 for Note on Schematic Diagrams.
