51
HCD-GX470/GX570

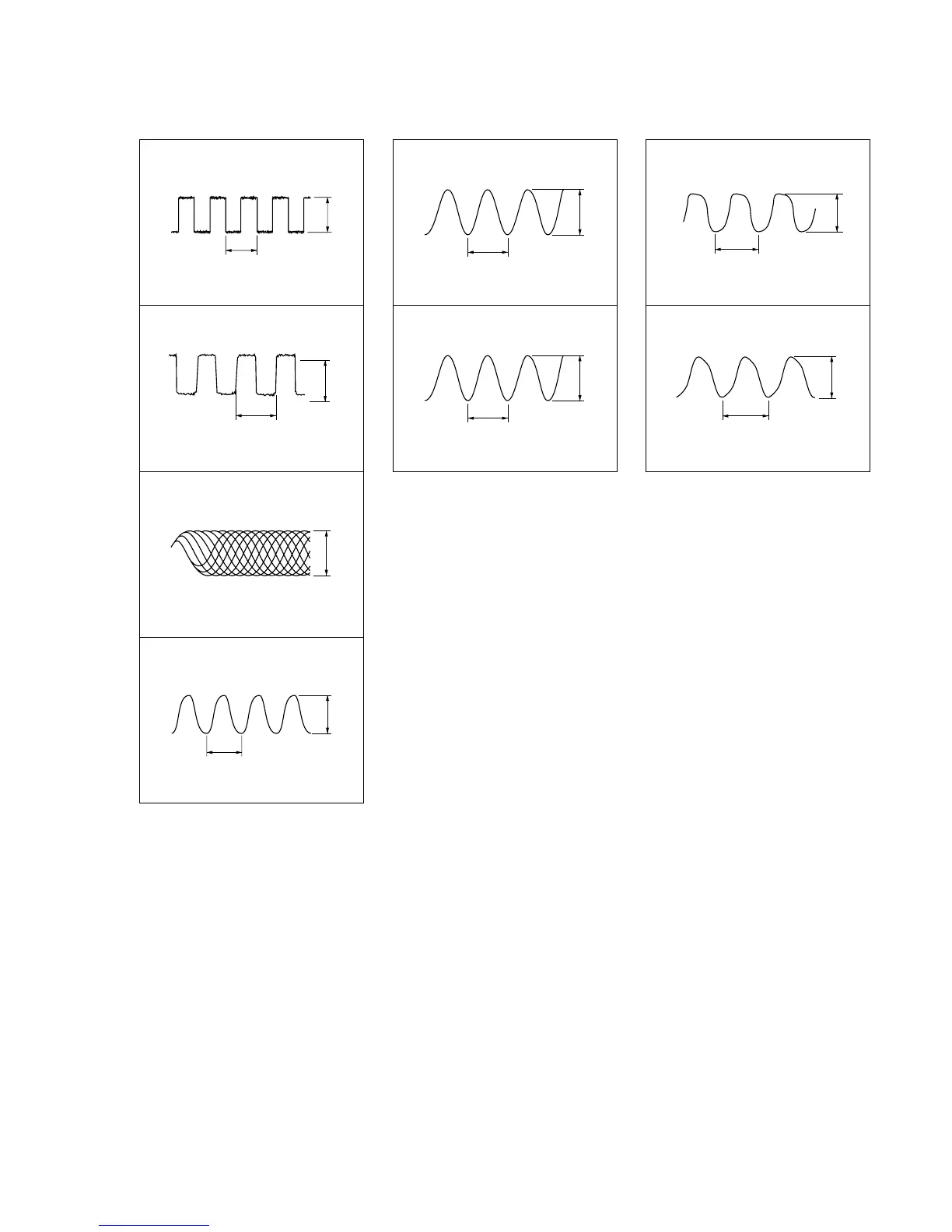

• Waveforms
– CD Board –
3
IC201 u; (RFACO)
(CD play mode)
200 mV/DIV, 500 ns/DIV
Approx.
900 mVp-p
22.8 µ s
3.3 Vp-p
1
IC201 1 (LRCK), 2 (LRCKI)
(CD play mode)
1 V/DIV, 10 µ s/DIV
2
IC201 5 (BCK), 6 (BCKI)
(CD play mode)
1 V/DIV, 200 ns/DIV
472 ns
3.3 Vp-p
4
IC201 <z/, (XTAO)
(CD play mode)
1 V/DIV, 20 ns/DIV
59 ns
2.3 Vp-p
wa
Q453 (Base) (REC mode)
500 mV/DIV, 5 µ s/DIV
17 µ s
1.3 Vp-p
ws
Q453 (Collector) (REC mode)
2 V/DIV, 5 µ s/DIV
17 µ s
6.1 Vp-p
ea
IC901 qa (XT2 (32.768KHZ))
1 V/DIV, 10 µ s/DIV
30.6 µ s
3 Vp-p
es
IC901 qf (X2 (16MHZ))
1 V/DIV, 20 ns/DIV
62.5 ns
2.5 Vp-p
– MAIN Board –– DECK Board –
