HCD-GX470/GX570
13

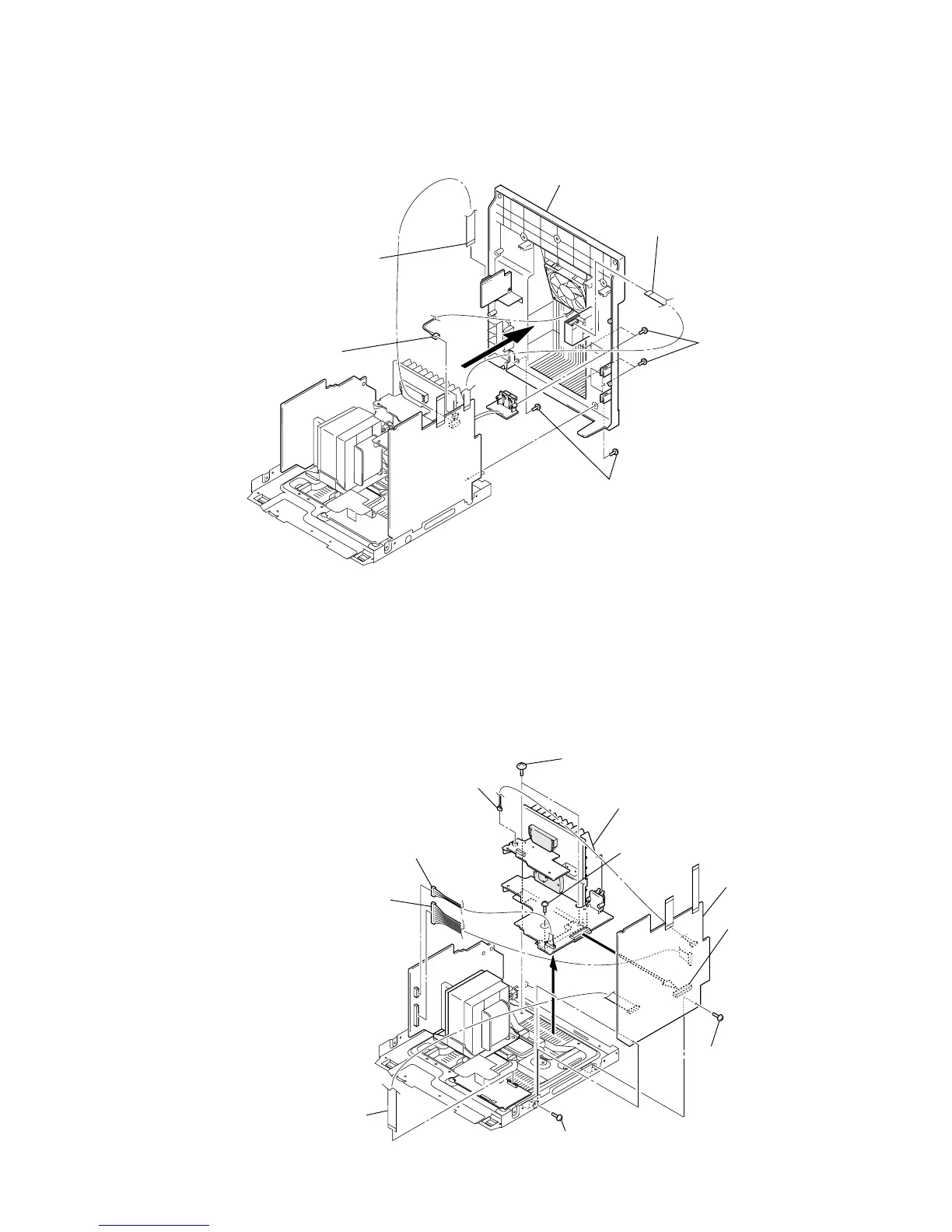

3-8. BACK PANEL SECTION
3-9. MAIN BOARD
4
four screws
(B3)
4
two screws
(B3)
5
back panel section
2
connector
(CN041)
1
flexible flat cable (9 core
)
(tuner (FM/AM))
3
flexible flat cable (15 core)
(CN001) (GX570)
3
screw
(BVTP3
×
8)
4
screw
(BV3)
6
3
screw
(BVTP3
×
8)
5
two screws
(BVTT4
×
8)
2
connector
(CN907)
1
flexible flat cable (11 core)
(CN008)
2
connector
(CN501)
7
connector
(CN031)
8
MAIN boar
d
9
POWER board,
SUB WOOFER board block
2
connector
(CN903)
