HCD-GX470/GX570
SECTION 8
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
12-658-299-61 LID (CD) (GX470)
12-658-299-71 LID (CD) (GX570)
23-363-099-32 SCREW (CASE 3 TP2)
32-599-855-01 CASE (SIDE-L) (GX470: US/GX570: US)
32-599-855-11 CASE (SIDE-L) (GX470: CND/GX570: CND)
43-254-143-11 SCREW (B3), (+) BV TAPPING
64-951-620-01 SCREW (2.6X8), +BVTP
8 2-599-854-01 CASE (TOP) (GX470: US/GX570: US)
8 2-599-854-11 CASE (TOP) (GX470: CND/GX570: CND)
9 2-599-856-01 CASE (SIDE-R) (GX470: US/GX570: US)
9 2-599-856-11 CASE (SIDE-R) (GX470: CND/GX570: CND)
10 2-675-793-01 COVER (OP)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-S

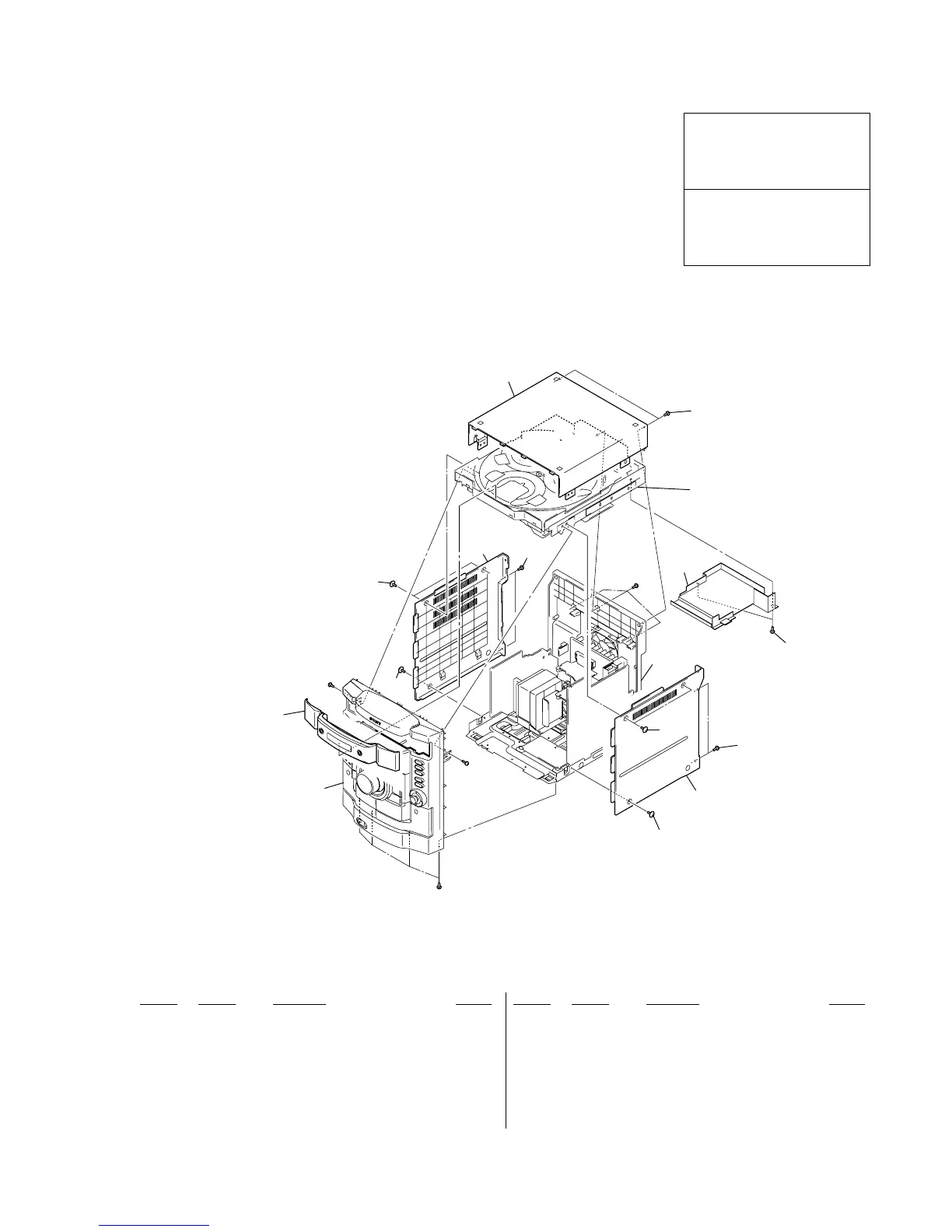

8-1. CASE SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
CND : Canadian model
1
#1
#1
#1
#1
PANEL board section
MAIN board
section
CD mechanism dec
k
section-1
2
2
2
2
3
4
4
4
6
10
8
9
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
