HCD-GX470/GX570

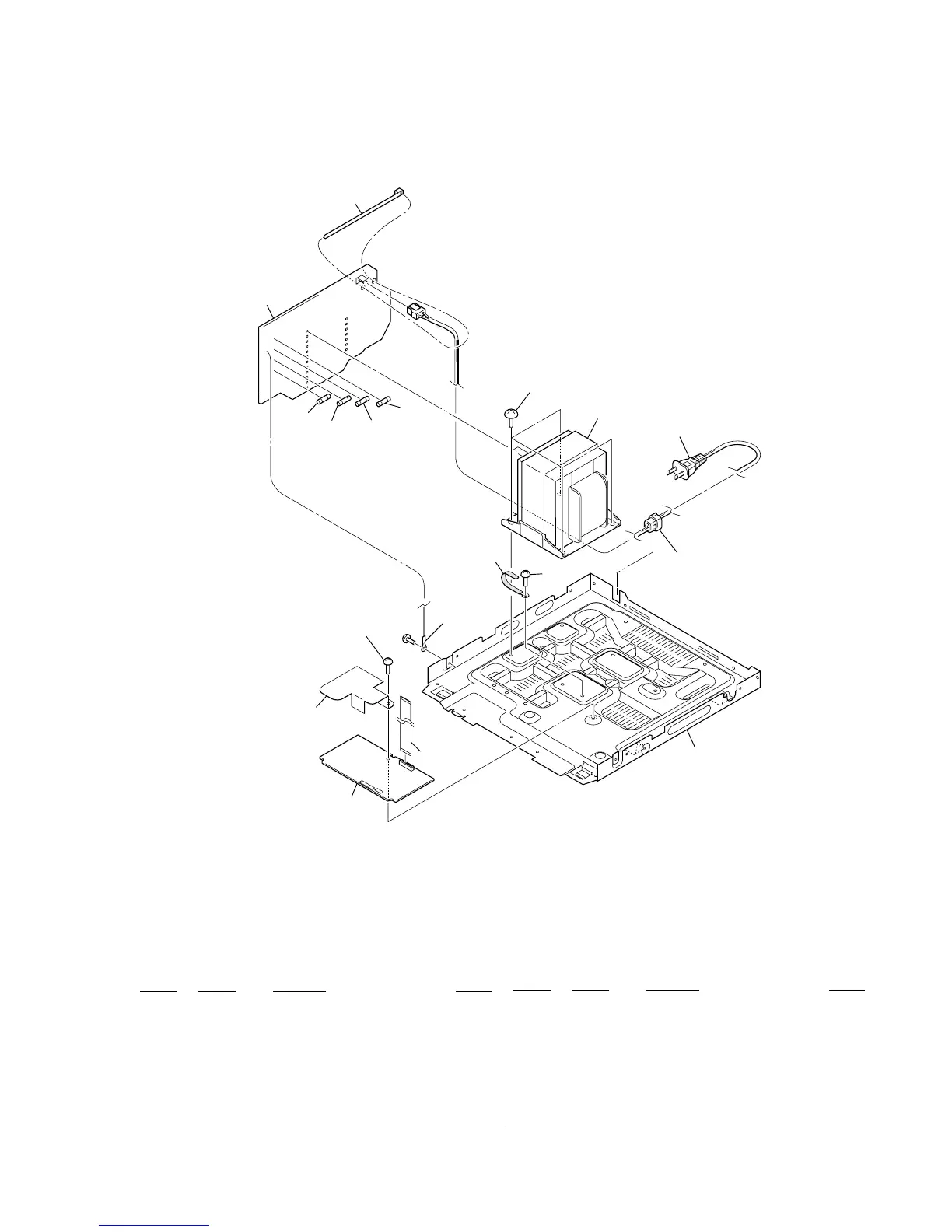

8-7. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 A-1171-482-A DECK BOARD, COMPLETE
302 3-077-331-01 +BV3 (3-CR)
303 1-831-928-21 CABLE, FLEXIBLE FLAT (11 CORE)
304 4-900-386-01 SCREW
305 3-703-244-00 BUSHING (2104), CORD
0 306 1-830-190-11 CORD, POWER
307 A-1163-241-A TRANSFORMER BOARD, COMPLETE
308 3-701-748-00 CLAMP
0F904 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0F905 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0F906 1-532-465-33 FUSE (T3.15AL/250V)
0F907 1-532-465-33 FUSE (T3.15AL/250V)
0PT901 1-443-924-11 TRANSFORMER, POWER (GX470)
0PT901 1-443-925-11 TRANSFORMER, POWER (GX570)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
301
#1
not
supplied
not supplied
not supplied
PT901
F904
F905
F906
F907
302
303
304
305
306
307
308
not
supplied
302
