HCD-GX470/GX570
11

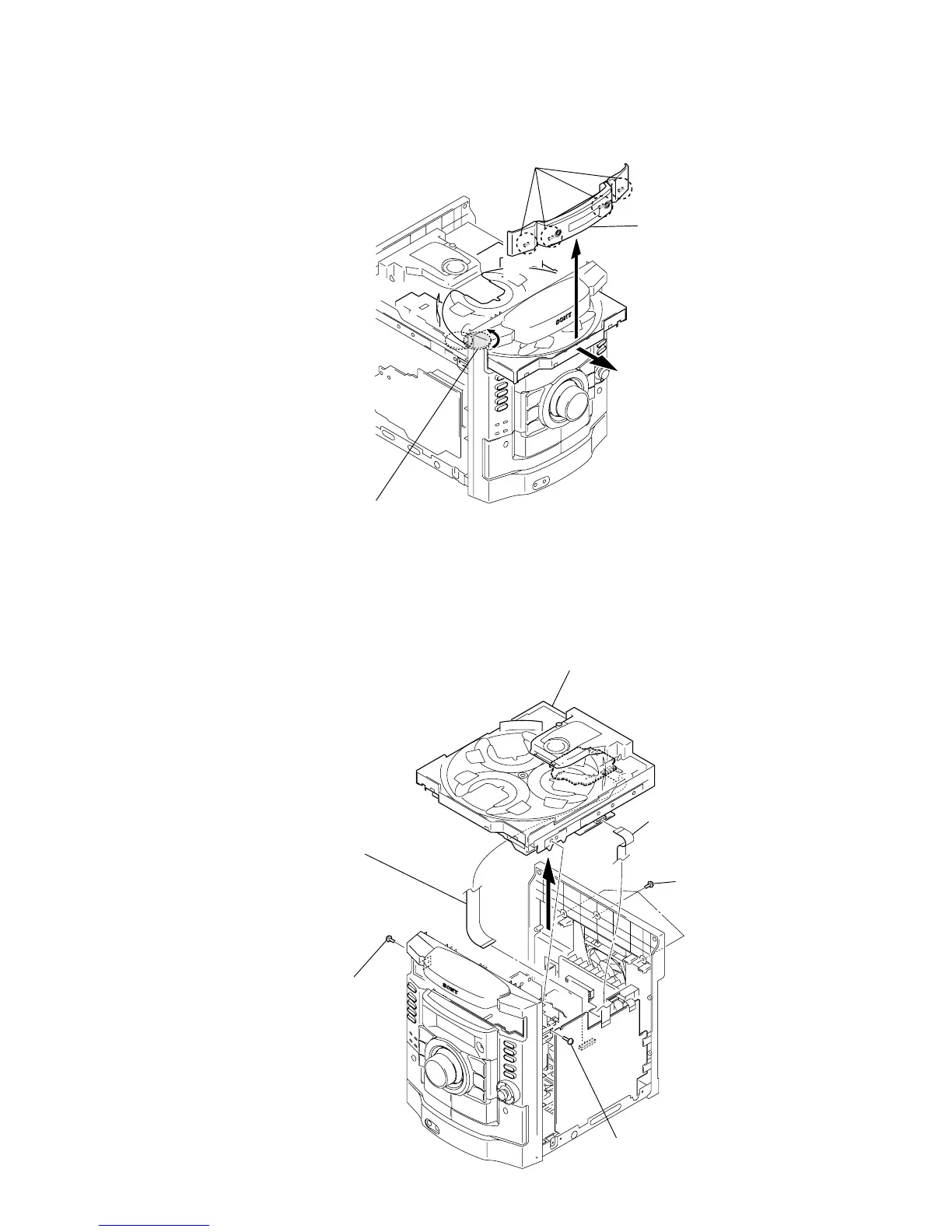

3-4. LID (CD)
3-5. CD MECHANISM DECK
(CDM74KF-K6BD83S)
1
Turn the gear (loading A)
to the direction of the arrow.
3
four claws
2
4
lid (CD
)
3
three screws
(BVTP3
×
8)
3
screw (BVTP3
×
8)
3
screw
(BVTP3
×
8)
4
CD mechanism deck
(CDM74KF-K6BD83S)
1
flexible flat cable (13 core
)
(CN701)
2
flexible flat cable (23 core)
(CN301)
