67
HCD-GX470/GX570

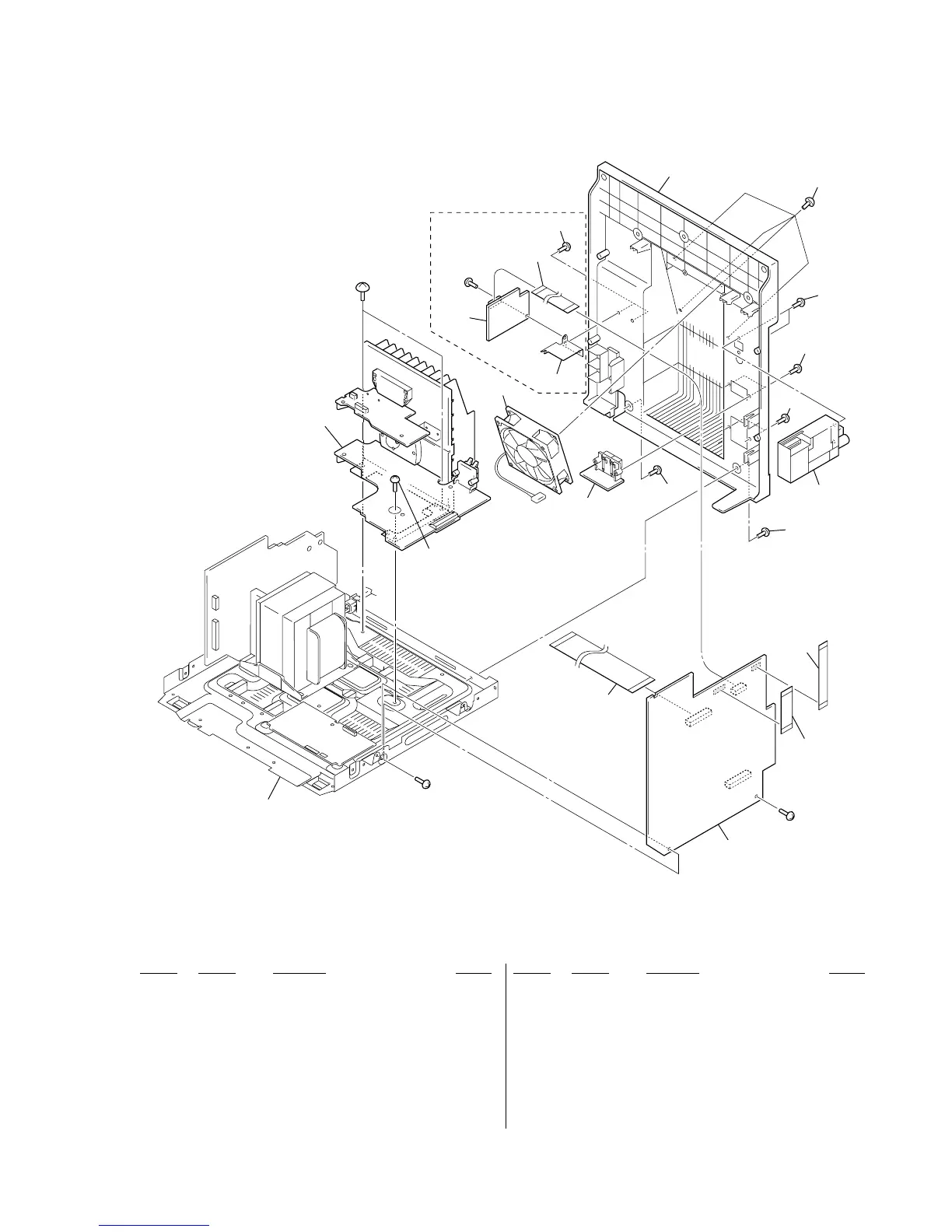

8-5. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 2-658-298-51 PANEL, BACK (GX470: CND)
201 2-664-764-11 PANEL, BACK (GX570: US)
201 2-664-764-21 PANEL, BACK (GX470: US)
201 2-664-764-71 PANEL, BACK (GX570: CND)
202 3-254-143-11 SCREW (B3), (+) BV TAPPING
203 3-252-829-01 SCREW (B3), (+) BV TAPPING
204 1-693-713-11 TUNER (FM/AM)
205 1-831-769-21 CABLE, FLEXIBLE FLAT (9 CORE)
206 1-831-786-21 CABLE, FLEXIBLE FLAT (13 CORE)
207 A-1163-189-A MAIN BOARD, COMPLETE (GX570)
207 A-1163-190-A MAIN BOARD, COMPLETE (GX470)
208 1-831-771-21 CABLE, FLEXIBLE FLAT (23 CORE)
209 3-077-331-01 +BV3 (3-CR)
211 A-1167-407-A XM BOARD, COMPLETE (GX570)
212 1-832-848-21 WIRE (FLAT TYPE) (15 CORE) (GX570)
M001 1-787-344-11 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
201
#1
#1
#2
#1
POWER board,
SUB WOOFER board section
chassis section
M001
not
supplied
202
202
211
202
202
202
202
203
204
205
206
207
208
212
209
not supplied
(SW-SP board)
(GX570)
