HCD-GX470/GX570
12

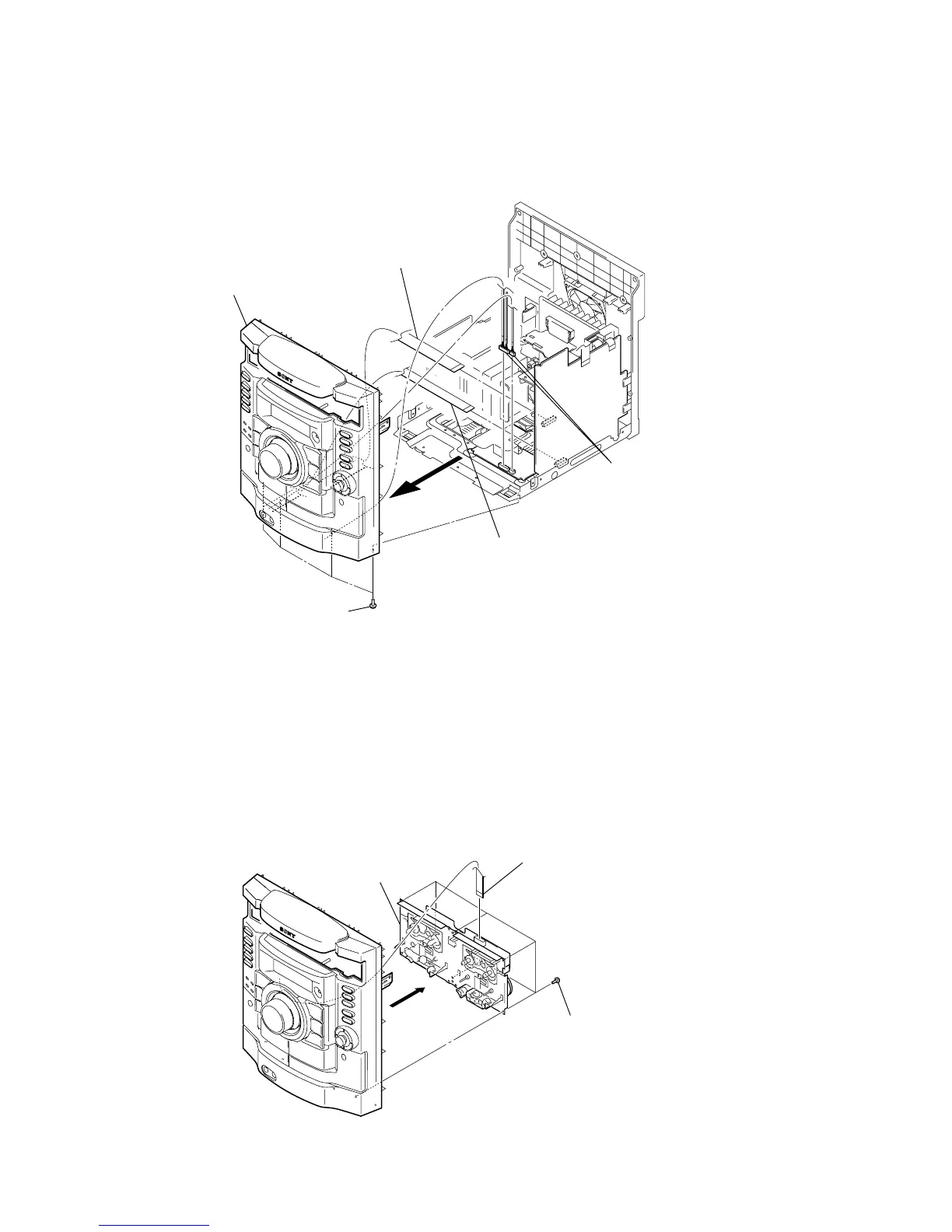

3-6. FRONT PANEL BLOCK
3-7. MECHA DECK (CWN42FF609)
4
four screws
(BVTP3
×
8)
5
front panel block
1
flexible flat cable (19 core)
(CN991)
3
two connectors
(CN301, CN302
)
2
flexible flat cable (9 core)
(CN061)
2
six screws
(BVTP2.6
×
8)
3
mecha deck
(CWN42FF609)
1
flexible flat cable (11core)
