Sony HCD-GX570 - Cd Deck Receiver Component - PANEL Board Section

64
HCD-GX470/GX570

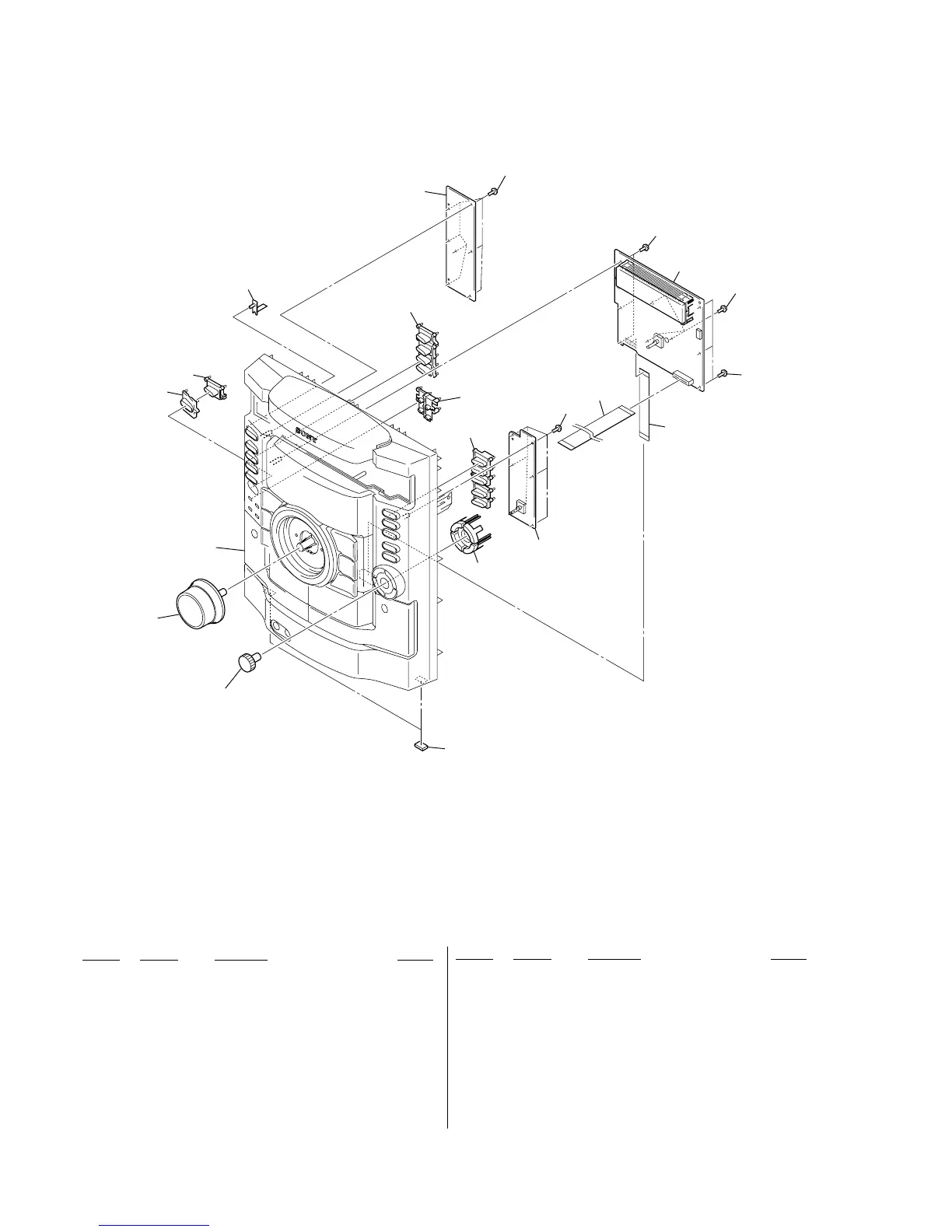

8-2. PANEL BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 2-658-294-11 KNOB (JOG)
52 2-658-293-01 KNOB (VOL B)
53 2-658-279-01 INDICATOR (POWER)
54 A-1159-677-A KEY LEFT BOARD, COMPLETE
55 4-951-620-01 SCREW (2.6X8), +BVTP
56 2-658-275-01 KEY (POWER) (I/1, CD, TUNER/BAND,
TAPE A/B, AUDIO IN)
57 2-658-274-01 KEY (REC)
58 2-658-276-01 KEY (CD) (DISC 1, DISC 2, DISC 3,
DISC SKIP/EX-CHANGE, A)
59 2-658-281-01 KEY (JOG)
(GROOVE, SURROUND, ENTER, EQ BAND)
60 A-1159-681-A KEY RIGHT BOARD, COMPLETE
61 1-831-952-21 CABLE, FLEXIBLE FLAT (19 CORE)
62 1-831-779-21 CABLE, FLEXIBLE FLAT (11 CORE)
63 A-1163-173-A PANEL BOARD, COMPLETE
64 4-225-252-01 CUSHION (FOOT)
65 2-658-277-01 RING (SUB WOOFER)
66 2-658-278-01 KEY (SUB WOOFER)
51
lid (top) section
52
53
54
55
55
55
55
55
56
57
58
59
60
64
61
62
63
65
66
