HCD-GX470/GX570
SECTION 2
GENERAL
This section is extracted from
instruction manual.
– GX470 –
This manual mainly explains operations using
the remote, but the same operations can also be
performed using the buttons on the unit having
the same or similar names.
1 ?/1 (power) button
Press to turn on the system.
2
STANDBY indicator
Lights up when the system is turned off.
3
CD button
Press to select the CD function.
TUNER/BAND button
Press to select the TUNER function. Press
to select FM or AM reception mode.
Unit: TAPE A/B button
Remote: TAPE button
Press to select the TAPE function. Press to
select TAPE A or TAPE B.
AUDIO IN button
Press to select the AUDIO IN function.
FUNCTION button
Press to select the function.
4
SUBWOOFER indicator
Lights up when the subwoofer is turned
on.
5
SUBWOOFER button
Press to turn on and off the subwoofer.

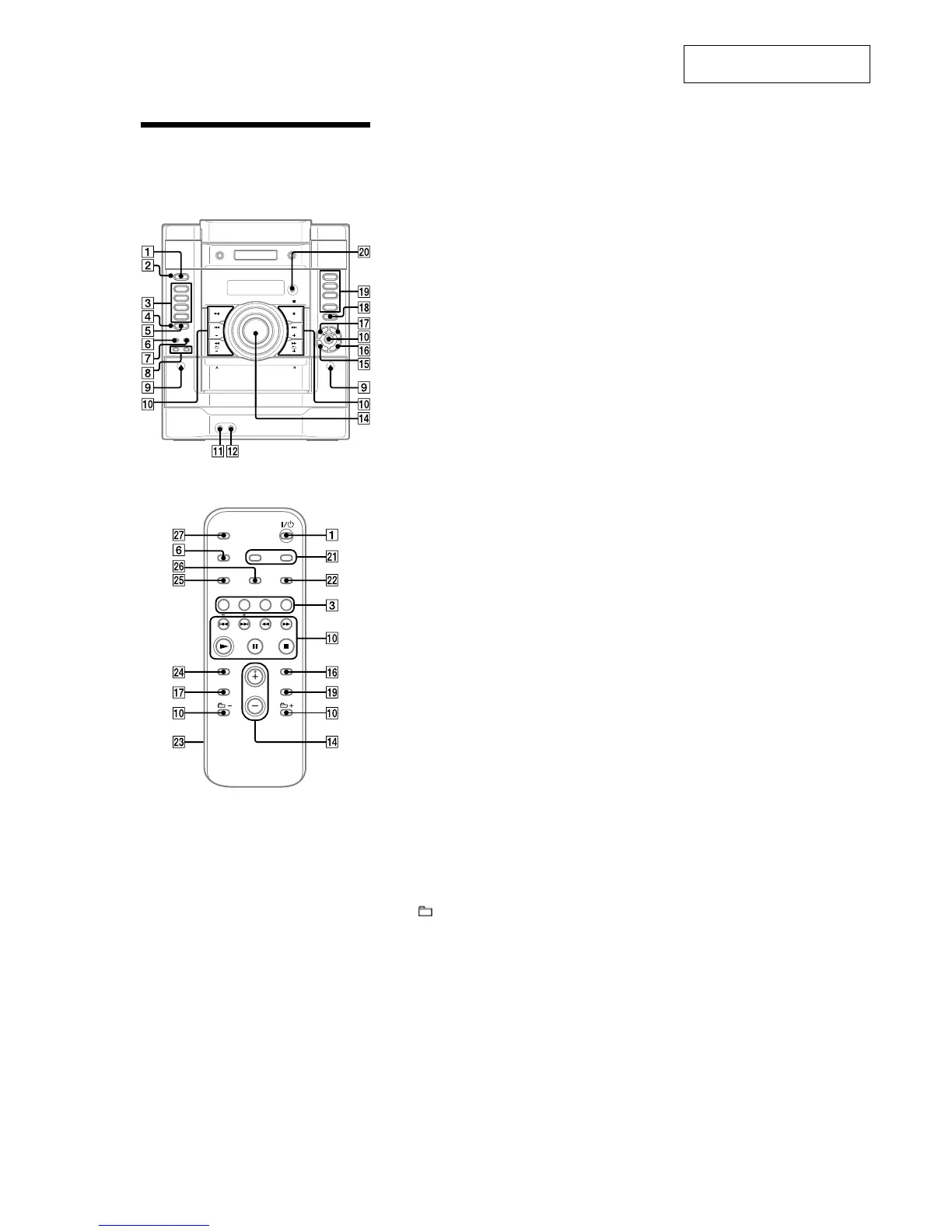

Guide to parts and
controls
Unit
Remote
6
DISPLAY button
Press to change the information on the
display.
7
PLAY MODE/TUNING MODE
button
Press to select the play mode of a CD,
MP3 or tape. Press to select the tuning
mode.
8
Buttons for synchro recording or
manual recording
REC PAUSE/START button,
CD SYNC button
Press to record on a tape.
9
PUSH A utton
Press to insert or eject a tape.
q;
Playback buttons
Unit:
HS (play/pause) button
Remote:
N (play) button,
X (pause) button
Press to start or pause playback.
x (stop) button
Press to stop playback.
./> (go back/go forward)
button
Press to select a track or file.
Unit: TUNING +/– button
Remote: +/– (tuning) button
Press to tune in the desired station.
(page 11)
Press to select a folder on an MP3 disc.
m/M (rewind/fast forward)
button
Press to find a point in a track or file.
MULTI JOG dial ( ./> (go
back/go forward), +/– (tuning))
Turn to select a track or file. Turn to
tune in the desired station. (Same as the
./>, +/− buttons on the remote)
qa
PHONES jack
Connect the headphones.
qs
AUDIO IN jack
Connect to an audio component.
qf
Unit: VOLUME control
Turn to adjust the volume.
Remote: VOLUME +/– button
Press to adjust the volume.
qg
EQ BAND button
Press to select the frequency band.
qh
ENTER button
Press to enter the settings.
qj
Sound buttons
Unit: GROOVE button,
SURROUND button
Remote: EQ button
Press to select the sound.
qk
A (open/close) button
Press to insert and eject a disc.
ql
DISC 1 – 3 button
Press to select a disc. Press to switch to
the CD function from other function.
Unit: DISC SKIP/EX-CHANGE
button
Press to select a disc. Press to exchange
a disc while playing.
Remote: DISC SKIP button
Press to select a disc.
w;
Remote sensor
wa
CLOCK/TIMER SELECT button
CLOCK/TIMER SET button
Press to set the clock and the timers.
ws
REPEAT/FM MODE button
Press to listen to a disc, a single track
or file repeatedly. Press to select the FM
reception mode (monaural or stereo).
wd
Battery compartment lid
wf
CLEAR button
Press to delete a pre-programmed track.
wg
TUNER MEMORY button
Press to preset the radio station.
wh
PLAY MODE/TUNING MODE
button
Press to select the play mode of a CD,
MP3 or tape.
Press to select the tuning mode.
wj
SLEEP button
Press to set the Sleep Timer.
+/– (select folder) button
