– 17 –

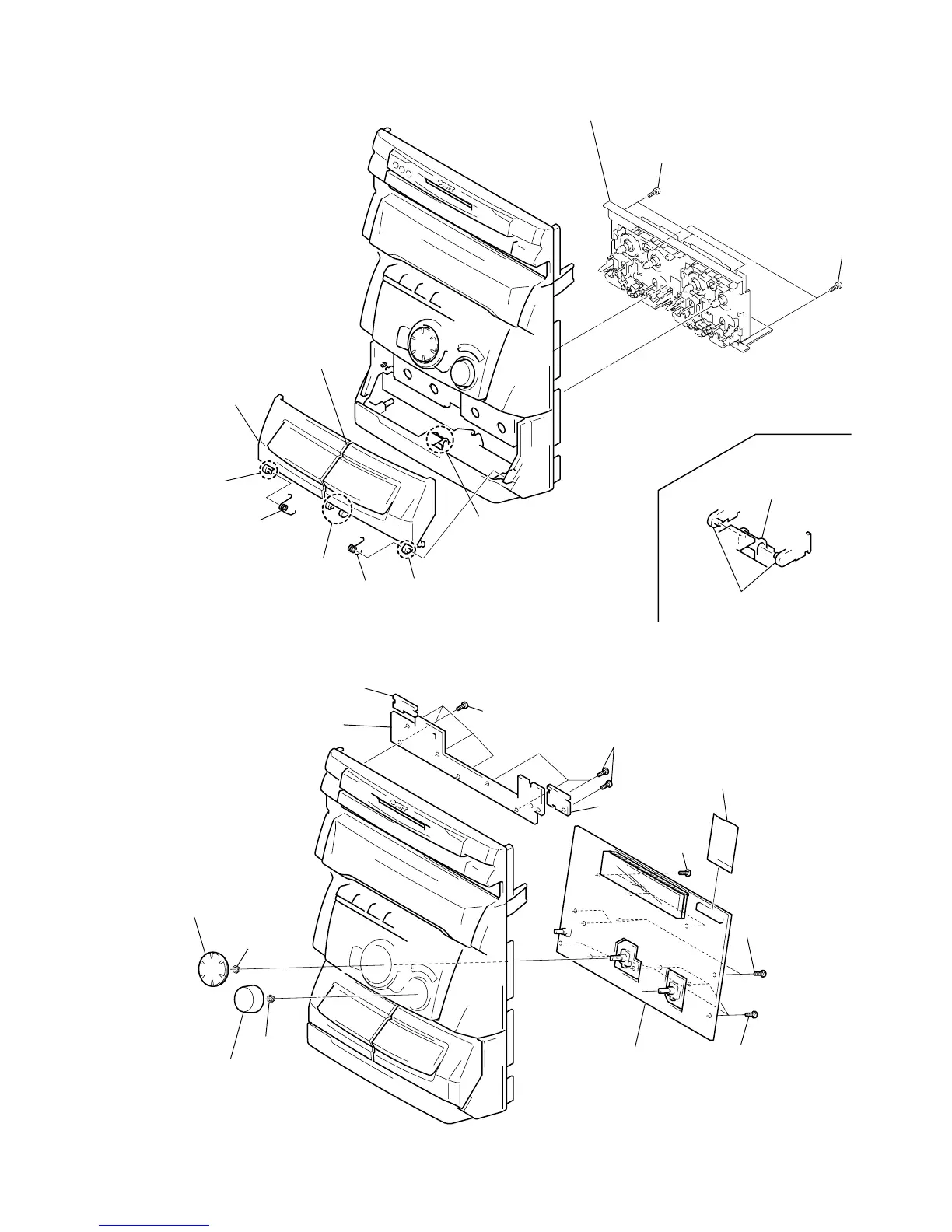

3-3. CASSETTE LID AND TAPE MECHANISM
3-4. MD LINK, POWER SW, CD PANEL BOARDS AND DISPLAY BOARD
1 Release
3 Cassette lid (R) block
4 Cassette lidr (L) block
Portion A
Portion A
5 Spring (R)
7 Two screws
(BVTP2.6x8)
8 Three screws
(BVTP2.6x8)
9 Tape mechanism
6 Spring (L)
2 Releas
Note for installation
Portion
B
Portion B
6 Knob (Jog)
7 Knob (Vol)
!¡ Three screws
(BVTP2.6x8)
5 CD Panel board
(Two claws)
4 Power SW board
(Two claws)
3 MD link SW board
(Three claws)
!¢ Display board
0 Flat type wire
(CN601)
1 Four screws
(BVTP2.6x8)
2 Four screws
(BVTP2.6x8)
!™ Four screws
(BVTP2.6x8)
!£ Six screws
(BVTP2.6x8)
9 Nut
8 Nut
