Sony HCD-MDX10 - Compact Disk Deck Receiver Component - Printed Wiring Board - Display Section

HCD-MDX10
– 87 –
– 88 –

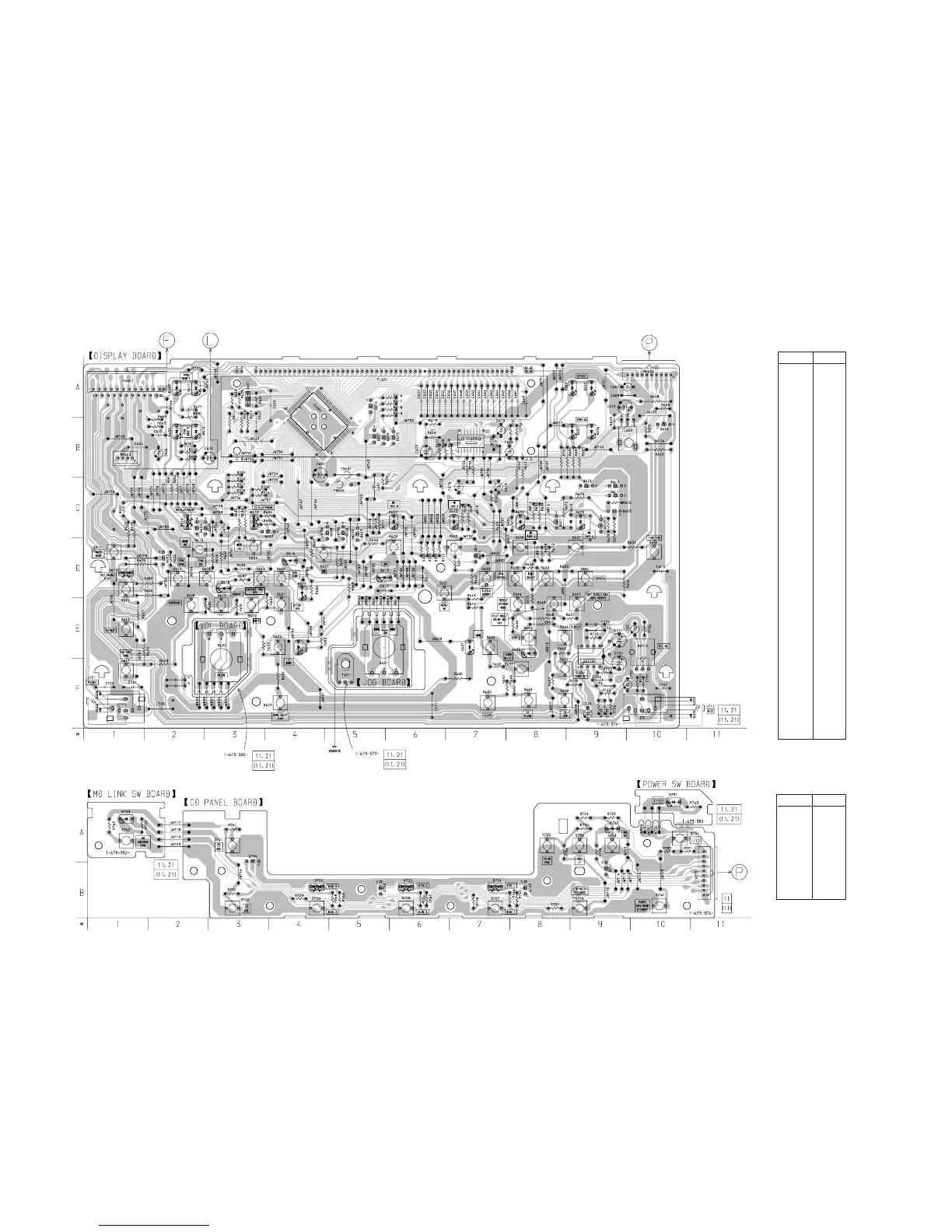

8-19. PRINTED WIRING BOARD – DISPLAY SECTION –
• See page 40 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D610 C-9
D611 A-2
D612 B-2
D613 D-1
D614 C-2
D615 C-3
D616 D-4
D617 D-4
D618 D-3
D619 D-6
D620 E-4
D621 E-7
D622 C-6
D623 C-7
D624 C-8
D625 C-9
D626 B-9
D627 A-9
D628 E-8
D629 A-2
D630 B-2
D631 B-9
D632 A-9
IC601 A-4
IC602 B-10
IC603 B-7
IC712 E-9
Q601 C-8
Q602 C-9
Q603 C-9
Q604 C-3
Q605 D-2
Q606 C-2
Q607 C-4
Q608 C-5
Q609 C-5
Q610 C-5
Q611 C-9
Q612 C-9
Q613 C-9
Q614 B-10
Q615 D-7
Q616 A-5
Q617 B-5
Q618 B-6
Q619 B-6
Ref. No. Location
• Semiconductor
Location
D751 A-10
D752 A-9
D753 A-1
D754 B-7
D755 B-6
D756 B-4
Q751 B-9
Q752 B-8
Q753 B-5
Q754 A-3
(Page 75) (Page 101)
(Page 88)
(Page 88)
