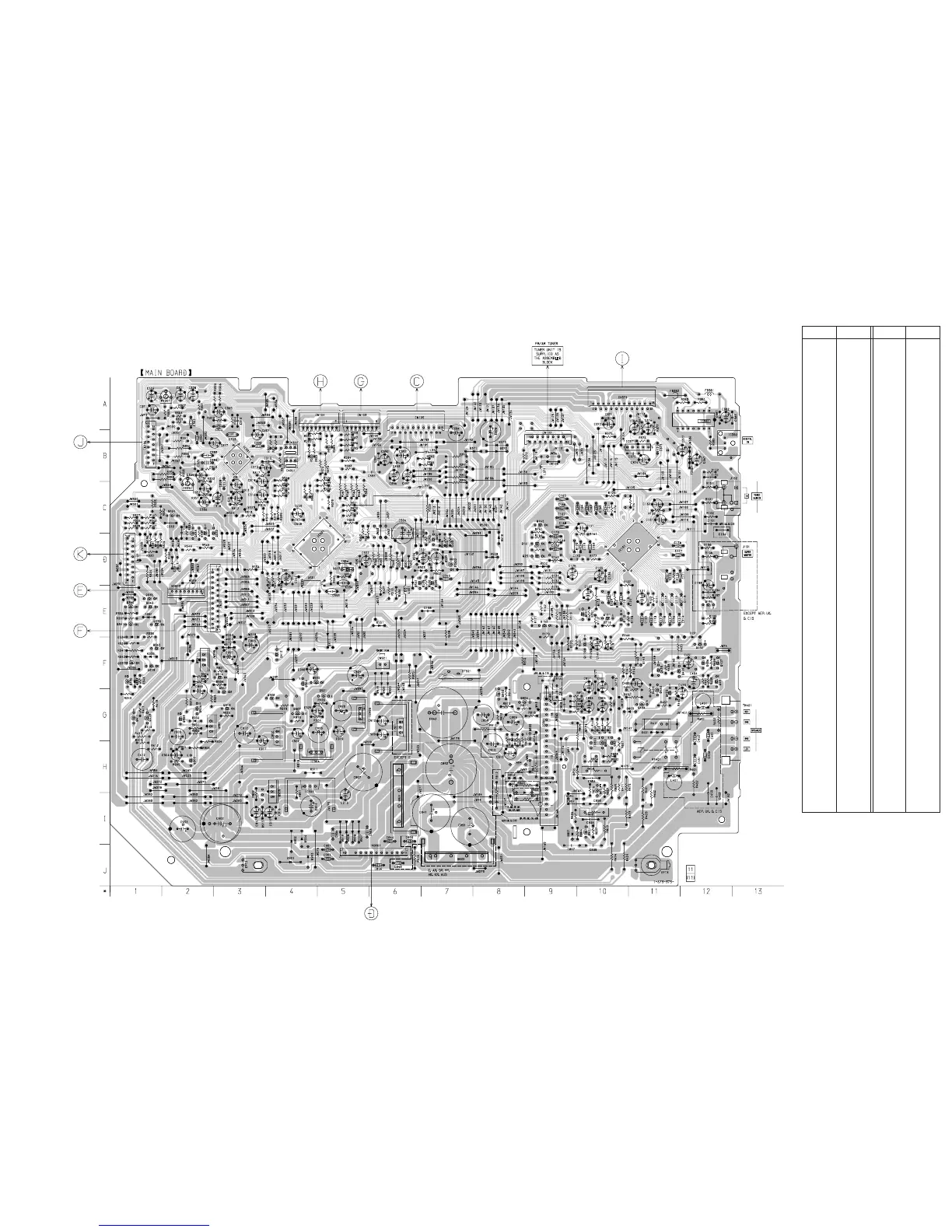

8-12. PRINTED WIRING BOARD – MAIN SECTION –
• See page 40 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D141 F-11
D191 F-12
D331 E-1
D333 F-1
D334 F-1
D335 F-1
D371 B-8
D372 B-8
D373 B-8
D401 G-11
D411 F-5
D501 D-6
D502 D-6
D503 D-7
D504 D-6
D505 D-7
D506 D-7
D507 C-8
D508 D-2
D509 D-8
D510 D-8
D551 E-6
D552 D-10
D801 I-9
D802 H-9
D803 G-11
D804 H-8
D831 I-6
D832 J-7
D851 I-10
D852 H-8
D901 J-4
D902 I-4
D903 J-4
D904 I-4
D905 H-2
D906 G-2
D907 I-5
D908 I-5
D909 I-5
D910 I-5
D911 H-4
D915 I-3
D917 F-3
D918 H-4
D919 F-6
D920 F-6
D921 F-6
IC101 D-10
IC301 B-3
IC371 B-11
IC381 A-12
IC382 B-13
IC501 D-5
IC502 D-7
IC801 G-9
IC901 G-6
IC902 G-4
IC903 H-4
IC904 H-4
IC905 G-5
Q111 E-10
Q112 E-10
Q113 F-10
Q161 D-10
Q162 C-9
Q163 E-9
Q191 E-12
Q192 F-12
Q201 E-10
Q251 D-10
Q331 C-2
Q332 C-2
Q333 C-2
Q334 C-2
Q335 E-1
Q336 F-1
Q337 F-1
Q338 E-1
Q339 F-1
Q340 E-1
Q341 E-1
Q342 F-1
Q343 E-1
Q411 G-1
Q412 F-4
Q413 G-1
Q431 F-12
Q432 G-11
Q433 G-11
Q434 G-11
Q435 F-11
Q436 F-12
Q437 F-12
Q439 F-12
Q501 D-7
Q508 D-7
Q509 D-7
Q801 I-10
Q803 G-8
Q804 G-9
Q805 G-9
Q831 H-10
Q832 H-10
Q851 H-10
Q901 G-2
Q902 H-2
Q903 G-2
Q904 F-4
Q905 F-4
Q906 G-2
Q907 G-4
Q908 G-4
Q909 H-4
Q913 G-3
Q914 F-3
Q921 G-5
Q951 F-2
Q952 G-3
