SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

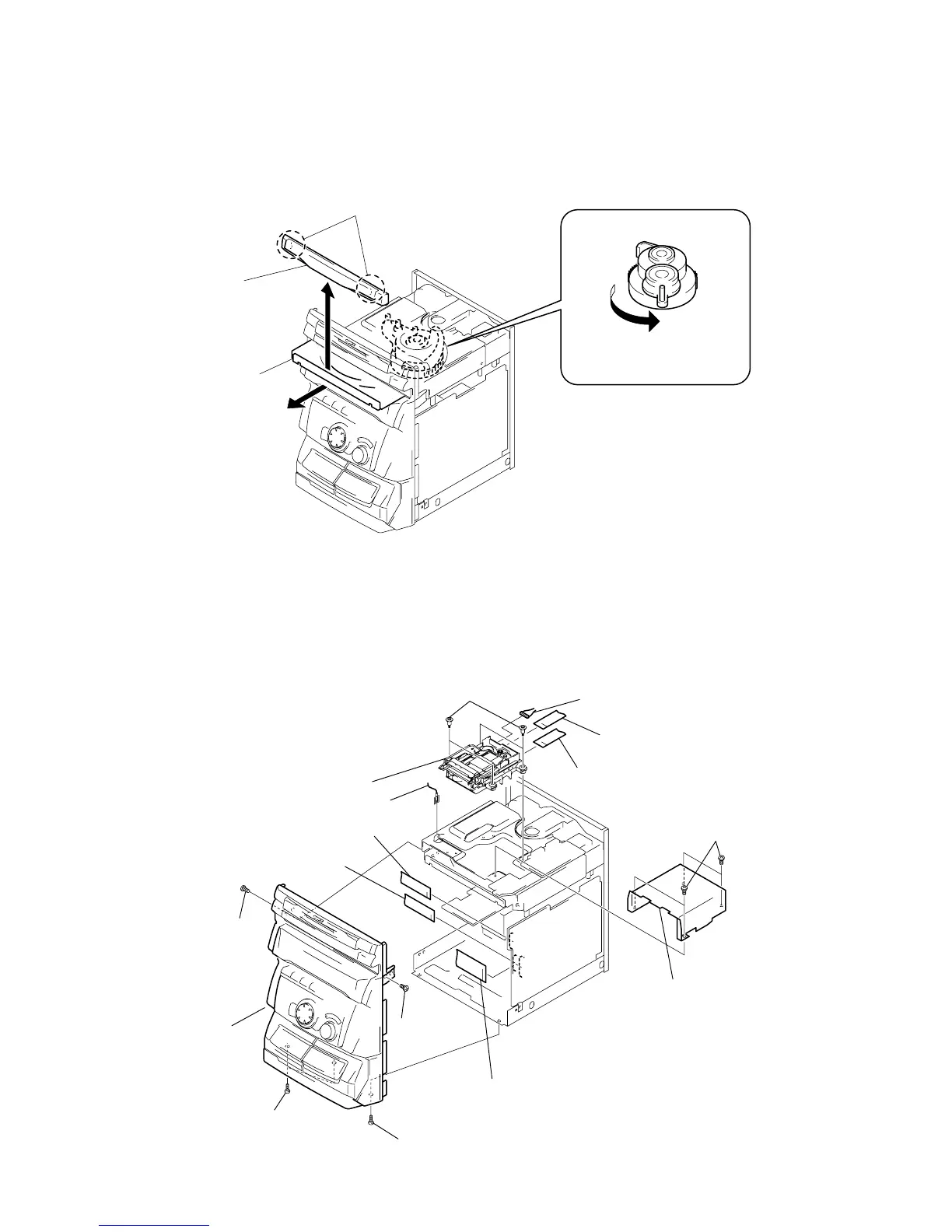

3-1. LOADING PANEL
3-2. MD MECHANISM AND FRONT PANEL
3 Loading panel
2 Pull-out the disc tray.
Claws
1 Turn the cam to the direction
of arrow.
9 Screw
(
BVTT3x6
)
0 Two screws
(BVTT3x6)
!§ Front panel
!™ Screw (BVTP 3x10)
!¡ Screw
(BVTP 3x10)
1 Four screws
(BVTP 3x8)
3 Wire
4 Flat type wire
(CN102)
6 Connector
(CN601)
5 Flat type wire
(CN103)
!£ Flat type wire
(CN501)
!¢ Flat type wire
(CN304)
!∞ Flat type wire
(CN303)
7 Four step screws
8 MD mechanism
2 Bracket (MDM)
