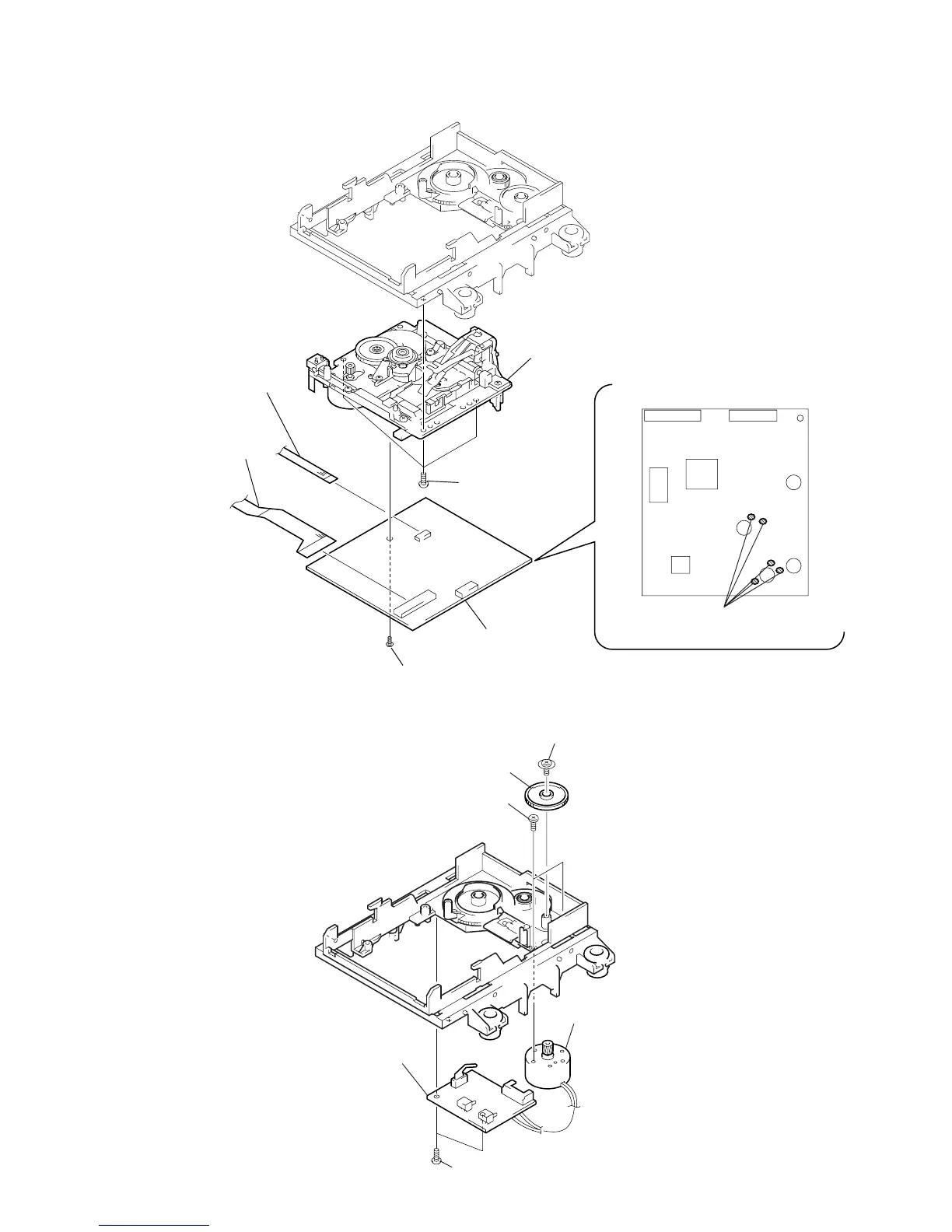

3-7. BASE UNIT (MBU-5A) AND BD (MD) BOARD
3-8. SW BOARD AND LOADING MOTOR (M103)
1 Three screws
(BTP2.6x6)
2 Base unit (MBU-5A)
3 Remove the solder (Five portion)
4 Screw (M1.7x4)
6 Flexible board
(CN101)
7 BD (MD) board
5 Flexible board
(CN104)
5 Two screws (BTP2.6x6)
6 SW board
4 Loading motor (M103)
3 Two screws
(PWH1.7x3)
1 Screw (PTPWH M2.6x6)
2 Gear B
