– 128 –

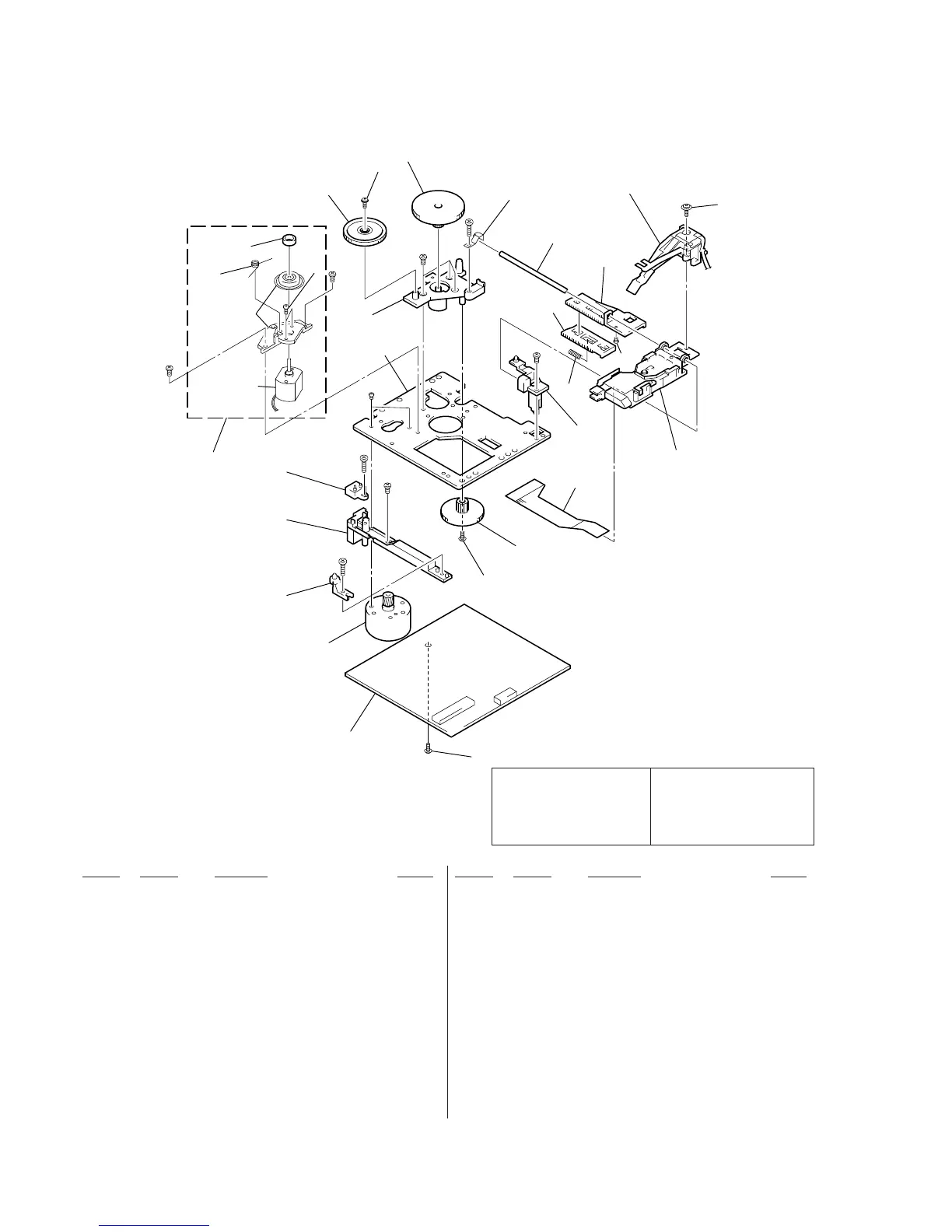

9-10. MD MECHANISM SECTION-2 (MDM-5A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
551 A-4699-893-A BD (MD) BOARD, COMPLETE
552 3-372-761-01 SCREW (M1.7), TAPPING
* 553 4-996-267-01 BASE (BU-D)
* 554 4-996-255-01 BASE (BU-C)
555 4-900-590-01 SCREW, PRECISION SMALL
556 4-996-258-01 SPRING, COMPRESSION
557 4-996-262-01 GEAR (SL-C)
* 558 1-667-954-11 FLEXIBLE BOARD
* 559 4-210-664-11 BASE (BU-A)
! 560 8-583-028-01 OPTICAL PICK-UP KMS-260A/K1NP
* 561 4-996-252-01 CHASSIS, BU
* 562 4-996-254-01 BASE (BU-B)
563 4-967-688-11 MAGNET, ABSORPTION
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
564 4-996-260-01 GEAR (SL-A)
565 4-996-261-01 GEAR (SL-B)
566 4-996-264-01 SPRING (SHAFT), LEAF
567 4-996-265-01 SHAFT, MAIN
568 4-996-256-11 SL (BASE)
569 4-996-257-01 RACK (SL)
570 4-996-263-01 SPRING (CLV), TORSION
571 4-988-560-01 SCREW (+P 1.7X6)
572 4-211-036-01 SCREW (1.7X2.5), +PWH
HR901 1-500-502-11 HEAD, OVER WRITE
M101 A-4672-475-A MOTOR ASSY, SPINDLE
M102 A-4672-474-A MOTOR ASSY, SLED
S102 1-762-148-21 SWITCH, PUSH (2 KEY)
not supplied
not supplied
#4
#4
HR901
#4
#4
#4
#4
#5
#5
#6
551
552
552
553
554
S102
M101
552
557
558
559
560
561
562
563
572
570
564
565
566
567
568
569
556
555
571
M102
To Next Page
