– 120 –

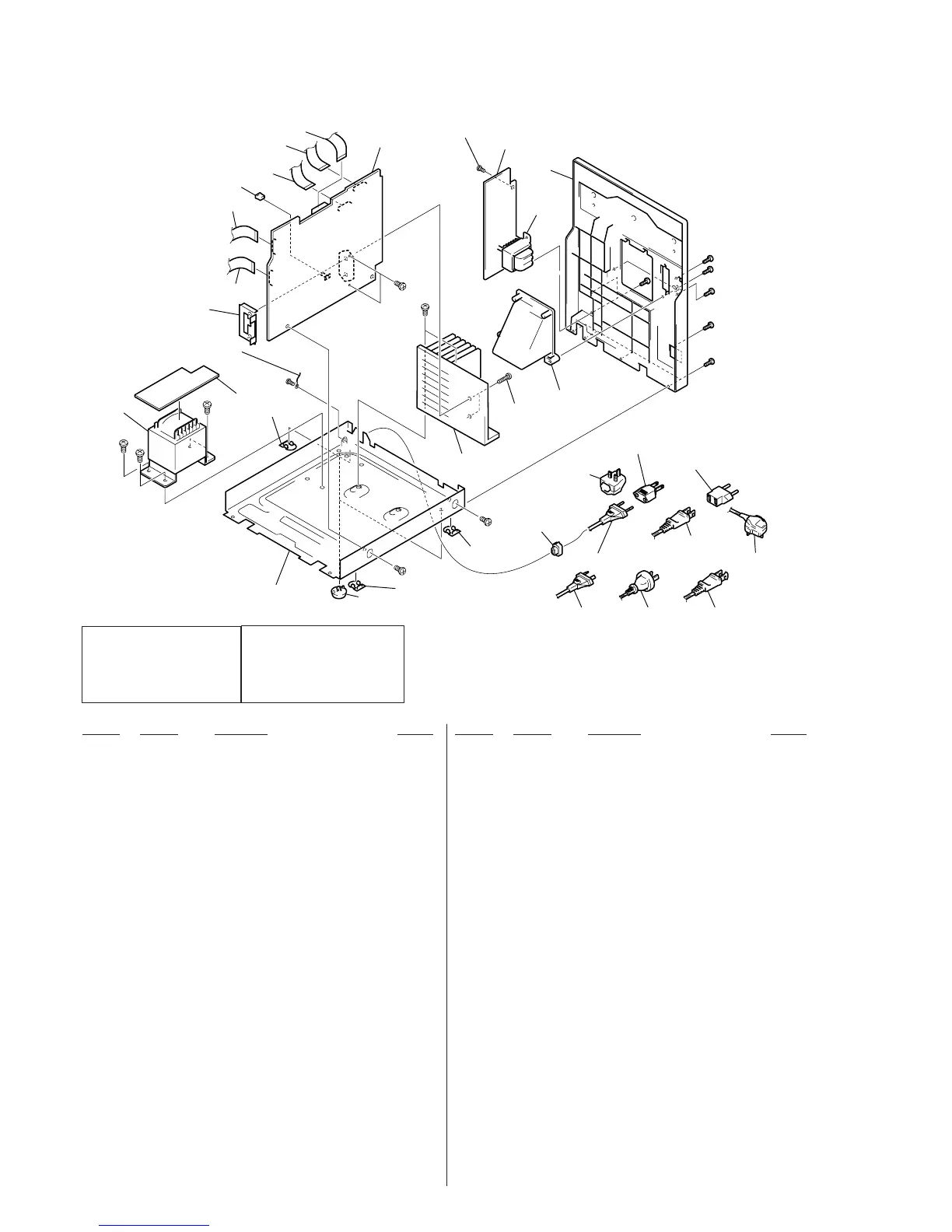

9-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-965-822-01 FOOT
52 1-673-377-11 SECONDARY BOARD
53 A-4405-868-A MAIN BOARD, COMPLETE (AEP,UK,G,CIS)
53 A-4405-869-A MAIN BOARD, COMPLETE (SP,MY,HK)
53 A-4405-871-A MAIN BOARD, COMPLETE (E,AR)
53 A-4405-872-A MAIN BOARD, COMPLETE (AUS)
53 A-4405-873-A MAIN BOARD, COMPLETE (KR)
53 A-4405-875-A MAIN BOARD, COMPLETE (US,CND)
54 1-773-043-11 WIRE (FLAT TYPE) (17 CORE)
55 1-773-025-11 WIRE (FLAT TYPE) (15 CORE) (330mm)
56 1-769-976-11 WIRE (FLAT TYPE) (13 CORE)
(US,CND,E,AR,KR,AUS)
56 1-773-008-11 WIRE (FLAT TYPE) (15 CORE) (140mm)
(AEP,UK,G,CIS,SP,MY,HK)
57 1-773-185-11 WIRE (FLAT TYPE) (23 CORE)
* 58 3-703-244-00 BUSHING (2104), CORD (EXCEPT E)
58 3-703-571-11 BUSHING (S) (4516), CORD (E)
59 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
59 1-569-008-21 ADAPTOR, CONVERSION 2P (SP,MY)
59 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
! 60 1-696-845-11 CORD, POWER (AUS)
! 60 1-769-079-11 CORD, POWER (KR)
! 60 1-777-071-41 CORD, POWER (AEP,G,CIS,SP,MY)
! 60 1-777-514-11 CORD, POWER (UK)
! 60 1-782-315-21 CORD, POWER (E)
!60 1-783-820-21 CORD, POWER (US,CND)
60
(AUS)
60
(US,CND)
60
(AR)
52
66
53
62
64
56
57
67
55
65
54
58
61
#2
#2
T951
T11
not supplied
Including Secondary board
(Ref No. 52)
63
68
not supplied
not supplied
#2
#1
#1
#1
51
66
66
59
(SP,MY)
59
(HK)
59
(E)
60
(AEP,G,CIS,SP,MY,KR)
60
(UK)
60
(E)
#2
#12
#12
#12
#6
#12
#12
#2
! 60 1-783-941-31 CORD, POWER (AR)
61 X-4951-203-1 BACK PANEL ASSY (AEP,UK,G,CIS)
61 X-4951-205-1 BACK PANEL ASSY (E,SP,MY,HK,AR)
61 X-4951-207-1 BACK PANEL ASSY (US,CND,KR,AUS)
62 A-4419-327-A STANDBY BOARD, COMPLETE (AEP,UK,G,CIS)
62 A-4419-328-A STANDBY BOARD, COMPLETE (E,SP,MY,HK,AR)
62 A-4419-329-A STANDBY BOARD, COMPLETE (US,CND)
62 A-4419-330-A STANDBY BOARD, COMPLETE (AUS)
62 A-4419-651-A STANDBY BOARD, COMPLETE (KR)
63 4-216-856-01 DUCT
64 4-951-620-01 SCREW (2.6X8), +BVTP
65 1-569-972-21 SOCKET, SHORT 2P
66 4-216-857-01 COVER (LIZ)
67 1-783-570-11 WIRE (FLAT TYPE)(19 CORE)
68 4-221-078-01 SCREW +BSW 3X20 (S)
!T11 1-433-832-11 TRANSFORMER, POWER
(E,SP,MY,HK,AR,KR,AUS)
!T11 1-433-833-11 TRANSFORMER, POWER (AEP,UK,G,CIS)
!T11 1-433-835-11 TRANSFORMER, POWER (US,CND)
!T951 1-433-790-11 TRANSFORMER, POWER (CND)
!T951 1-433-791-11 TRANSFORMER, POWER (AEP,UK,G,CIS)
!T951 1-433-792-11 TRANSFORMER, POWER (US)
!T951 1-433-793-11 TRANSFORMER, POWER (KR)
!T951 1-433-794-11 TRANSFORMER, POWER (E,SP,MY,HK,AR,AUS)
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
